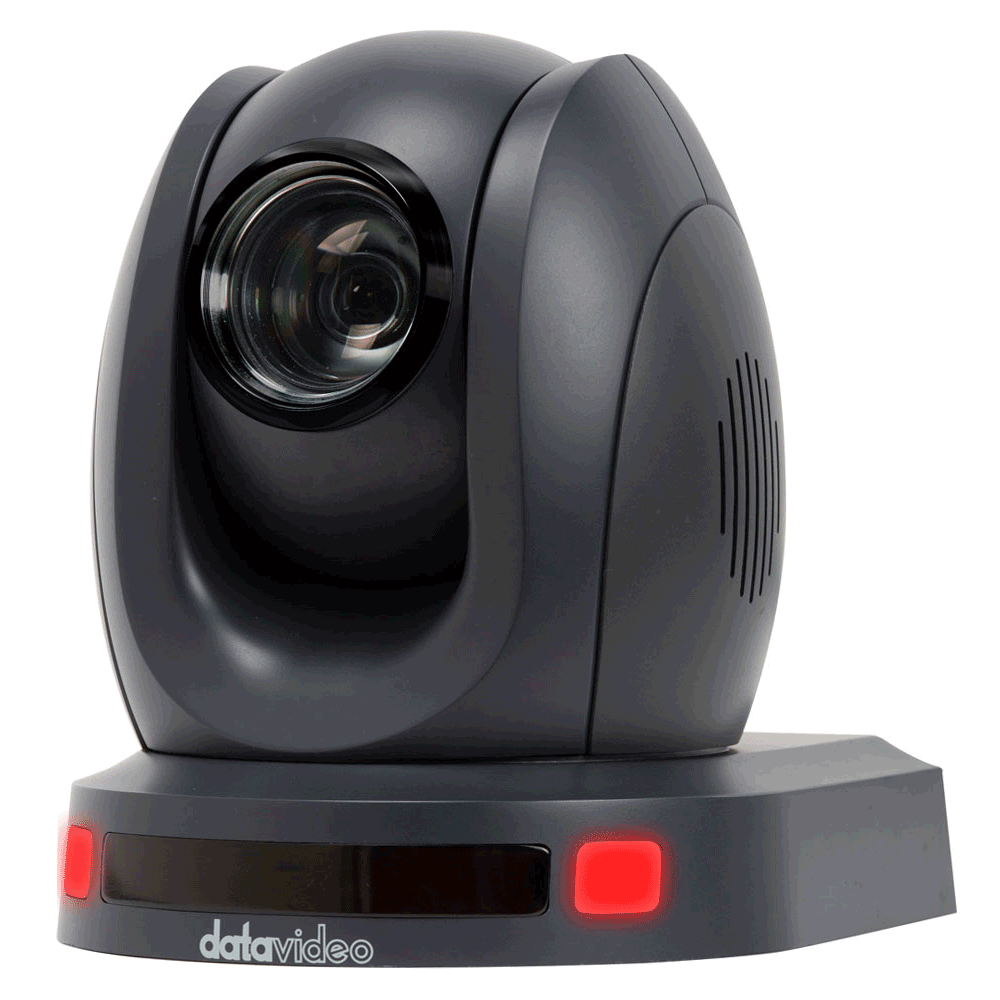

Datavideo PTC-140 HD PTZ Camera

Datavideo PTC-140 je HD/SD instalačná kamera s HD-SDI a HDMI výstupom, 20x optickým zoomom a zabudovaným streamovacím enkodérom.

Více informací

38 092 Kč s DPH 31 481 Kč bez DPH
7-14 dní
Doprava zdarma při nákupu tohoto produktu
Kód zboží:
Přidat do porovnání
Popis produktu

Popis produktu

Datavideo PTC-140 je HD/SD instalačná kamera s HD-SDI a HDMI výstupom, 20x optickým zoomom a zabudovaným streamovacím enkodérom.

Product Overview
The PTC-140 is a low-cost SDI/HDMI PTZ camera featuring 20x optical zoom and 10x digital zoom.
The PTC-140 is also an IP camera supporting H.264 /H.265 video compression and dual stream outputs.

  • Features
    1/2.8 inch CMOS sensor. Resolution is up to 1920x1080 with frame rate up to 60fps.
  • Low Noise CMOS effectively ensures high SNR of camera video. Advanced
    2D/3D noise reduction technology is also used to further reduce the noise,
    while ensuring image sharpness.
  • Audio Input Interface
  • Supports AAC, MP3 and PCM audio coding with sampling frequencies of
    16000, 32000, 44100 and 48000.
  • Supports H.264/H.265 video compressions of resolution up to 1920x1080
    with frame rate up to 60fps as well as AAC, MP3 and PCM audio
  • Supports multiple network protocols such as RTSP and RTMP allowing you to
    easily link to any streaming media servers.
PTC-140 HD PTZ Camera
Video format

1080p 60/59.94/50/30/29.97/25
1080i 60/59.94/50
720p 60/59.94/50

Image Sensor

1/2.8 inch high quality HD CMOS sensor

Effective Pixels (approx.)

2.07 Mega pixels

S/N Ratio


Min. Illumination

0.5Lux (F1.8, AGC ON)

Electronic Shutter

Auto / Manual

Zoom Ratio

20x Optical Zoom, 10x Digital Zoom

Gamma Control

Off / Normal

Iris Control

Auto / Manual

Digital Noise Reductions


On-Screen Display (OSD)

English, Simplified Chinese

White Balance

Auto, Manual, One Push, 3000K, 4000K, 5000K, 6500K

AGC / Gain Control

Auto / Manual

Mirror / Flip Image


Focus Mode

Auto / Manual

Panning / Tilting Range

Pan: 340° , Tilt: +90° to -30°

Panning / Tilting Speed

Pan: 0.1~60°/sec
Tilt: 0.1~30°/sec


255 Position

Focal Length

f=5.2 (wide) to 98 (tele) mm
F1.6 to F3.5

Field of View (Horizontal, Wide)

Approx. 54.7° (WIDE END) / 3.3° (TELE END)

Image Compensation

Backlight Compensation

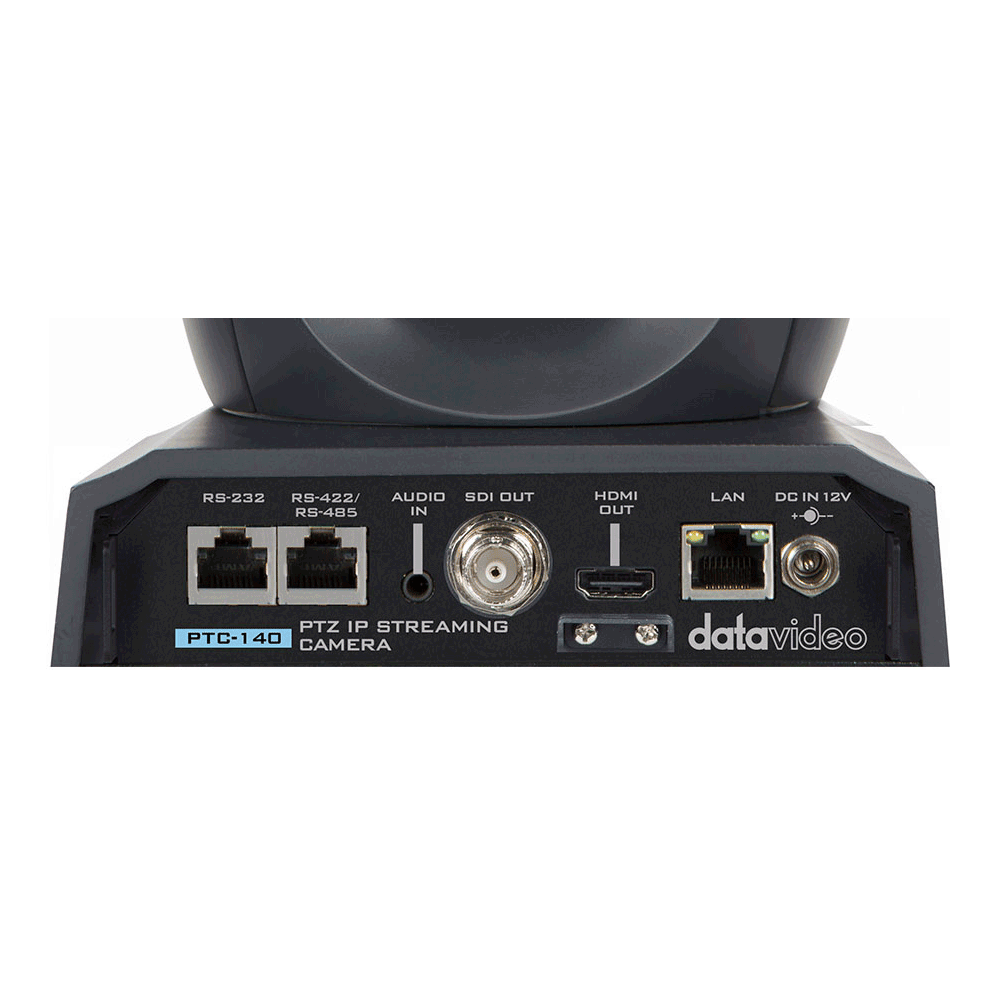

Video Output

HDMI x 1
SDI x 1

Audio Input

3.5mm Line in

Tally LED

Dual color (Red, Green)


M52.0 x 0.75 Thread with UV Protection


VISCA/Pelco-D/Pelco-P; Baud Rate:115200/38400/9600/4800/2400bps

Remote Control Interface and Transmit Distance

RJ-45: for IP control (DVIP)
RS-232: Mini DIN 8-pin (IN) Mini DIN 8-pin (OUT)

Video Compression Format

H.264, H.265, Dual stream output

Audio Compression Format

AAC/MP3/PCM Audio compression

HD IP Interface

100M IP port(100BASE-TX); Support DVIP

Network Protocol


F/W Update


IR Control


Camera Control Unit


Tripod Mount

1/4-20 UNC





Dimension (LxWxH)

156 x 182 x 186 mm


1.6 kg

Operating Temp. Range

0~40 °C


DC 12V 12W

What's in the Box

1 x PTC-140 Unit
1 x IR remote controller
1 x PTC-140 Thank You Card
1 x Ceiling mount bracket-A
1 x Ceiling mount bracket -B
6 x Ceiling mount bracket screw M3*4mm
1 x UV Filter
1 x DC 12V Power Adaptor
1 x Power Cord
1 x A tightrope
1 x RS-232 DB9 9 Pin to 8 Pin Mini DIN Cable
1 x RS-485 2 Pin Connector



Výrobce: Datavideo
Kategorie: PTZ

Hlavní parametry

Velikost snímače1/2,8"
RozlišeníFull HD
Výstup3G SDI

Ostatní parametry

Formát záznamuH.265
Formát záznamuH.264
