Sony UTX-B40

Ľahký a kompaktný bodypack vysielač sa dodáva spolu s klopovým mikrofónom s guľovou charakteristikou. Vysielač UTX-B03 vysiela na pásme UHF. Je ideálny pre spravodajské účely, robenie rozhovorov, talkshow a konferencií.

Více informací

9 347 Kč s DPH 7 725 Kč bez DPH
Na cestě 2 ks
Popis produktu

Popis produktu

Ľahký a kompaktný bodypack vysielač sa dodáva spolu s klopovým mikrofónom s guľovou charakteristikou. Vysielač UTX-B03 vysiela na pásme UHF. Je ideálny pre spravodajské účely, robenie rozhovorov, talkshow a konferencií.

  • High quality sound with Sony digital audio processing
  •  NFC SYNC function for quick and easy secure channel setting (IR sync capability with URX-P03, URX-P03D, and URX-S03D receivers)
  •  Auto gain mode volume control
  •  +15 dB gain volume boost mode for off-mic audio
  •  Line input
  •  Transmitter frequency sent to receiver for matching multiple receivers to one transmitter
  •  Variable muting function
  •  Compatibility with Sony WL-800/UWP/UWP-D series
  •  High visibility OLED display, ideal for indoor/outdoor use
  •  USB connector for power supply
  •  Includes ECM-V1BMP lavalier microphone

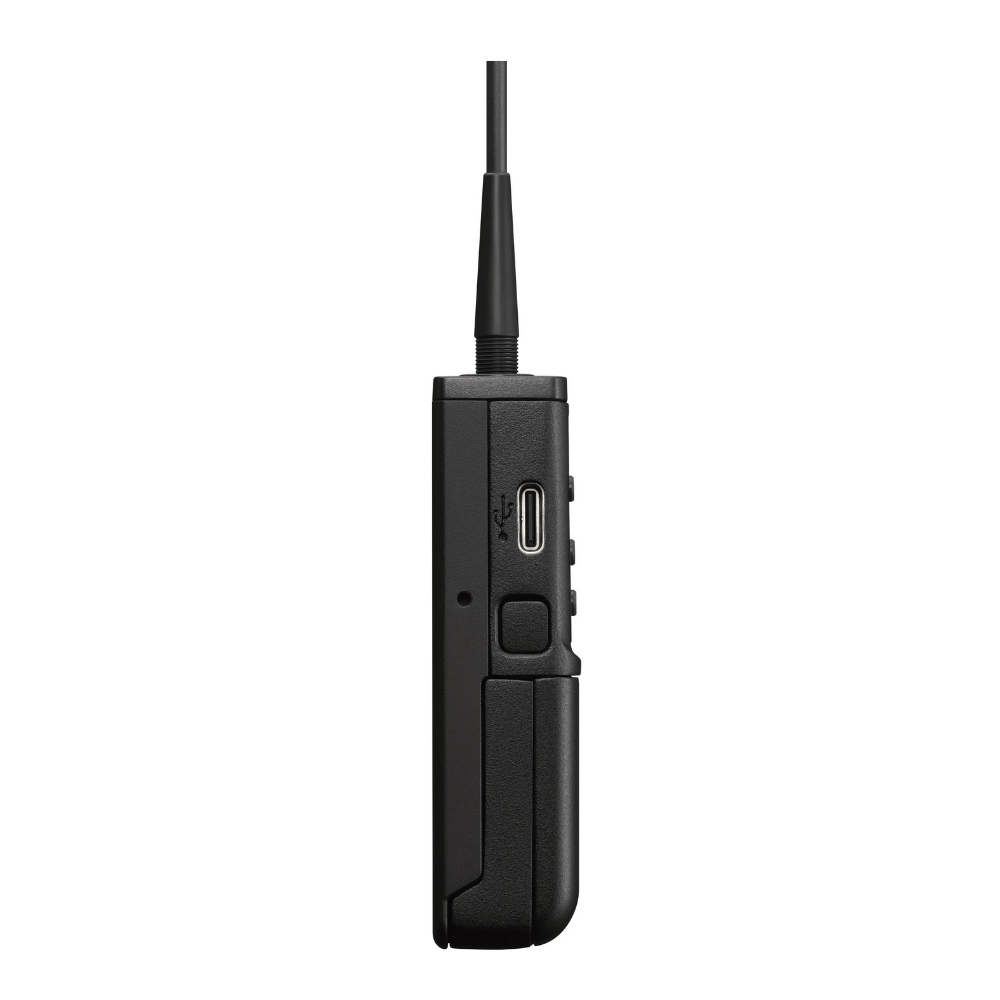

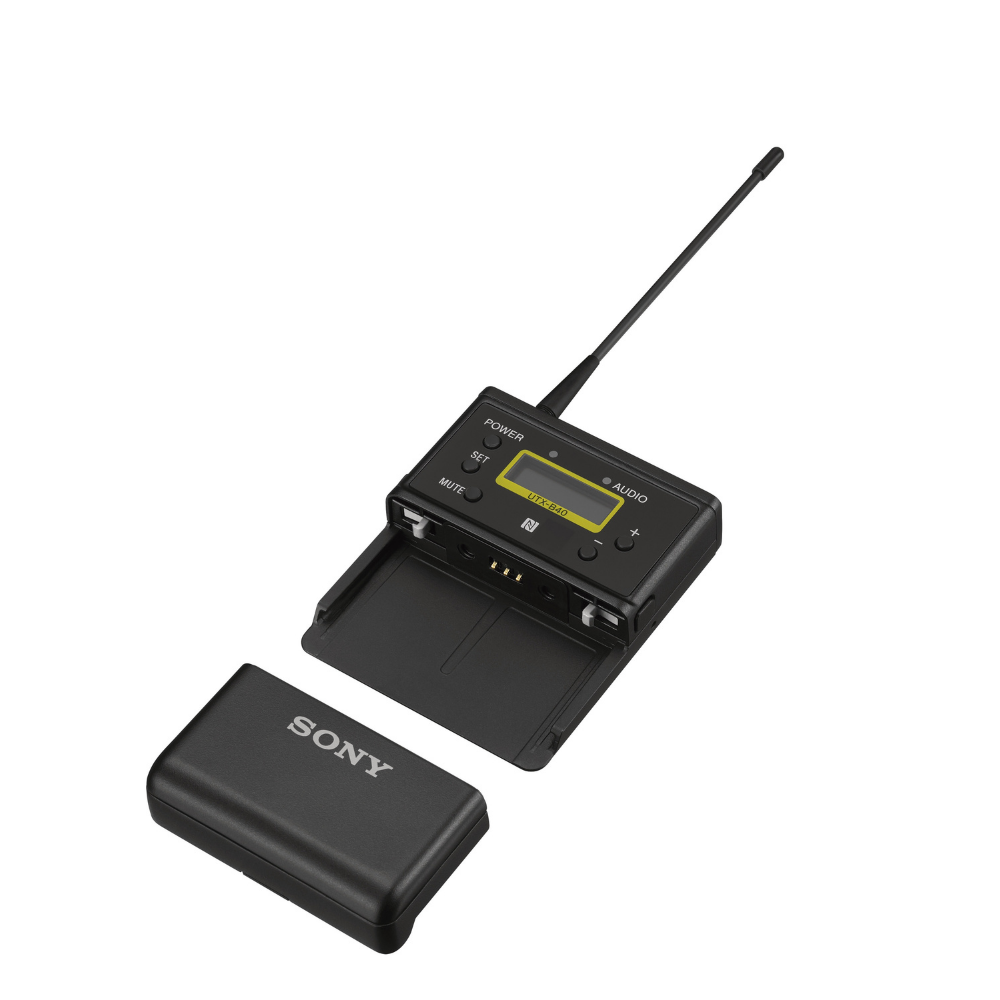

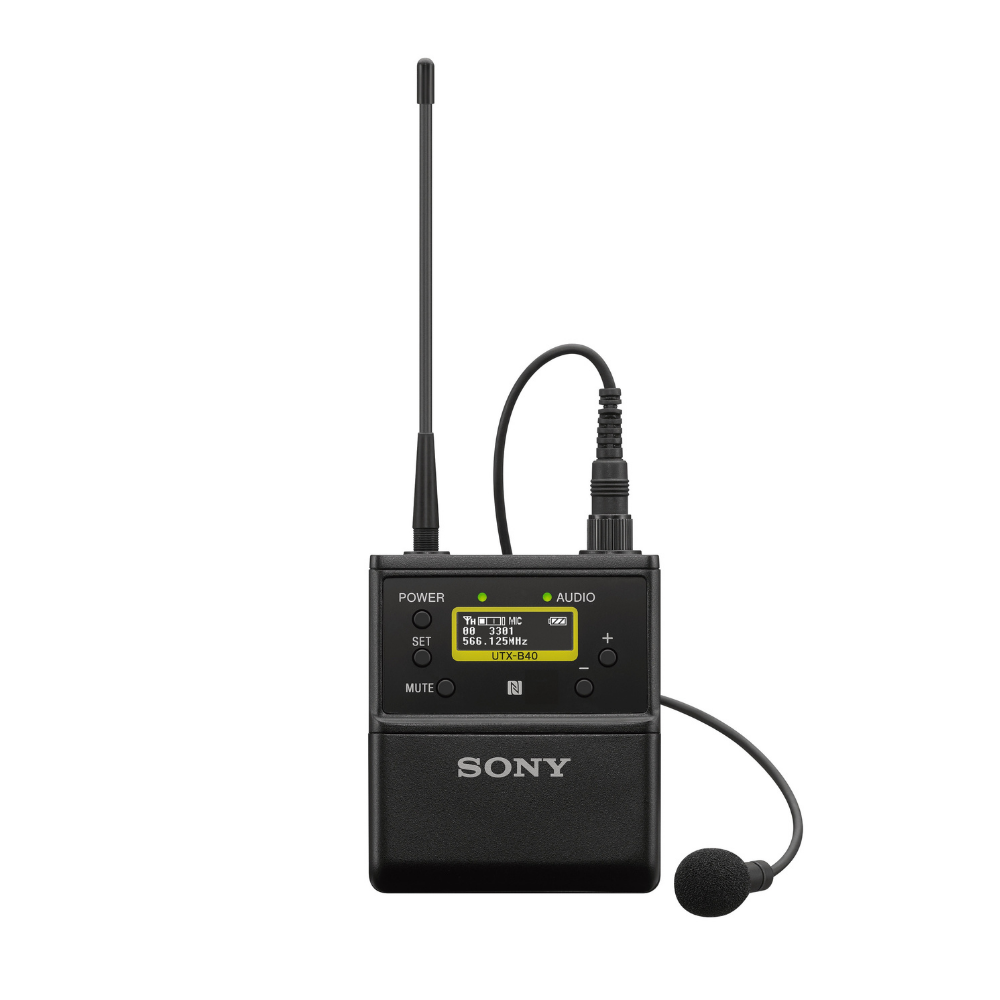

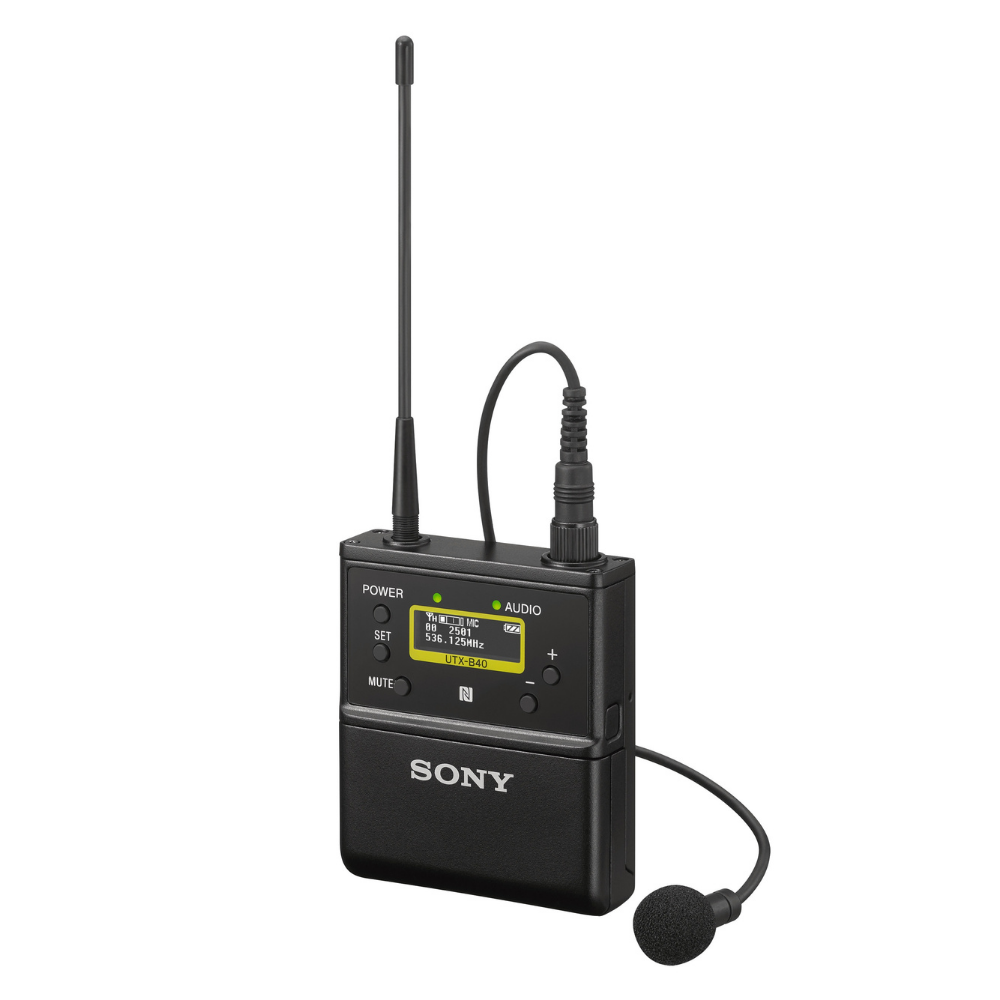

The Sony UTX-B40 is a wireless bodypack transmitter compatible with the URX-P40 camera-mount receiver. Compact and lightweight, with a robust, all-metal construction, this bodypack is well suited for tough operating conditions, while remaining comfortable for the talent to wear. It provides up to 8 hours of operation on two AA batteries, with a selectable 5/30mW RF power output and a transmission range up to 330'.

The UTX-B40 comes with an ECM-V1BMP omnidirectional lavalier microphone optimized for speech. The transmitter has a locking, 3.5mm BMP-type microphone input connector with an adjustable input level to accommodate other compatible lavalier or headset microphones of your choice. The transmitter offers a 72 MHz bandwidth with 2772 selectable UHF frequencies.

The UTX-B40 is backward-compatible with Sony WL-800 and UWP Series systems.

High-Quality Sound with Digital Audio Processing

Unlike traditional analog wireless systems, the UWP-D supplements its proven analog UHF transmission technology with a proprietary digital audio processing. Transient sounds and consonants are reproduced with greater accuracy, resulting in clear, natural sound that’s intelligible and nuanced.

The ECM-V1BMP lavalier mic is optimized for capturing clear and intelligible speech. This omnidirectional mic picks up sound from every direction, allowing for a variety of placement options and freedom of movement.

Automatic NFC Sync Mode

Press and hold the NFC/Sync button on the receiver and it scans for the cleanest RF channel. Simply hold the transmitter next to the receiver; it automatically syncs up and you're good to go!

Unlike purely digital systems, the UTX-B40 allows you to send a single mic to multiple cameras for broadcast applications. Fast NFC communication makes setup for multiple receivers a breeze.

Auto-Gain Mode to Prevent Mic Distortion

Auto-Gain mode saves you the time and aggravation of setting and managing the input level on the transmitter. It uses a limiter to help prevent distortion, great when the loudness of the presenter’s voice is unknown.

The +15 dB Gain Volume-Boost mode boosts the mic gain by 15 dB to compensate for situations when the mic is not close enough to the presenter’s mouth and the audio level is insufficient.

Manual input-level setting is also available.

High-Visibility OLED Display for Indoor/Outdoor Use

The unit features an easy-to-read OLED display. The quick response of the display lets you see the operating conditions clearly and accurately in real time, even in bright sunlight.

DSP Filter Removes Occupancy Sensors Artifacts

Two levels of DSP filtering help remove the artifacts caused by occupancy sensors used in modern "green" buildings to turn off lights when people leave a room.

Multiple Powering Options

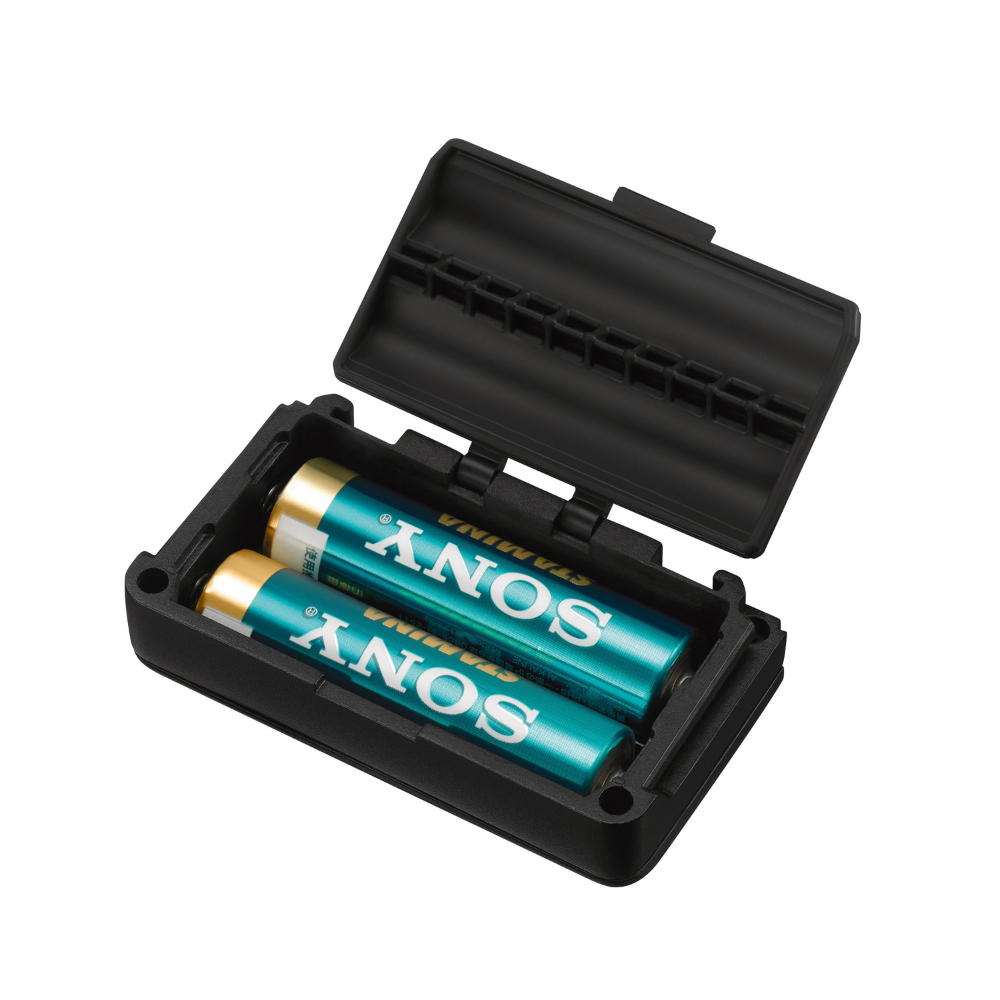

Two AA batteries (alkaline or NiMH rechargeable type) power the transmitter for up to 8 hours.

The unit can also be powered through its USB port, allowing it to run for numerous hours on a USB power pack or indefinitely, if you have access to AC.

A battery count-up timer allows for accurate reading of battery running time to minute accuracy.

Other Features

  • Switchable Mic/Line input level so you can set the correct gain level for your sound source.
  • Low-cut filter reduces noise caused by wind or machinery—Off / Low (100 Hz) / Mid (150 Hz) / High (200 Hz).
  • Simple menus make navigation easy. Advanced menus for in-depth control are also available.
  • The variable mute button on the transmitter can be programmed for latched or momentary muting. It can also be used as a momentary talk button.
  • You can operate up to 16 mics in one location.

Compatibility with Other Sony Wireless Systems

The UWP-D transmitter can be used with a UWP Series or WL-800 Series receiver. A UWP Series or WL-800 Series transmitter can be used with a UWP-D receiver.


  • Sony UTX-B40 Wireless Bodypack Transmitter with Omni Lavalier Mic
  • Sony ECM-V1BMP Electret Condenser Lavalier Microphone for UWP Transmitters
  • Windscreen
  • Mic Clip
  • Belt Clip


Oscillator Type
Crystal-controlled PLL synthesizer

Antenna Type
1/4 ? wavelength wire antenna

Carrier Frequencies
21CE : 470.025 MHz to 542.000 MHz(UHF-TV channels 21 to 29)
33CE : 566.025 MHz to 630.000 MHz(UHF-TV channels 33 to 40)
42CE : 638.025 MHz to 694.000 MHz (UHF-TV channels 42 to 48)

RF Output Power
30 mW/5 mW selectable (UC, U, CE, LA, CN models)
10 mW/2 mW selectable (J, E, KR models)

Capsule Type
Electret condenser


Input Connector
3.5mm diameter 3-pole locking mini jack

Reference Audio Input Level
–60 dBV (MIC input, GAIN MODE set to NORMAL, 0 dB attenuation)
+4 dBu (LINE input)

Audio Attenuator Adjustment Range
0 dB to 27 dB (3dB steps)

Frequency Response
23 Hz to 18 kHz (Typical) (UC, U, CE, LA, CN, E, KR models)
40 Hz to 15 kHz (Typical) (J model)

Signal-to-Noise Ratio
60 dB (–60 dBV, 1 kHz input)
102 dB (GAIN MODE set to AUTO GAIN, max.)
96 dB (GAIN MODE set to NORMAL, max.)

0.9% or less (–60 dBV, 1 kHz input)

Audio Delay
Approx. 0.35 ms

Tone Signal Frequency
In UWP-D compander mode: 32.382 kHz
In UWP compander mode: 32 kHz
In WL800 compander mode: 32.768 kHz


Power Requirements
DC 3.0 V (two LR6/AA size alkaline batteries)
DC 5.0 V (supplied from USB Type-C connector)

Battery life*
Approx. 8 hours with output power of 30 mW (UC, U, CE, LA, CN models)
Approx. 10 hours with output power of 10 mW (J, E, KR models)
*Battery life has been measured with two Sony LR6/AA size alkaline batteries at 25 °C (77 °F).

Operating Temperature
0 °C to 50 °C (32 °F to 122 °F)

Storage/Transport Temperature
–20 °C to +55 °C (–4 °F to +131 °F)

63 × 73 × 19 mm (2 1/2 × 2 7/8 × 3/4 in.) (W / H / D) (excluding antenna)

Approx. 83 g (2.9 oz) (excluding batteries)
