Nová Hybrid Digital Processing UWP-D séria bezdrôtových mikroportov od spoločnosti Sony priniesla dokonalé riešenie pre spravodajstvo, outdoorové akcie a majiteľov DSLR v kompaktnom a profesionálnom prevedení. Prijímač Sony URX-P03 je kompatibilný s vysielačmi rady UWP a UWP-D.Uvádzaná vzdialenosť j

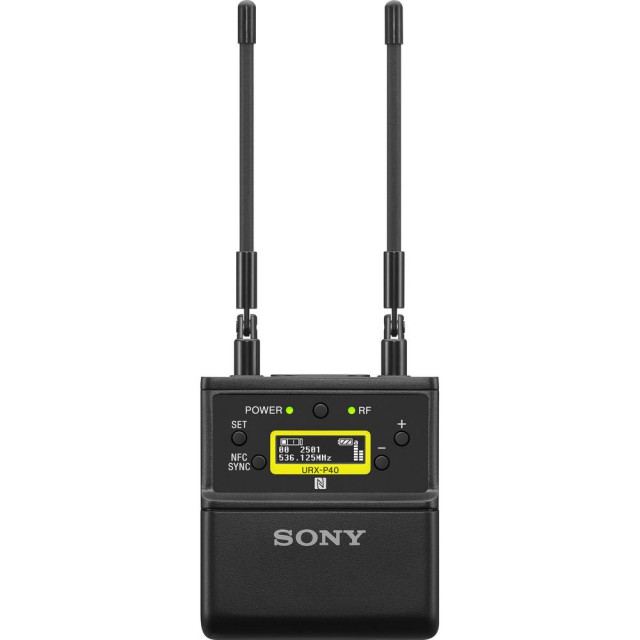

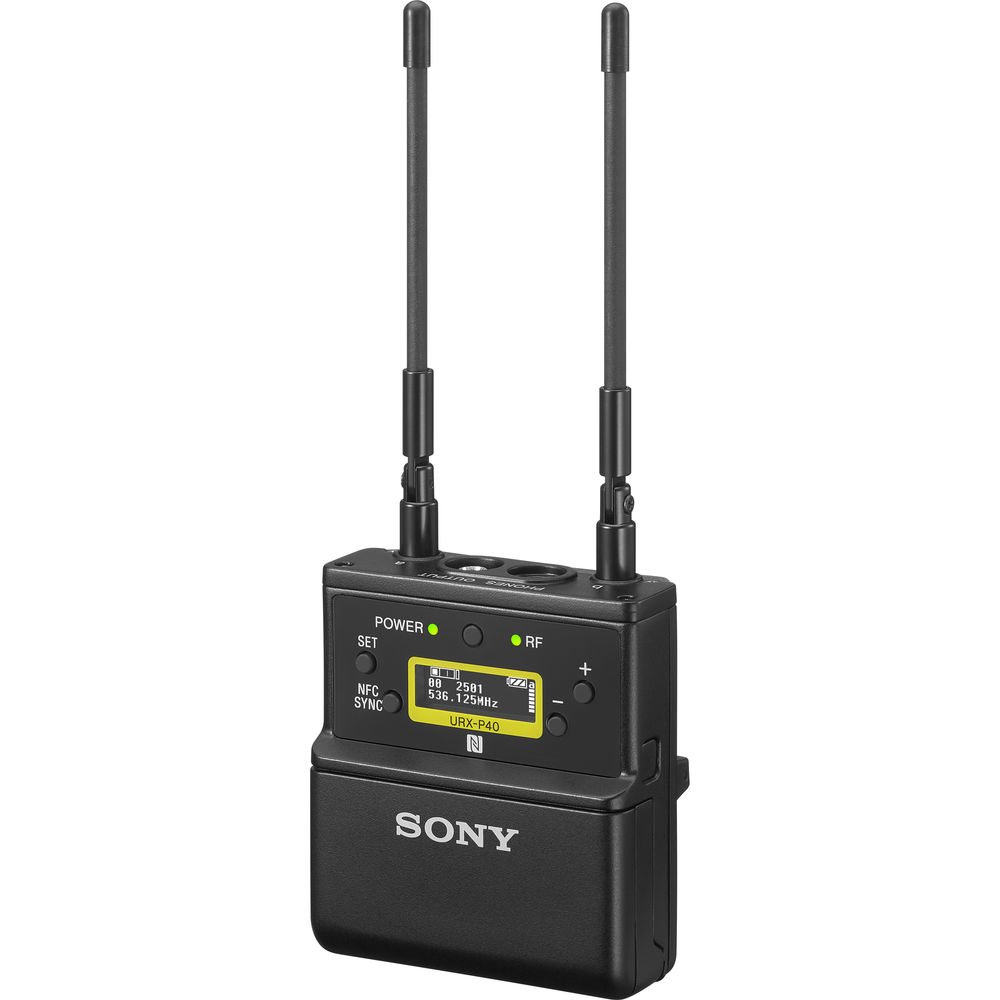

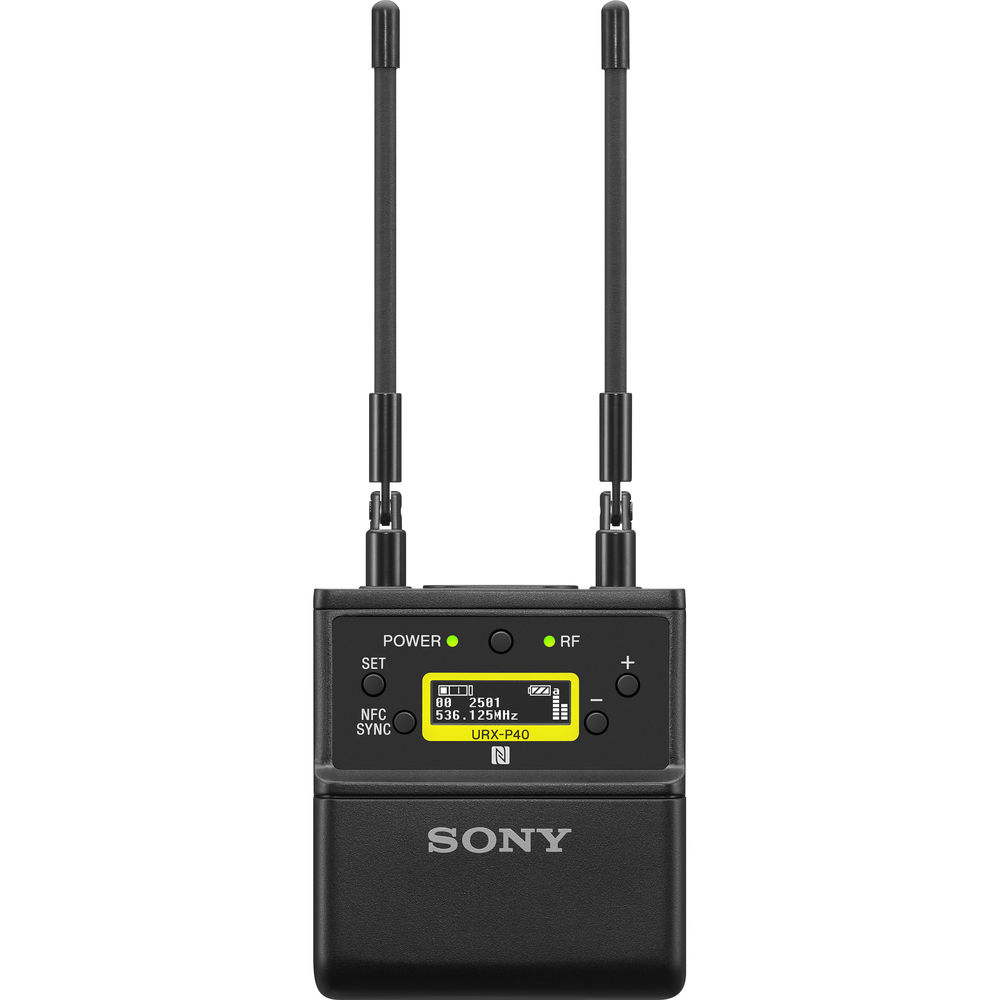

he Sony URX-P40 is a camera-mount wireless receiver that delivers uncompromising audio quality while still being easy to use and fast to set up with no menu diving. It is made with simplicity in mind for DIY cameramen, videographers, vloggers, and journalists working in the field without a crew. The receiver is packed with professional features including NFC Sync and Channel Memory functions, which handle time-consuming setup and adjustments for you, so you're ready to shoot within seconds.
The URX-P40 offers digital signal processing for pristine audio and analog UHF transmission with true-diversity reception for reliability, even under difficult shooting conditions. This low-profile camera-mount receiver is designed for enhanced mobility with compact camcorders and smaller DSLR/mirrorless cameras.
Sony shooters can take advantage of the SMAD-P5 digital MI Shoe adapter (available separately), which provides a direct, clean digital audio connection to select cameras equipped with a digital Multi Interface Shoe.
The URX-P40 is backward-compatible with Sony WL-800 and UWP Series systems.
To achieve stable audio, the UWP-D receiver employs true-diversity technology with two antennas and two independent receiver sections within the unit. Both RF signals are compared and the stronger signal is automatically selected for output—reducing dropouts to a minimum.
The angle of the two antennas can also be adjusted, which helps to further prevent signal dropouts.
The system offers a 72 MHz bandwidth with 2772 UHF frequencies.
NFC Automatic Channel-Setting Mode
Press and hold the NFC/Sync button, and the receiver scans for the cleanest RF channel. Simply hold the transmitter next to the receiver; it automatically syncs up and you’re good to go!
Unlike purely digital systems, the URX-P40 allows you to send a single mic to multiple cameras for broadcast applications. Fast NFC communication makes setup for multiple receivers a breeze.
High-Visibility OLED Display for Indoor/Outdoor Use
Both transmitter and receiver feature an easy-to-read OLED display. The quick response of the display lets you see the operating conditions clearly and accurately in real time, even in bright sunlight.
Channel Memory Function
The channel memory function lets you quickly switch between the groom’s lav mic and the wedding guest’s interview mic with the press of a button. It also allows for a fast change between mics in corporate presentations or quickly swapping to a back-up mic.
Unlike traditional analog wireless systems, the UWP-D supplements its proven analog UHF transmission technology with a proprietary digital audio processing. Transient sounds and consonants are reproduced with greater accuracy, resulting in clear, natural sound that’s intelligible and nuanced.
The URX-P40 features a robust, all-metal construction well suited for tough operating conditions.
Using the included shoemount adapter, the receiver easily mounts on your camera, while adding minimal weight to your rig. Cables are included to connect to cameras equipped with either a 3.5mm or an XLR audio input.
The SMAD-P5 digital MI Shoe adapter allows you to integrate the receiver with XDCAM camcorders and select Sony cameras equipped with a digital Multi Interface Shoe.
Two AA batteries (alkaline or NiMH rechargeable type) power the receiver for up to 6 hours.
A battery count-up timer allows for accurate reading of battery running time to minute accuracy.
The receiver can also be powered through its USB port, allowing it to run for numerous hours on a USB power pack or indefinitely, if you have access to AC.
With the SMAD-P5 Digital MI Shoe adapter, the receiver can get power directly from Sony cameras equipped with an MI Shoe.
Cartridge-type battery case allows for quick battery replacement on set.
If your camera doesn’t have a headphone jack, Phone mode lets you monitor your sound via the receiver’s headphone output while recording.
When the receiver is used as a personal monitoring device by a director or crew on set, Monitor mode lets you adjust the headphone volume on the fly with the +/- buttons.
The URX-P40 can be used with a UWP Series or WL-800 Series transmitter.
Crystal-controlled PLL synthesizer
True diversity method
1/4 ? wavelength wire antenna (angle-adjustable)
21CE : 470.025 MHz to 542.000 MHz(UHF-TV channels 21 to 29)
33CE : 566.025 MHz to 630.000 MHz(UHF-TV channels 33 to 40)
42CE : 638.025 MHz to 694.000 MHz (UHF-TV channels 42 to 48)
23 Hz to 18 kHz (Typical) (UC, U, CE, LA, CN, E, KR models)
40 Hz to 15 kHz (Typical) (J model)
60dB (1kHz sine wave, 5kHz modulation)
0.9% or less (1kHz sine wave, 5kHz modulation)
Approx. 0.35 ms (analog output)
Approx. 0.24 ms (digital output)
Audio Output Connector
3.5mm diameter 3-pole locking mini jack, external connection
Audio Output Level
-60 dBV (3.5mm diameter 3-pole locking mini jack, analog output, 0dB audio output level)
-20 dBFS (external connection, digital output, 0dB audio output level)
-50 dBFS (external connection, analog output, 0dB audio output level)
Analog Audio Output Adjustment Range
-12dB - +12dB (3dB step)
Headphone Output Connector
3.5mm diameter mini jack
Headphone Output Level
Max. 10mW (16-ohm)
Tone Signal Frequency
In UWP-D compander mode: 32.382 kHz
In UWP compander mode: 32 kHz
In WL800 compander mode: 32.768 kHz
DC 3.0 V (two LR6/AA size alkaline batteries)
DC 5.0 V (supplied from USB Type-C connector)
Approx. six hours
*Battery life has been measured with two Sony LR6/AA size alkaline batteries at 25 °C (77 °F) DISPLAY MODE set to AUTO OFF.
0 °C to 50 °C (32 °F to 122 °F)
–20 °C to +55 °C (–4 °F to +131 °F)
63 × 70 × 31 mm (2 1/2 × 2 7/8 × 1 1/4 in.) (W / H / D) (excluding antenna)
Approx. 131 g (4.6 oz) (excluding batteries)
