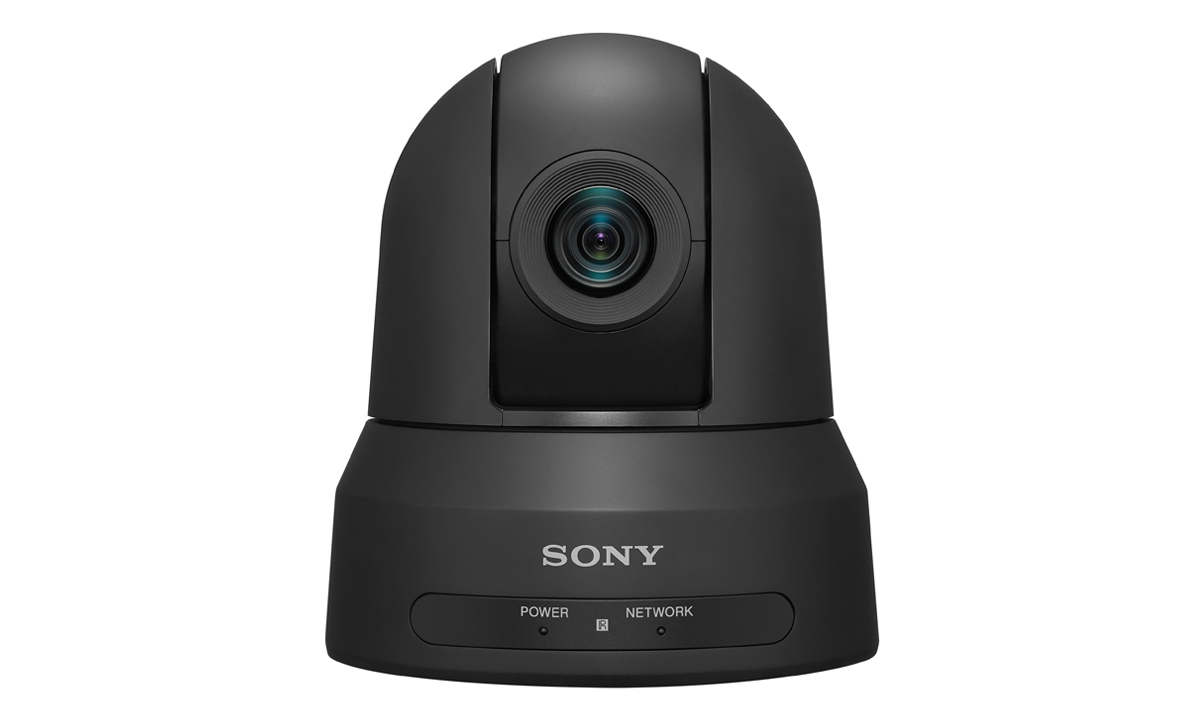

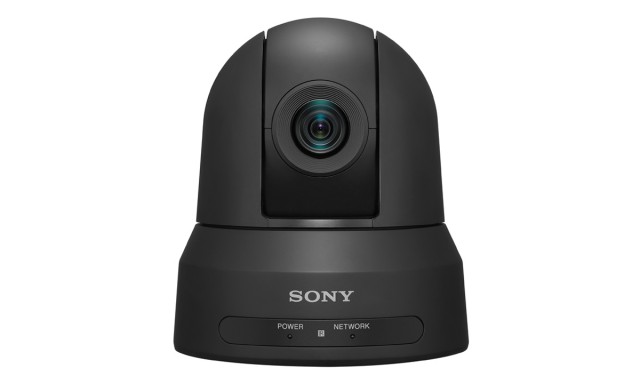

Sony SRG-X400 (Black)

IP 4K PTZ kamera so 40x zoomom a schopnosťou NDI®*|HX výstupu.
Schopnosť kamery pracovať v rozlíšení 4K je podmienené zakúpením licencie SRGL-4K (NIE JE SÚČASŤOU BALENIA).
Schopnosť kamery používať NDI®*|HX výstup je podmienený zakúpením licencie od spoločnosti Newtek (NIE JE SÚČASŤOU BALENIA).

Více informací

71 729 Kč s DPH 59 280 Kč bez DPH
-+
Dostupnost
na dotaz
Popis produktu SPECIFIKACE OBSAH BALENÍ

Popis produktu

IP 4K PTZ kamera so 40x zoomom a schopnosťou NDI®*|HX výstupu.
Schopnosť kamery pracovať v rozlíšení 4K je podmienené zakúpením licencie SRGL-4K (NIE JE SÚČASŤOU BALENIA).
Schopnosť kamery používať NDI®*|HX výstup je podmienený zakúpením licencie od spoločnosti Newtek (NIE JE SÚČASŤOU BALENIA).

Capture every point of view with excellent 4K picture quality and efficient IP production workflow

The versatile SRG-X400 remotely controlled PTZ camera is ideal for a wide range of applications - from classrooms and meeting spaces to houses of worship, lecture halls and medical environments.

The camera's 1/2.5-type Exmor R CMOS sensor captures up to 4K resolution images (requires optional license) with excellent sensitivity, very low noise and rich, natural colour reproduction. It's complemented by the integrated high-resolution lens that offers zoom capability up to 40x in Full HD*** (30x in 4K), with an expansive approx. 70 degree wide angle coverage to capture every point of view.

High speed movement during preset recall captures the speaker's every movement, while Picture Freeze during transitions ensures your audience isn't disturbed by rapid camera movements. PTZ Motion Sync** function allows smooth blending of separate pan, tilt and zoom movements for seamless, professional-looking transition.

Efficient IP-based live production is augmented with support for NDI®|HX (via optional license), allowing flexible configuration with other networked NDI®-enabled devices.

Images also can be reviewing remotely via a web browser, with support for RTSP (Real Time Streaming Protocol) and RTMP** (Real Time Messaging Protocol) ensuring smooth, stable streaming of video plus audio (from an optional microphone, available separately) over an IP network.

* NDI® is a registered trademark of NewTek, Inc.
** Available through future upgrade planned in early 2020.
*** With Clear Image Zoom.

Note 1: This product contains pre-installed software and requires the purchase of licence keys to activate some functions.
Note 2: When using RM-IP500 firmware should be updated to V2.10 and for RM-IP10, firmware should be updated to V2.17.

Excellent images, even in low light
The sensitive 1/2.5-type Exmor R sensor captures high-quality images with very low noise, even in dimly-lit environments.

4K upgrade option
Upgrade to 4K shooting via optional license (availability planned in early 2020).

Up to 40x zoom
Powerful zoom up to 40x (in Full HD) allows finely detailed frame-filling close-ups. Responsive autofocus ensures that images stay clear and sharp, even at high zoom settings.

Wide viewing angle
Cover the whole scene in meetings and lecture theatres with a horizontal viewing angle of approx. 70 degrees.

Ideal for lecture caputure
Use the camera in conjunction with the AI-based REA-C1000 Edge Analytics Appliance to smoothly track the speaker's movements and automatically generate a cut-out image of speaker.

High speed movement and Picture Freeze Preset
Accurately capture the presenter's movements with maximum 300°/sec pan and tilt movement during preset recall. Picture Freeze Preset maintains a steady image while the camera moves to a new preset position – with no uncomfortable transitions for your audience.

Smooth pan-tilt-zoom
PTZ Motion Sync function allows smooth blending of separate pan, tilt and zoom movements for seamless, professional-looking transitions.

Simpler installation, lower costs
A single network cable carries camera power, video output and control signals to simplify installation and reduce cabling costs.

Support for NDI®*|HX
NDI®|HX compatibility (via optional license) enables cost-effictive school studio system integration, allowing flexible configuration with other networked NDI®-enabled devices.

* NDI® is a registered trademark of NewTek, Inc. Network services, content, and the [operating system and] software of this Product may be subject to individual terms and conditions and changed, interrupted or discontinued at any time and may require fees, registration and credit card information.

OBSAH BALENÍ

  • AC power adaptor (1)
  • IR Remote Commander Unit (1)
  • Ceiling bracket (2)
  • Wire rope (1)
  • Screw M3 x 8 (9)
  • Screw M2.6 x6 BLACK (1)
  • HDMI cable fixing plate (1)
  • Safety regulation (1)
  • Download site information (1)
  • Warranty (1)

SPECIFIKACE

Camera

Image Sensor
1/2.5 Exmor R CMOS

Image Sensor (Number of Effective Pixels)
Approx. 8.5M pixels

Signal System
2160 (*1)/29.97p, 25p, 23.98p (HDMI and IP only)
1080/59.94p, 50p, 29.97p, 25p, 23.98p
1080/59.94i, 50i
720/59.94p, 50p

Minimum Illumination (50IRE)
1.6 lux (1/30s 50IRE F2 high-sensitivity OFF)

4K capability
Yes (requires 4K Option license)

Horizontal Resolution
1700 TV line (Center) (4K(*1))
1000 TV line (Center) (FHD)

Gain
Auto/Manual (0 to +48 dB)
High Sensitivity On

Shutter Speed
1/1 to 1/10000 sec (59.94 Hz system)
1/1 to 1/10000 sec (23.98 Hz system)
1/1 to 1/10000 sec (50 Hz system)

Exposure Control
Auto/Manual/Priority AE (Shutter, Iris)

White Balance
Auto1/Auto2/One Push WB/Indoor/Outdoor/Manual

Optical Zoom
20x

Clear Image Zoom
4K (*1): 1.5x, FHD: 2x

Digital Zoom
FHD: 12x

Tele Convert Mode
No

Focusing System
Auto/Manual

Horizontal Viewing Angle
Approx. 70.0 degree (Wide)

Focal Length
f=4.4 mm (Wide) to 88.0 mm (Tele)
F2.0 to F3.8

Minimum Object Distance
80 mm (Wide)~
800 mm (Tele)

Pan/Tilt Angle
Pan: ±170°
Tilt: +90°/-20°

Pan/Tilt Speed (Max.)
Pan: 300 degrees/sec
Tilt: 126 degrees/sec

Pan/Tilt Speed
Pan: 1.1° to 101°/s
Tilt: 1.1° to 91°/s

Pan/Tilt Speed (Slow)
Pan: 0.5° to 60°/s
Tilt: 0.5° to 60°/s

Pan/Tilt Slow Mode
Yes

Preset Position
256 (CGI)
100 (VISCA)

Picture Freeze Preset
Yes

Preset Mode1/Mode2
No

Network

IP Video resolution
3840x2160 (*1), 1920x1080, 1280x720, 720x576, 720x480, 640x360

Compression Format
H.264 High/Main/Baseline Profile
H.265: Main Profile

Maximum Frame Rate
H.264: 60 fps
H.265: 60 fps

Bitrate Compression Mode
CBR/VBR (selectable)

Range of Bitrate Setting
512 Kbps ~50 Mbps

Adaptive Rate Control
No

Multi Streaming Capability
3

Maximum Number of Clients
5

Protocols
IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, DNS, RTP/RTCP, RTSP, UPnP, VISCA over IP

NDI®|HX Capability
Yes Optional (requires a license)

Camera Features

Auto ICR
No

Day/Night
Yes

Wide-D
No

Visibility Enhancer
Yes

Image Stabilization
Yes

Image Flip
Yes

Auto Power Off
No

Night Power Off
No

Picture Profile Preset
No

ND Filter
No

Color Gain
No

Color Hue
No

Color Matrix
No

Gamma
No

Gamma Level
No

Black-> Black level
No

Black Gamma
No

Knee Point
No

Knee Slope
No

Flicker Cancel
On/Off

B&W
No

Color Bar
No

Web UI

Ver Up
Yes

Audio

Channel
2ch

Audio Codec
AAC LC 128 kbps/ST (IP)
AAC LC 256 kbps/ST (IP)

Setting Option
Auto Gain Control (AGC): On/Off
Equalizer: Off/Low Cut/Voice enhancement
Input selection: Microphone/Line
Mic volume: -10~+10 (21 steps)
Audio codec

Embedded Audio in Baseband Video
Yes (3G-SDI, HDMI)

Embedded Audio in IP Streaming
Yes

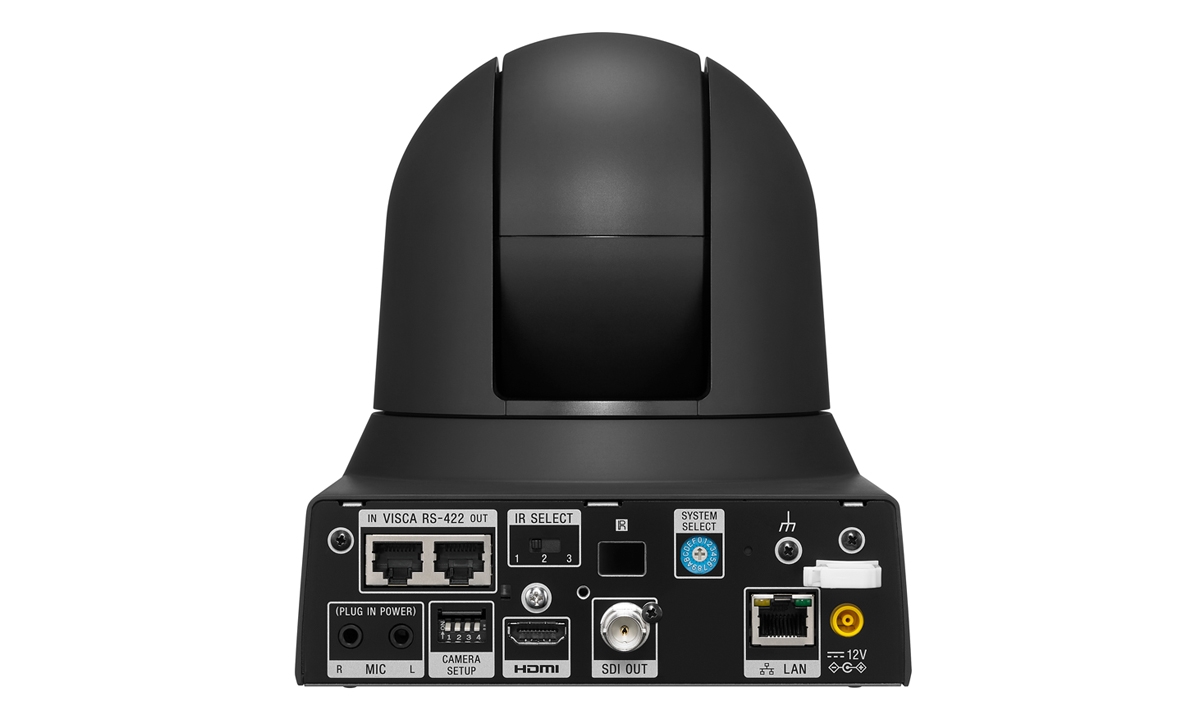

Interface

4K Video Output
(*1) HDMI x1 and IP (streaming) x1

HD Video Output
3G-SDI x1, HDMI x1, IP (streaming) x1

SD Video Output
No

HDMI Color Space
YCbCr, 4:2:2 8 bit
RGB, 4:4:4 8 bit

Camera Control Interface
VISCA RS-422 RJ45 (In/Out)
VISCA over IP RJ-45

IR Remote Control
Yes

Microphone Input
Mini-phone (?3.5mm) x2 (Mic/Line Selectabe)

Sync. System
INT

External Sync. Input
No

Tally
No

Power Connector Type
IEC60130-10 (JEITA standard RC-5320A) TYPE4

General

Power Requirements
DC 12V (DC 10.8 to 13.2V), PoE+ (IEEE802.3at compliant)

Power Consumption
25.5 W (Max)

Operating Temperature
0 °C to 40 °C
32 °F to 104 °F

Storage Temperature
-20 °C to +60 °C
-4 °F to +140 °F

Dimensions (W x H x D)*2
158.4 x 177.5 x 200.2 mm
6 1/4 x 7 x 8 inch

Mass
Approx. 1.8 kg
3 lb 15.5 oz

Optional Card Slots
No

Body Color
White/Black

Wide Conversion Lens Attachable
No

Size of Screw Hole for Tripod
1/4-20UNC x1

Mountable Angle
< ±15°

Ceiling Mount
Yes

Supplied Accessories
AC power adaptor (1)
IR Remote Commander Unit (1)
Ceiling bracket (2)
Wire rope (1)
Screw M3 x 8 (9)
Screw M2.6 x6 BLACK (1)
HDMI cable fixing plate (1)
Safety regulation (1)
Download site information (1)
Warranty (1)

Notes

*1 Will be available from early 2020, after an upgrade, via a 4K Option license
*2 The values for dimensions are approximate



Parametry

Parametry

Výrobce: SONY
Kategorie: PTZ

Hlavní parametry

Velikost snímače kamery1/2.5"
RozlišeníFull HD
RozlišeníHDV (720p)
Zoom20x
Typ bajonetuintegrovaný objektiv
VýstupRTMP

Ostatní parametry

ProvedeníPTZ
Světelnost objektivu2f
Min. ohnisková vzdálenost4.4mm
Max. ohnisková vzdálenost88mm
Barevná hloubka8 bit
Barevná hloubka10 bit
Další funkcePTZ
Další funkceStreaming
Další funkcePoE
Ovládací protokolVISCA
