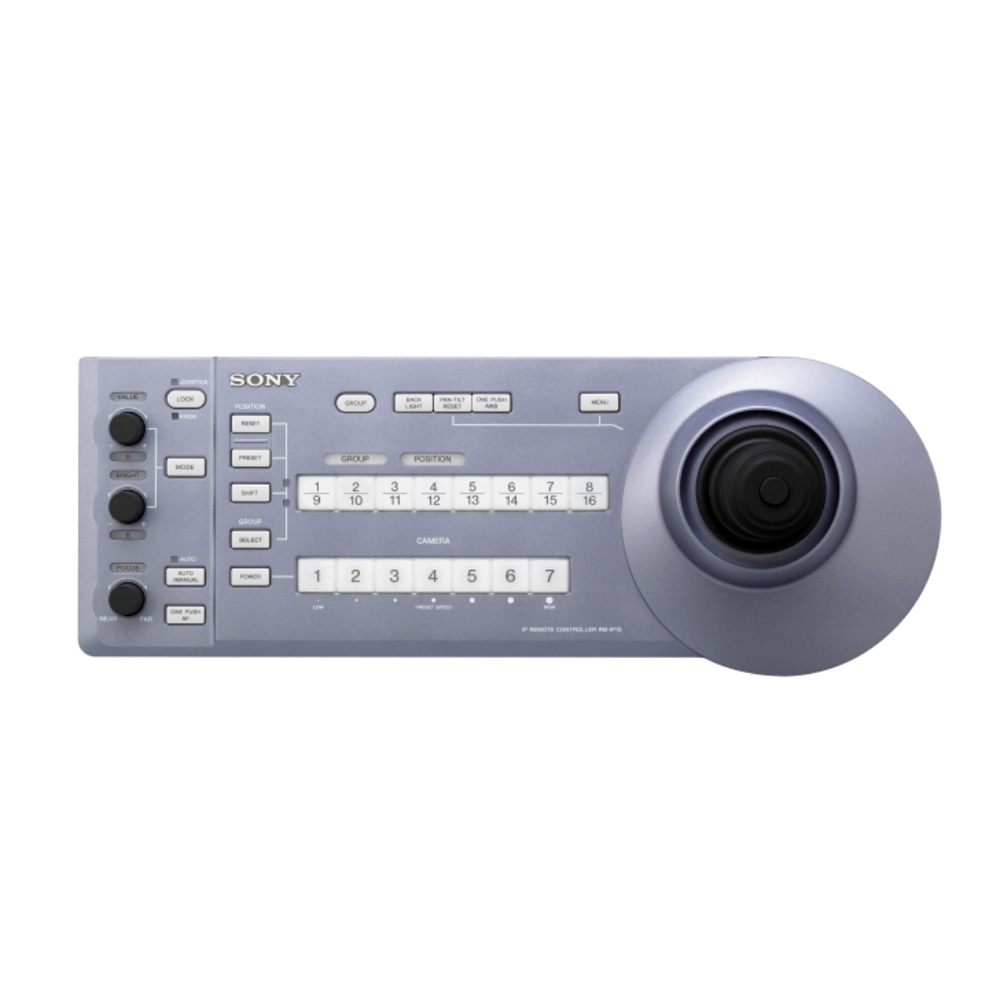

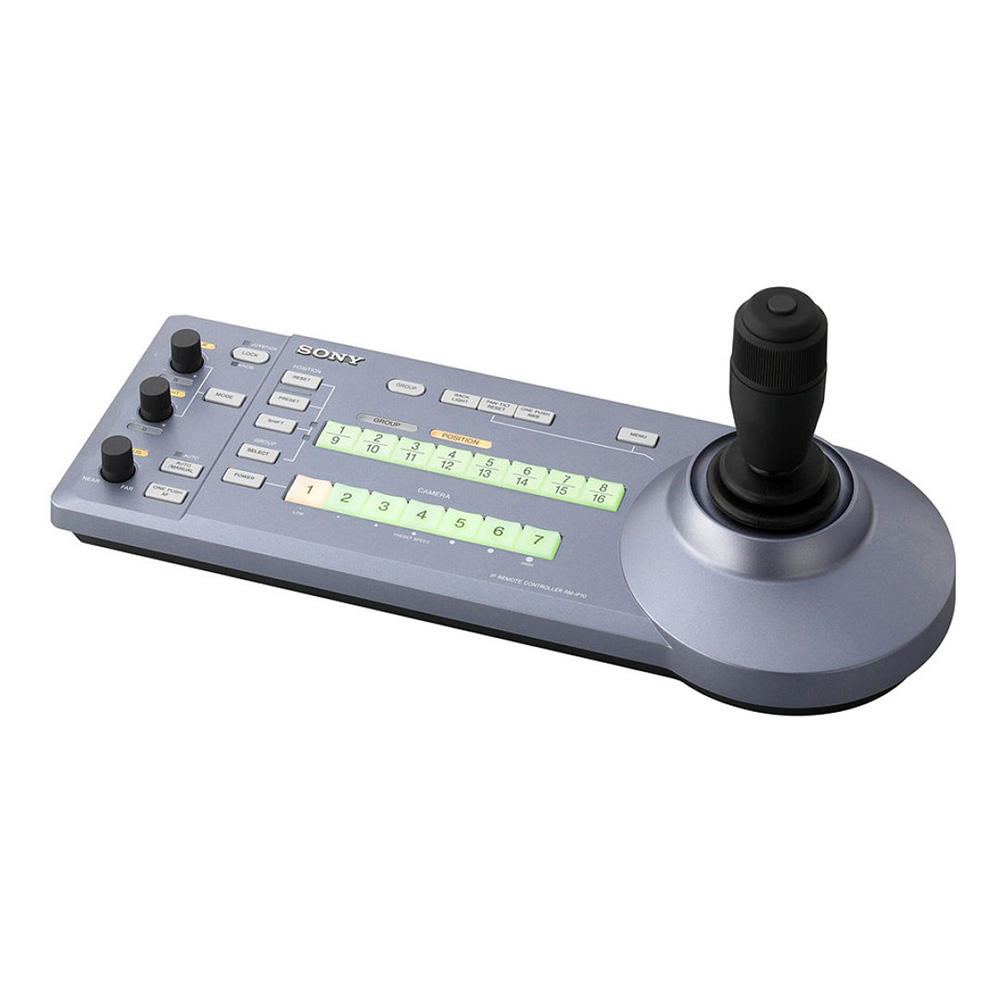

Sony RM-IP10

IP diaľkový ovládač PTZ kamier Sony (modely SRG a BRC).

Více informací

48 098 Kč 36 299 Kč s DPH 29 999 Kč bez DPH
-+
Dostupnost
7-14 dní
Výrobce
Doprava zdarma při nákupu tohoto produktu
Kód zboží:
RM-IP10
Přidat do porovnání
Popis produktu

Popis produktu

IP diaľkový ovládač PTZ kamier Sony (modely SRG a BRC).



Control of up to 112 BRC cameras via an IP network
The RM-IP10 remote control panel gives you control of up to 112 BRC cameras over an IP network, or 7 cameras over a traditional VISCA-controlled network. Up to 5 remote control panels can share control of the system.

Easy to install control for BRC-H900, BRC-Z330 and BRC-Z700 cameras

The RM-IP10 is compatible with Sony's BRC-X400*1, SRG-X400*1, SRG-X120*1, BRC-X401*1,*2, SRG-201M2*1,*2, SRG-HD1M2*1,*2, BRC-H900, BRC-H800, BRC-X1000, SRG-300SE, SRG-300H, SRG-120DU, SRG-120DH and SRG-120DS cameras when they are fitted with the BRBK-IP10 option board, and the BRC-Z700 camera when it is fitted with the BRBK-IP7Z option board. Easy and economical installation and set-up saves you time and cost.

*1 Requires firmware V2.17
*2 Model sold in China only


Control of up to 112 BRC cameras via IP
The RM-IP10 remote control panel gives you control of up to 112 BRC cameras over an IP network.

Additional ability to use VISCA control
The RM-IP10 can also control up to 7 BRC cameras over a traditional VISCA (Video System Control Architecture) network.

Compatible Sony cameras
The RM-IP10 is compatible with Sony‘s BRC-X400, SRG-X400, SRG-X120, BRC-X401*, SRG-201M2*, SRG-HD1M2*, BRC-H900, BRC-H900, BRC-H800, BRC-X1000, SRG-300SE, SRG-300H, SRG-120DU, SRG-120DH and SRG-120DS cameras when they are fitted with the BRBK-IP10 option board, and the BRC-Z700 camera when it is fitted with the BRBK-IP7Z option board.

*Model sold in China only

Simple RJ-45 (10Base-T/100Base-TX) connection for easy connection
The RM-IP10 links to an IP network with via a RJ-45 connector providing very easy, low cost and speedy installation.

PC configuration software supplied
The RM-IP10 provides for convenient configuration of system IPs and BRCs numbers, with location free configuration of anetwork.

Up to 5 controllers can operate on a single network

Up to 5 RM-IP10 control panels can be used on a single network allowing shared control and simultaneous multi-operator control of large camera systems.

Simultaneous Preset recall to all cameras under control
Instantaneous set-up of multiple cameras provides a big time saving for camera adjustments.

Parametry

Parametry

Výrobce: SONY
Kategorie: Ovládací panely
OBSAH BALENÍ

  • Operating Instructions (1)
  • AC Power Adapter (SONY)(1)
  • AC power cord (1)
  • CD-ROM (1)
  • RS-422 connector plug (attached to the unit) (2)

SPECIFIKACE

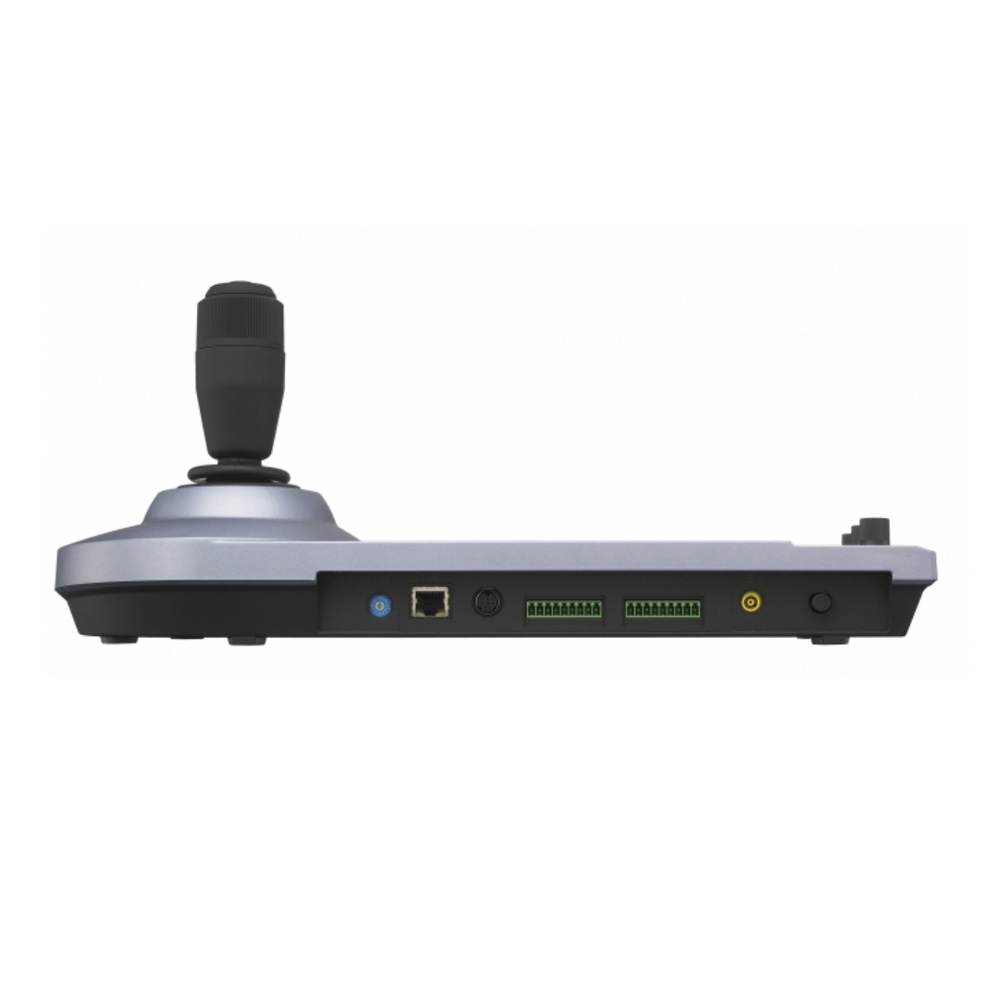

Input/output connectors
Control input/output
VISCA RS-232C OUT Connector : Mini DIN 8pin type
VISCA RS-422 connector: 9-pin type LAN : RJ-45, 10BASE-T/100BASE-TX automatically detected
Tally In/Contact Out: 9-pin type

Control signal format
9,600 bps/38,400 bps (for RS-232C/RS-422 communication)
VISCA over IP communication

Power Connector
JEITA type 4 (DC IN 12V)

General
Input voltage
12V DC (10.8 to 13.2V DC)

Current consumption
0.3A max. (at 12V DC), 3.6W

Operating temperature
0℃ to 40 ℃ (32°F to 104°F )

Storage temperature
-20℃ to 60 ℃ (-4°F to 140°F )

Dimensions (W x H x D)
391.3 mm x 165 mm x 145.9 mm
(15 ½ inches x 6 ½ inches x 5 ¾ inches)

Mass
Approx. 950g (2 lb 15 oz)

User Interface
Display
No

Speed Control
No

Zoom Seesaw Lever
No

Zoom Ring of Joystick
Yes

Zoom Control selectable
Ring of Joystick

ASSIGN button
0

Kensington lock hole
No

Camera Control
Maximum IP Connections
112

Maximum Serial Connections
7

Control Protocol
VISCA over IP/VISCA RS-422/VISCA RS-232C switchable

max Controller qty (/sys)
5

Direct Function of Buttons/Knobs
Exposure mode selection
No

One-push white balance auto adjustment
No

One-push black balance auto adjustment
No

Toggle color bars output on/off
No

Toggle backlight compensation on/off
Yes

Toggle flicker compensation on/off
No

Display the status of iris,gain,shutter speed and zoom position
No

R gain and B gain adjustment
Yes *1

R black and B black adjustment
Yes *1

Master black adjustment
No

Detail level display
No

Detail level adjustment
No

Knee point display
No

Knee point adjustment
No

AE level display
No

AE level adjustment
No

Iris setting display
No

Iris value adjustment
Yes *1

Gain setting display
No

Gain value adjustment
Yes *1

Shutter speed display
No

Shutter speed adjustment
Yes *1

Supplied Accessories
Supplied Accessories
Operating Instructions (1)
AC Power Adapter (SONY)(1)
AC power cord (1)
CD-ROM (1)
RS-422 connector plug (attached to the unit) (2)

Notes
*1
Need multiple button/knob/DIP SW operation


Available functions/specifications depend on camera specification
