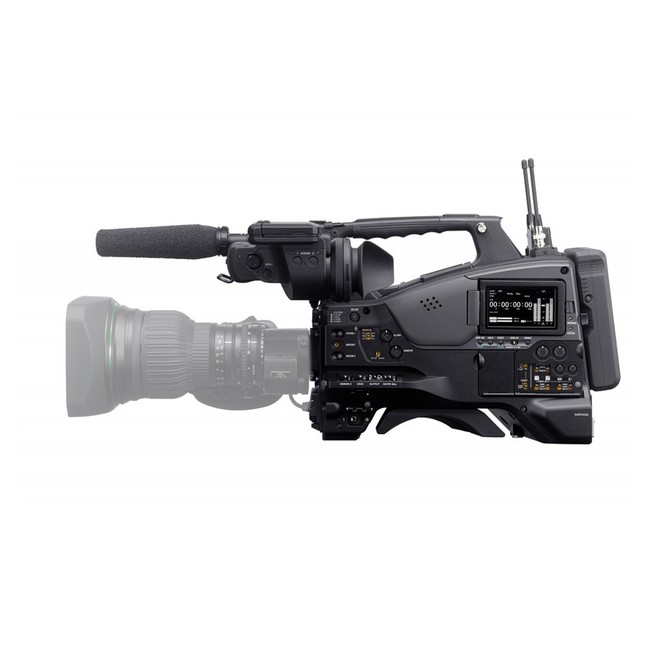

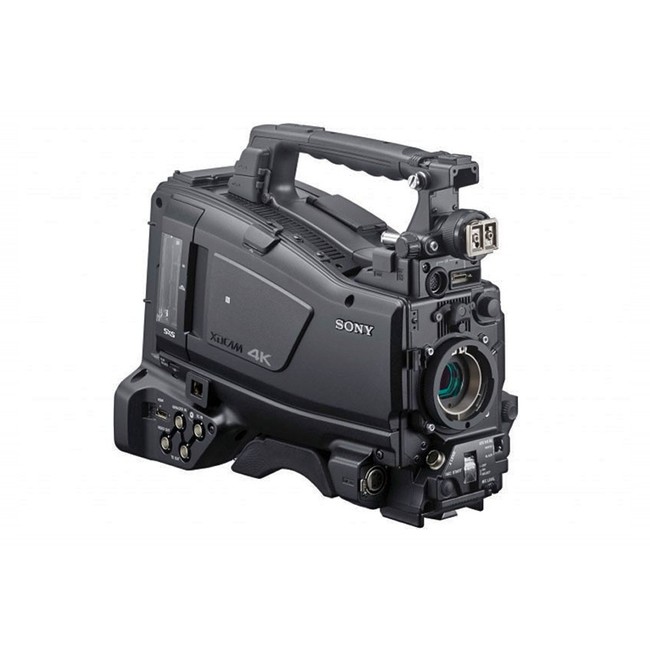

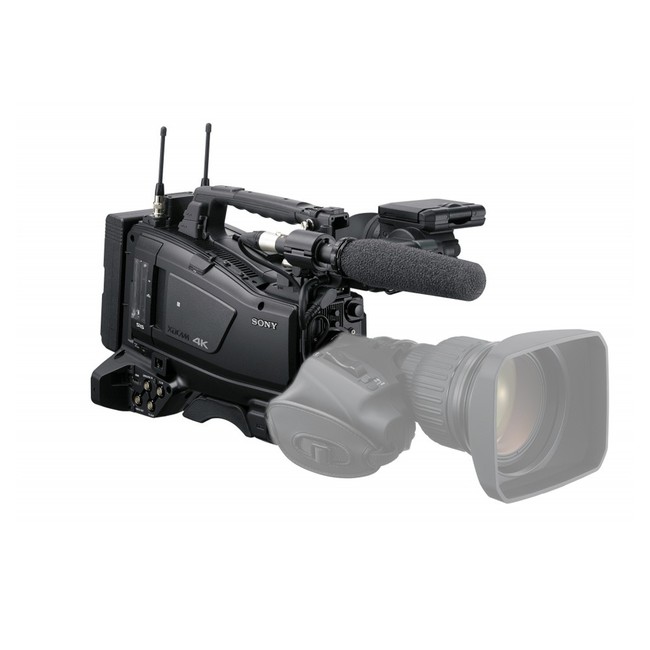

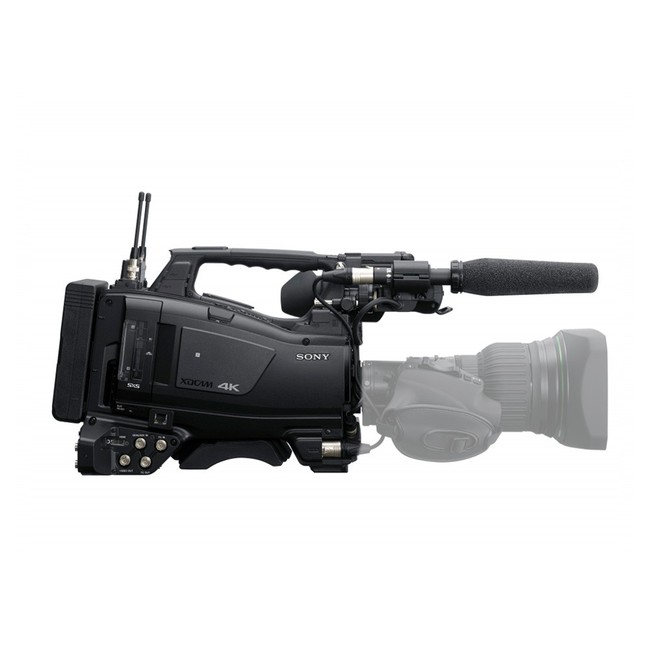

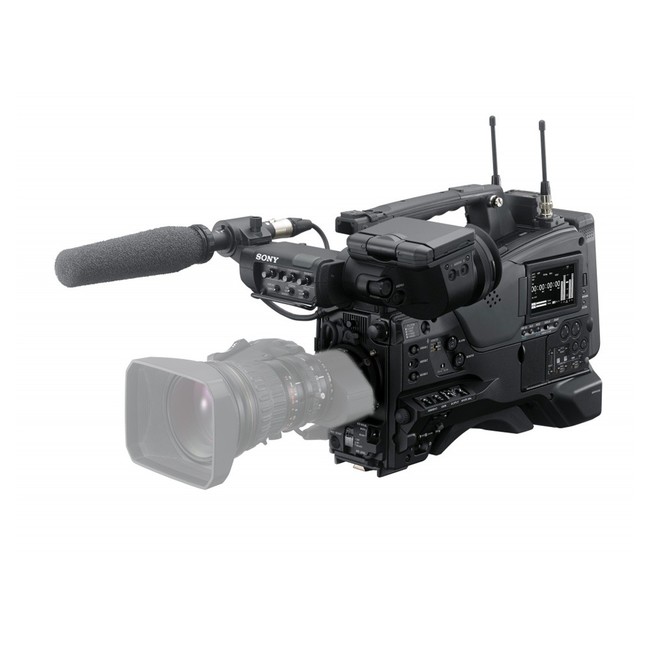

Sony PXW-Z450

Prvá 4K profesionálna kamera s 2/3 CMOS snímačom. Dobre vyvážená na plece s množstvom nových funkcií a s nískou spotrebou energie.

Více informací

771 375 Kč 665 349 Kč s DPH 549 875 Kč bez DPH
-+
Dostupnost
7-14 dní
Výrobce
Doprava zdarma při nákupu tohoto produktu
Kód zboží:
PXW-Z450
Přidat do porovnání
Popis produktu

Popis produktu

Prvá 4K profesionálna kamera s 2/3 CMOS snímačom. Dobre vyvážená na plece s množstvom nových funkcií a s nískou spotrebou energie.

  • Shooting in 4K and HD
    The PXW-Z450 supports a wide variety of formats including 4K QFHD and HD XAVC Intra and XAVC Long GOP at 50p/59.94p.

  • Versatile B4 ENG Lens Options
    Thanks to a versatile 2/3-type native sensor and B4 lens mount, this camcorder allows you to install a variety of B4 ENG lenses including either 4K or HD. This flexible lens options supports your variety of shooting applications while saving the cost.

  • Low power and ergonomic design
    Designed to minimise power consumption, this camcorder’s lighter lens grip reduces front weight and helps reduce the load on the right-arm.

  • Excellent network connectivity
    Connectivity features include built-in wireless module, RJ-45 Ethernet 100B-T connection and NFC function for easy Wireless LAN set-up.

Parametry

Parametry

Výrobce: SONY
Kategorie: Broadcast

Hlavní parametry

Velikost snímače2/3"
RozlišeníUHD
RozlišeníFull HD
RozlišeníHDV (720p)
RozlišeníSD PAL
Typ bajonetuB4 2/3"
VýstupHDMI
VýstupSDI
Výstup3G SDI
VýstupTimecode
VýstupAnalog

Ostatní parametry

Provedenína rameno
Formát záznamuXAVC-Intra
Formát záznamuXAVC-Long
Formát záznamuMPEG IMX
Formát záznamuMPEG HD
Formát záznamuDVCAM
FPSUHD 30fps
FPSHD 60fps
FPSUHD 60fps
FPSHD 50fps
FPSUHD 50fps
FPSSD PAL 50i
FPSHDV 50/60fps
FPSUHD 25fps
Typ mediaSxS
Typ baterieV-mount
Barevná hloubka8 bit
Barevná hloubka10 bit
Další funkceStreaming
Další funkceTally
Další funkceProxy recording
Další funkceWRR (Slot In Audio)
Další funkceGPS
Další funkceNFC
Další funkceTimecode
Další funkceHDR
Další funkceWiFi
OBSAH BALENÍ

  • Shoulder Belt (1)
  • Cold Shoe Kit (1)
  • Lens Mount Cap (1)
  • USB wireless LAN module (IFU-WLM3) (1)
  • Protective Cap (2)
  • Operation Guide (1)
  • Operation Manual (CD-ROM) (1)

SPECIFIKACE

Camera Section Specifications Detail:
Built-in Optical Filters 1: Clear, 2: 1/4ND, 3: 1/16ND, 4: 1/64ND
Effective Picture Elements 3840 (H) x 2160 (V)
Gain -9, -6, -3, 0, 3, 6, 9, 12, 18, 24, 30, 36, 42 dB(TBD)
Imaging Device 2/3-type "Exmor R" 4K CMOS
Minimum Illumination 0.019 lx (F1.4, +42 dB, 16-frame accumulation)
S/N Ratio 61 dB typical (typical, 1920x1080/59.94i mode, Noise Suppression On)
Sensitivity (2000 lx, 89.9% reflectance)    F10 (typical) (1920 x 1080/59.94i mode or 3840 x 2160/59.94p mode)
F11 (typical) (1920 x 1080/50i mode or 3840 x 2160/50p mode)
Shutter Speed (Time) 59.94i/p, 50i/p: 1/60 sec. to 1/2000 sec. + ECS
29.97p: 1/40 sec. to 1/2000 sec. + ECS
25p: 1/33 sec. to 1/2000 sec. + ECS
23.94p: 1/32 sec. to 1/2000 sec. + ECS
Slow & Quick Motion Function 1080p: Frame rate selectable from 1fps to 60 fps
Slow Shutter 2, 3, 4, 5, 6, 7, 8, 16-frame accumulation
White Balance Preset (3200K), Memory A, Memory B/ATW



General Specifications Detail:
Battery Operating Time Approx. 160 min with BP-FLX75
Dimensions (W x H x D) 6 3/4 x 10 5/8 x 13 1/8 inches
(excluding protrusions, body only)
Mass Approx. 7 lb 15 oz
(body only without lens, VF, Mic)
Operating Temperature 32° F to 104° F
Power Consumption Approx. 24 W (while XAVC recording, color LCD on)
Approx. 26 W (CBK-VF02 viewfinder, lens, microphone, while XAVC recording, color LCD on)
Power Requirements DC 12 V (11 V to 17.0 V)
Recording Format XAVC Intra:
- XAVC-I QFHD 300 mode: MPEG-4 AVC/H.264, CBG, Max.600Mbps
- XAVC-I HD 100 mode: MPEG-4 AVC/H.264, CBG, Max.223Mbps
XAVC Long:
- XAVC-L QFHD 150 Mode: MPEG-4 AVC/H.264, VBR, Max. 150Mbps
-XAVC-L QFHD 100 Mode: MPEG-4 AVC/H.264, VBR, Max. 100Mbps
- XAVC-L422 HD 50 Mode: MPEG-4 AVC/H.264, VBR, Max. 50Mbps
- XAVC-L422 HD 35 Mode: MPEG-4 AVC/H.264, VBR, Max. 35Mbps
- XAVC-L422 HD 25 Mode: MPEG-4 AVC/H.264, VBR, Max. 25Mbps
MPEG HD422:
- HD422 mode: MPEG-2 422P@HL, CBR, Max.50 Mbps
MPEG HD:
- HQ mode: MPEG-2 MP@HL, VBR, Max.35 Mbps
MPEG IMX:
- MPEG-2 422@ML, CBR, 50 Mbps
DVCAM:
- CBR, 25 Mbps
Recording Frame Rate XAVC Intra (XAVC-I QFHD 300 mode):
- 3840 × 2160: 59.94p, 50p, 29.97p, 25p, 23.98p
XAVC Intra (XAVC-I HD 100 mode):
- 1920 × 1080: 59.94p, 50p, 59.94i, 50i, 29.97p, 25p, 23.98p
- 1280 × 720: 59.94p, 50p
XAVC Long (XAVC-L QFHD 150 mode):
- 3840 × 2160: 59.94p, 50p
XAVC Long (XAVC-L QFHD 100 mode):
- 3840 × 2160: 29.97p,25p, 23.98p
XAVC Long (XAVC-L422 HD 50 mode):
- 1920 × 1080: 59.94p, 50p, 59.94i, 50i, 29.97p, 25p, 23.98p
- 1280 × 720: 59.94p, 50p
Recording/Playback Time    XAVC-I QFHD 300 mode:
Approx. 20 min. with 128 GB SxS card at 59.94p
XAVC-I HD 100 mode:
Approx. 120 min. with 128 GB SxS card at 59.94i
XAVC-L QFHD 150 mode:
Approx. 80 min. with 128 GB SxS card at 59.94P
XAVC-L QFHD 100 mode:
Approx. 120 min. with 128 GB SxS car d at 59.94P
XAVC-L422 HD 50 mode:
Approx. 240 min. with 128 GB SxS card at 59.94i
XAVC-L422 HD 35 mode:
Approx. 340 min. with 128 GB SxS card at 59.94i
XAVC-L422 HD 25 mode:
Approx. 440 min. with 128 GB SxS card at 59.94i
MPEG HD422 mode:
Approx. 240 min. with 128 GB SxS card at 59.94i
MPEG HD420 HQ mode:
Approx. 360 min. with 128 GB SxS card at 59.94i
MPEG IMX 50M mode:
Approx. 240 min. with 128 GB SxS card at 59.94i
HD HQ mode:
Approx. 400 min. with 128 GB SxS card at 59.94i
HD SP mode:
Approx. 560 min. with 128 GB SxS card at 59.94i
DVCAM mode:
Approx. 440 min. with 128 GB SxS card at 59.94i
Storage Temperature -4°F to +140°F



Inputs/Outputs Specifications    Detail:
Audio Input CH1/CH2: XLR-type 3-pin (female) (x2), Line/Mic/Mic/+48V selectable LINE: +4, 0, -3 dBu AES/EBU: AES3 compliant MIC: -70 dBu to -30 dBu
Audio Output XLR-type 5-pin, male, +4/0/-3 dBu (balanced)
DC Input XLR-type 4-pin, male, 11 V to 17 V DC
DC Output Round type 4-pin, 11 V to 17 V DC, 1.8 A maximum rated current
Genlock Input BNC (x1), 1.0 Vp-p, 75 ?, unbalanced
HDMI Output A type, 19-pin (x1)
Headphone Output Stereo mini jack (x1) -11 dBu reference level output, maximum monitor volume, 16 ? load
MIC XLR-type 5-pin, female: -70 dBu to -3 0 dBu
Remote 8-pin
SDI Input SMPTE ST292/ST259 standard compliant, 4-channel audio 1.5G
Poolfeed Recording (upto 1080 59.94i)
SDI Output Output 1/2/3/4: BNC (x4), 0.8 Vp-p,
Speaker Output Monaural, 300 mW output
Timecode Input BNC (x1), 0.5 V to 18 Vp-p, 10 k?
Timecode Output BNC, 1.0 Vp-p, 75 ?
USB USB 3.0/2.0 4-pin (type A), USB2.0 4-pin (type B), USB2.0 4-pin (type-A)
VF 20-pin IF for HDVF Series Viewfinder, and 26-pin IF for CBK-VF02, HDVF-L750
Video Output BNC, SD analog composite/HD-Y selectable
Wireless Receiver IN D-sub 15-pin Analog CH1: -40 dBu Digital CH1/CH2: -40 dBFS



Lens Specifications    Detail:
Lens Mount Sony 2/3-inch type bayonet mount



Monitoring Specifications Detail:
Built-in LCD Monitor Color LCD, Screen size: 8.8 cm (3.5 inch) diagonal *3 , Aspect ratio: 16:9, Number of pixels: 960 (H) × 540 (V) for Video display, Audio level, TC, battery and media remaining capacity
