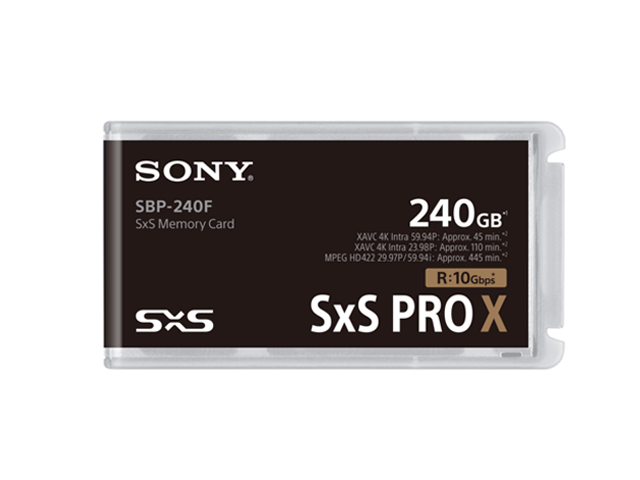

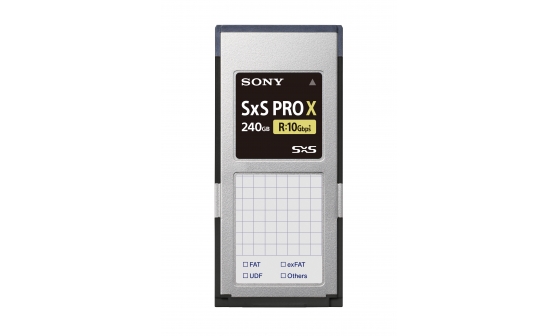

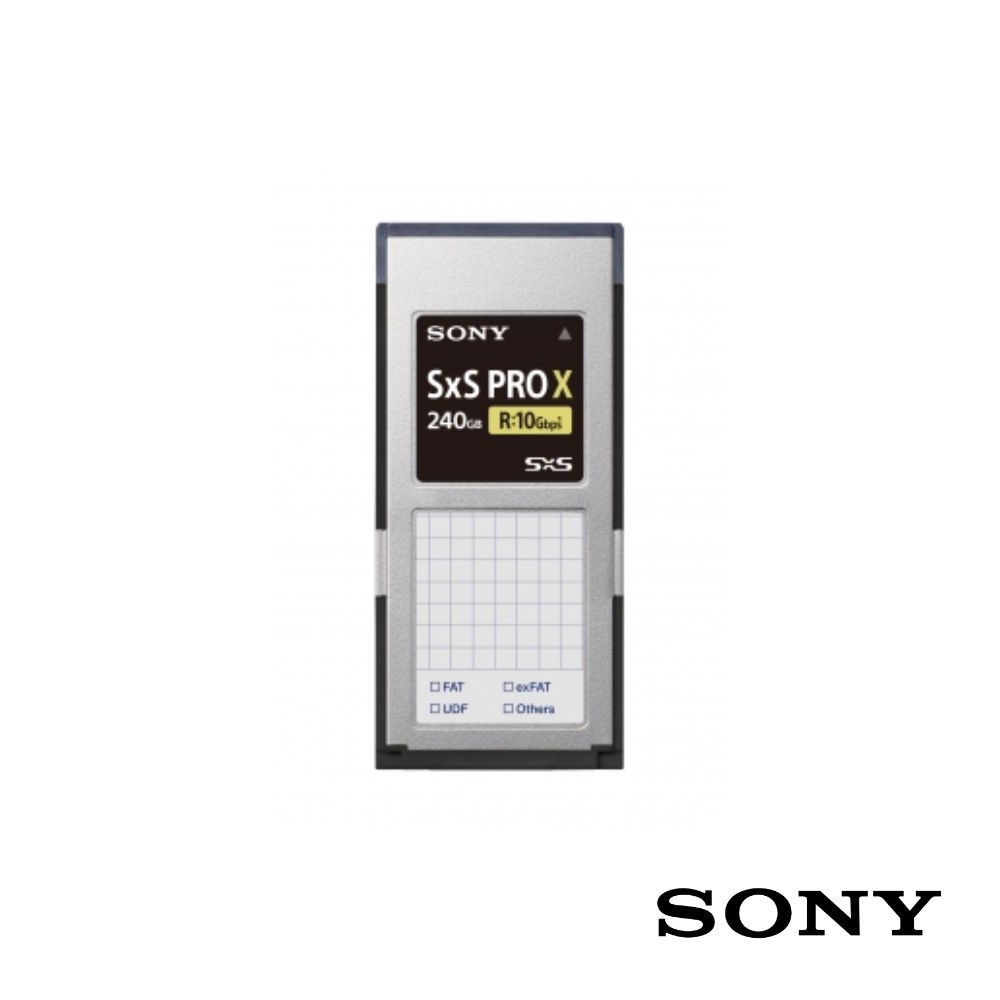

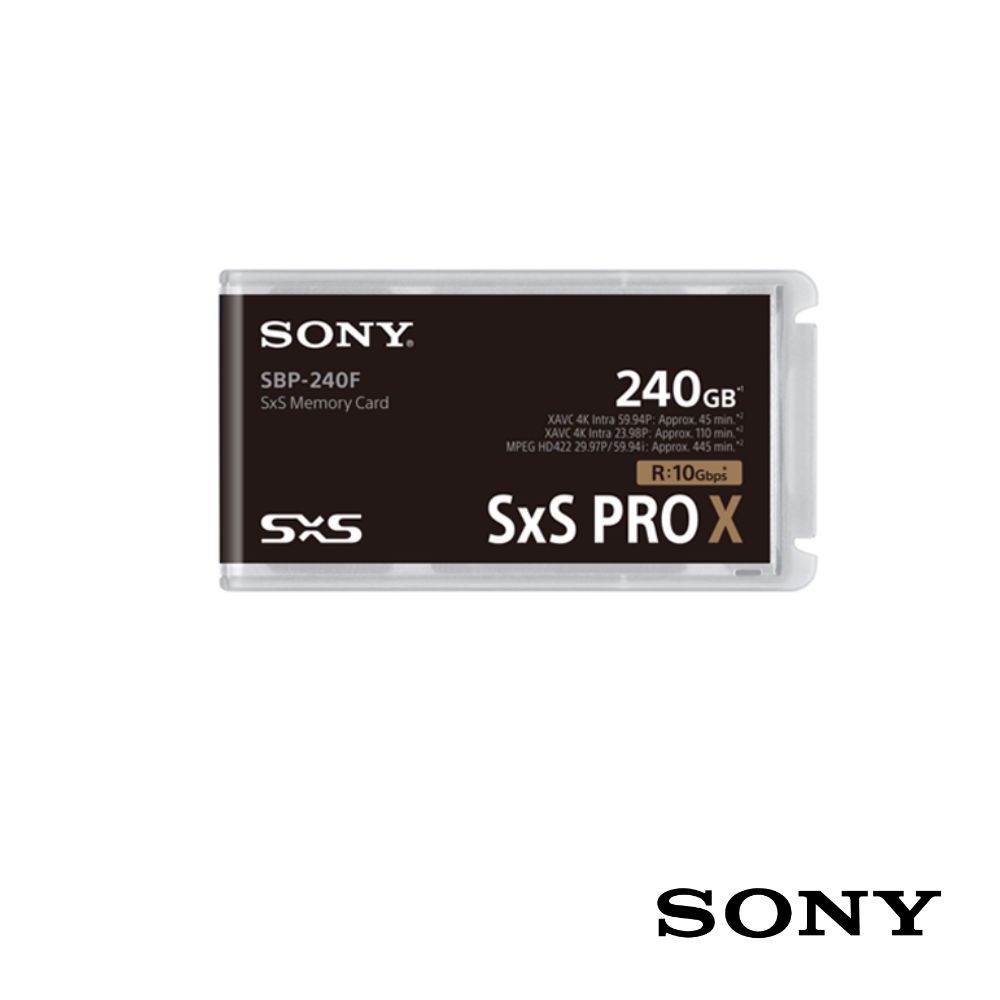

Sony SxS PRO X 240GB

Using the PCI Express 3.0 advanced interface and newly developed Sony’s unique intelligent controller delivers 3X faster ingest time compared to current versions. In combination with the new SBAC-T40 reader writer, the PRO X transfers 240GB video content to computer in approximately 3.5 minutes, greatly improve workflow efficiency for professionals.

Ultra Fast Transfer Speed up to 10Gps(1250MB/s)*
Using the PCI Express 3.0 advanced interface and newly developed Sony’s unique intelligent controller delivers 3X faster ingest time compared to current versions. In combination with the new SBAC-T40 reader writer, the PRO X transfers 240GB video content to computer in approximately 3.5 minutes, greatly improve workflow efficiency for professionals.

*Based on Sony internal testing. Transfer speeds vary and are dependent on host devices, the OS version or usage conditions.
*When using with SBAC-US30 or SBAC-UT100, transfer speeds may be slower compared to conventional SxS cards. For high speed data transfer, using with SBAC-T40 is recommended.

Stable 4K video capture of high bit rate
EB streaming technology enabling constant 2 way communication between card and Sony camcorders ensures a stable high frame rate recording, while avoiding speed degradation. Capable to record up to 45 minutes of XAVC 4K 60p (600Mbps) footage in a 240GB card with compatible Sony’s camcorders such as VENICE.

Proven Reliability for Professionals
Continuously verified through strict inspections and various quality assurance tests in the manufacturing process as the best trusted professional memory cards.

Memory Media Utility
Sony’s application software Memory Media Utility, allows to manage SxS memory cards with features such as the library function, remaining media lifetime/capacity indicator, simultaneous data back-up to three locations, and quick/full formatting.

Robustness and durability*
Passed a variety of stringent durability tests and provides a high standard of reliability for professional users to meet their severe requirement even under extreme shooting locations.

*Performance test by Sony internal Standard.

Compatible Devices
When using SBP-240F/120F with the compatible devices listed below, you will need to update the device’s system software to the version shown in parentheses or higher. For details, see the information on each device’s website.
When using SBP-240F/120F with compatible card readers, you need to install the latest version SxS Device Driver.
When SBP-240F/120F with SBAC-US30 or SBAC-UT100, you need to update the device’s system software by Memory Media Utility version 4.3.1 or later.

*Compatible Devices: PXW-X500 (V6.10), PXW-X400 (V4.10) , PXW-Z450 (V4.10), MPC-3610 (V2.10), PMW-F55/F5 (V9.20) and PXW-Z280 (V1.20).

Interface
ExpressCard / PCI Express 3.0

Model Names
SBP-120F & SBP-240F

Capacity*1
120 GB (SBP-120F) 240 GB (SBP-240F)

Max. Read Speed*2
10 Gbps (1,250 MB/s)

Max. Write Speed*2
4.8 Gbps (600 MB/s)

Min. Write Speed*2
1.3 Gbps (162.5 MB/s)

Operating Temperature
-25°C?65°C

Storage Temperature
-40°C?85°C

Weight
Approx. 27g

Dimension (W x D x H)
34 x 5 x 75 mm

Warranty
10 years

Software
Memory Media Utility

Note
*1 A portion of the memory is used for system files and may vary.
*2 Based on Sony internal testing. Transfer speeds vary and are dependent on host devices, the OS version or usage conditions.
