PTZOptics PT-JOY-G4 IP Joystick

PT-JOY-G4 je IP/Serial ovládač 4. generácie od spoločnosti PTZOptics. Umožňuje ovládať až 255 kamier prostredníctvom IP a 7 kamier prostredníctvom seriálových protokolov s podporou VISCA, VISCA-over-IP, Pelco-P a Pelco-D cez IP alebo RS-232, RS-422 a RS-485. Umožňuje ovládať pan, tilt, zoom a prednastavené polohy.

Více informací

21 203 Kč s DPH 17 523 Kč bez DPH
-+
Dostupnost
na telefon
Výrobce
Doprava zdarma při nákupu tohoto produktu
Kód zboží:
PT-JOY-G4-C
Přidat do porovnání
Popis produktu

Popis produktu

PT-JOY-G4 je IP/Serial ovládač 4. generácie od spoločnosti PTZOptics. Umožňuje ovládať až 255 kamier prostredníctvom IP a 7 kamier prostredníctvom seriálových protokolov s podporou VISCA, VISCA-over-IP, Pelco-P a Pelco-D cez IP alebo RS-232, RS-422 a RS-485. Umožňuje ovládať pan, tilt, zoom a prednastavené polohy.

A newly added web user interface will decrease your set up time, allowing you to get multiple cameras up and running in as little as five minutes! If you’re using the PT-JOY-G4 for different productions or sets, we’ve got you covered. Import and export settings for specific use cases or production environments.

For network setup, the PT-JOY-G4 will dynamically obtain an IP address upon connection to your LAN. If your network is not able to supply DHCP addresses, you can assign a static IP address to the controller.

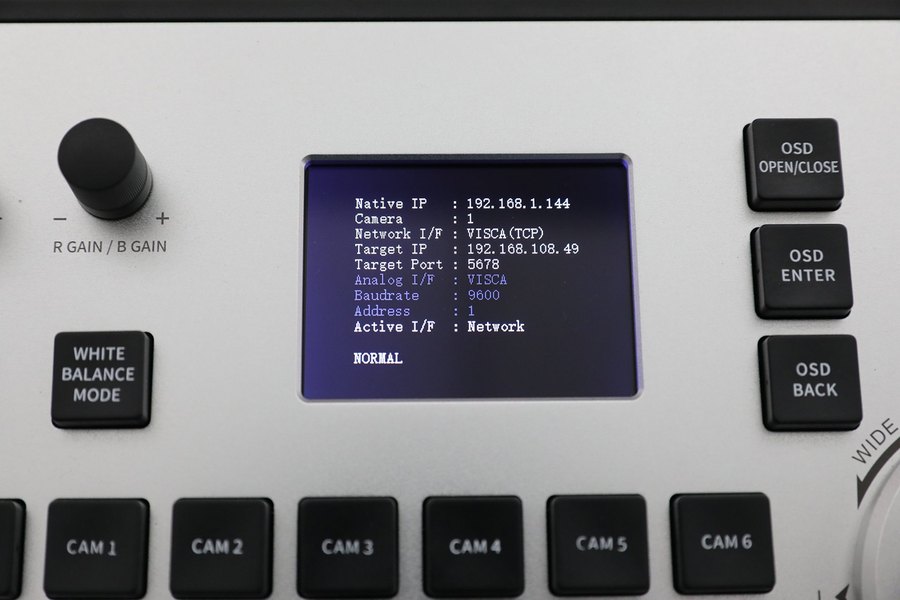

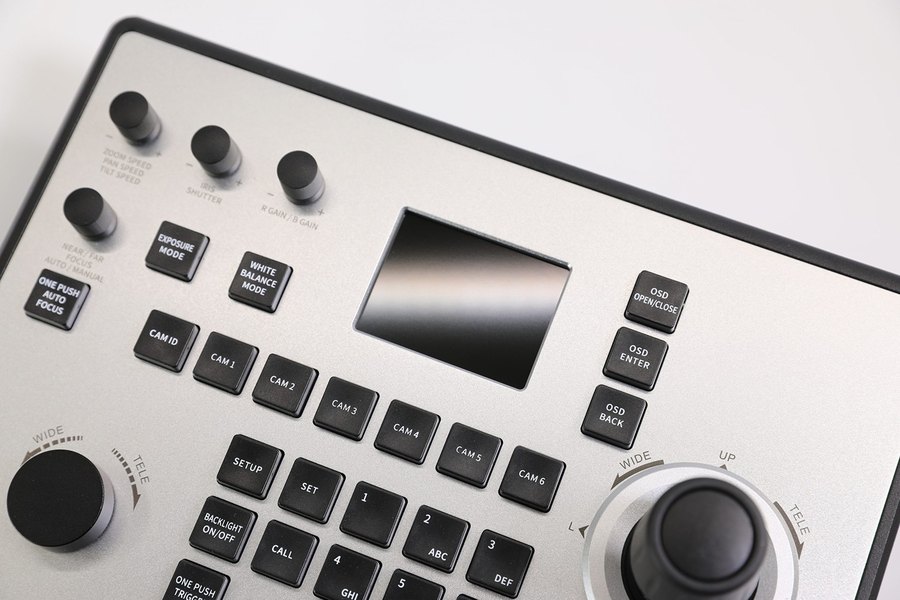

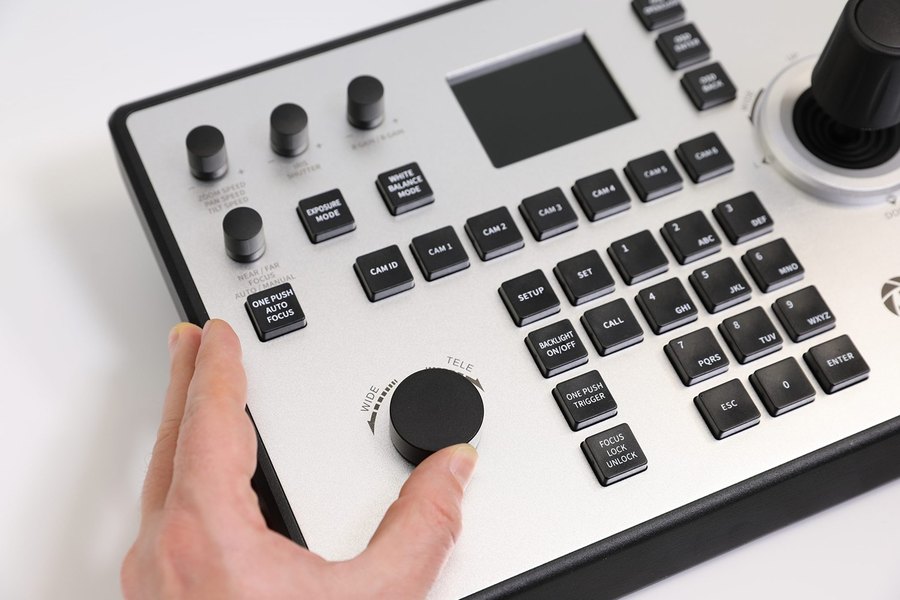

With an expanded LCD screen and a wide range of knobs for fine tuning, a single camera operator can easily:

  • Operate cameras in basic, matrix and normal modes
  • Access cameras and quickly recall preset locations
  • Control white balance, red and blue gain, shutter speed and more!
  • Use web-based and smartphone app control for added flexibility

Backed by PTZOptics’ 2-year warranty, plus full support from PTZOptics’ technical team, the PT-JOY-G4 is an ideal choice for video production in schools, houses of worship and other broadcast and live streaming scenarios.

The unit comes with a 12V 2A DC International Power Supply and an 8-foot RS-232C cable.

Features and benefits:

  • VISCA over IP or Serial Control
  • Full Pan, Tilt, Zoom Camera Control
  • Fine Tune Focus Control
  • Focus Lock and Unlock
  • Larger LCD Screen wit Controller Status
  • Direct Exposure
  • White Balance
  • Red & Blue Gain Control





Parametry

Parametry

Výrobce: PTZOptics
Kategorie: Příslušenství

Hlavní parametry

VýstupIP

Ostatní parametry

Další funkcePTZ
Ovládací protokolPelco-P
Ovládací protokolPelco-D
Ovládací protokolRS-422
Ovládací protokolVISCA
OBSAH BALENÍ

  • PTZOptics 4D IP Joystick Controller (G4)
  • Power Supply (12 V 2A DC)
  • RS-232C cable 8ft (2.4m)
  • PT-JOY-G4 Quick Start Guide

SPECIFIKACE

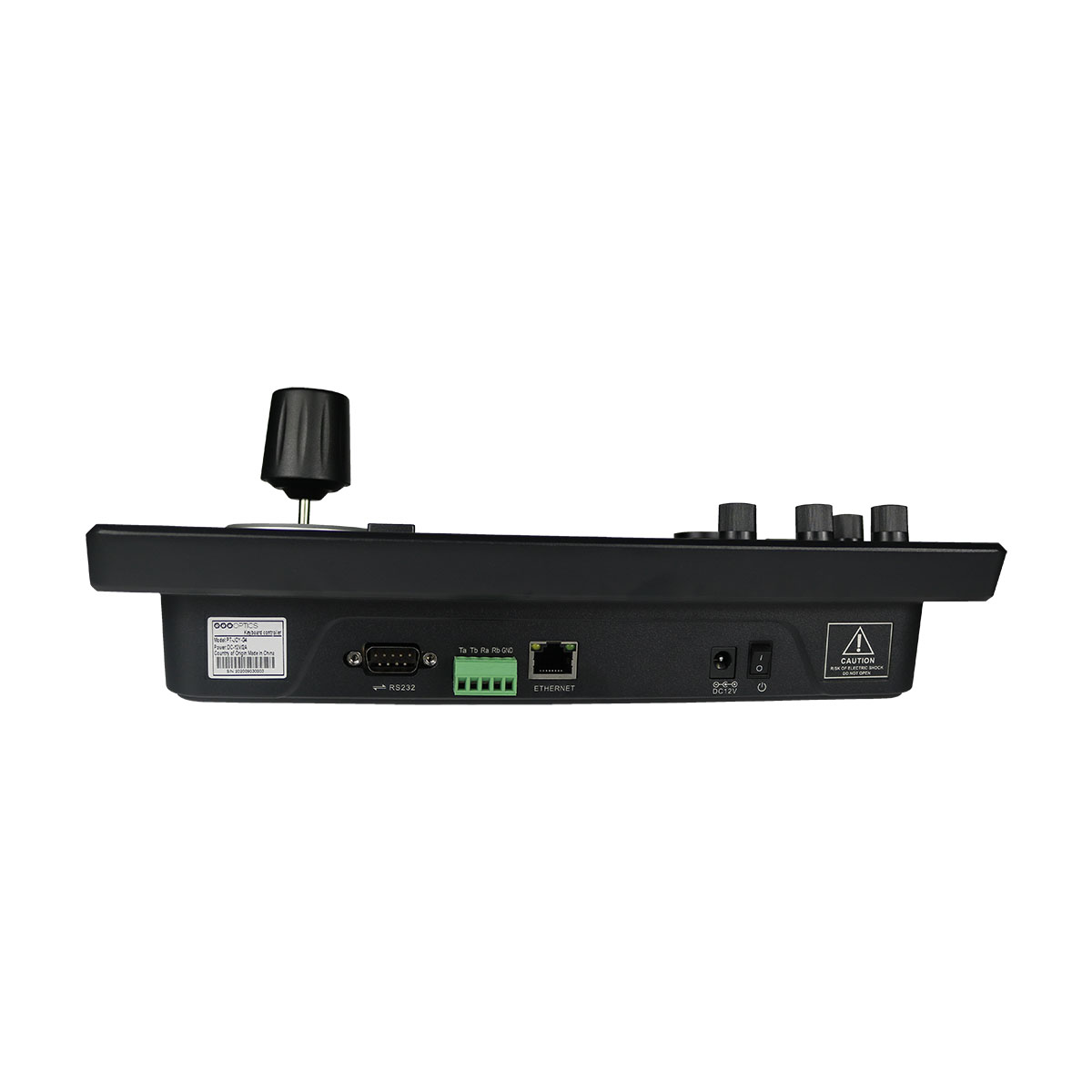

Key Technical Specifications Connections RS-232, RS-485, RS-422, RJ-45
Maximum Cameras 255 cameras via network
7 cameras via serial VISCA
Recommended Maximum Distance RS-232 / RS-422: 50 ft (15m)
RS-485: 3,937 ft (1200m)
Ethernet: 328 ft (100m)
Baud Rate 1200 ~ 19200 bps
Operation Specifications Power 6W (12VDC) / PoE (802.3af)
Working Temp 14° F ~ 122° F (-10° C ~ +50° C)
Working Humidity 10% ~ 90% (non-condensation)
Weight 4.45 lbs (2.02 kg)
Dimensions (in.) 11.938 W x 9.25 D x 4.25 H
Dimensions (mm) 303.23 W x 234.95 D x 107.95 H
Other Warranty 2 Years
