PTZOptics SuperJoy

The PTZOptics SuperJoy Joystick Controller is a comprehensive solution supporting mix-and-match serial and network-based control for PTZ cameras of any generation.

Více informací

29 402 Kč s DPH 24 299 Kč bez DPH
-+
Dostupnost
7-14 dní
Výrobce
Doprava zdarma při nákupu tohoto produktu
Kód zboží:
PT-SUPERJOY-G1
Přidat do porovnání
Popis produktu

Popis produktu

The PTZOptics SuperJoy Joystick Controller is a comprehensive solution supporting mix-and-match serial and network-based control for PTZ cameras of any generation.

Highlights

  • Simultaneous NDI, IP & Serial Control for a Range of PTZ Cameras
  • Create 4 Camera Control Groups with Up to 7 Devices Each
  • Multi-Brand Compatibility, including Sony, BirdDog, NewTek & More
  • Large LCD Screen with Controller Status and built-in decoder with HDMI output
  • Basic, Basic Plus & Matrix Modes for Users of All Skill Levels
  • Up to 255 PTZ Camera Presets, 9 Quick Presets, and 4 Super-Presets



Main Features

  • Durable metal housing
  • PTZOptics VISCA over IP & Serial control
  • Limited NDI & Sony control
  • PTZOptics Camera On Screen Display control
  • Full Pan / Tilt / Zoom camera control
  • PTZ, Focus, and Preset Speed Adjustment on the fly
  • 4 Camera Control Groups, 7 Cameras per Camera Group
  • 255 camera presets, 9 Quick presets
  • 4 Customizable buttons (TCP, UDP, & HTTP)
  • Fine tune zoom & focus control dials
  • Buttons glow / flash when available
  • RTSP Decoder via HDMI
  • PTZOptics Focus Lock & Unlock
  • Large LCD screen with controller status
  • Import / Export settings via network & USB
  • 2-Year warranty



Parametry

Parametry

Výrobce: PTZOptics
Kategorie: PTZ
OBSAH BALENÍ

  • PT-SUPERJOY-G1 Joystick Controller
  • 12V 2A DC International Power Supply
  • RS-232C | DB9 to 8-pin mini-din cable
  • PT-SUPERJOY-G1 Quick Start Guide

SPECIFIKACE

Technical Specifications

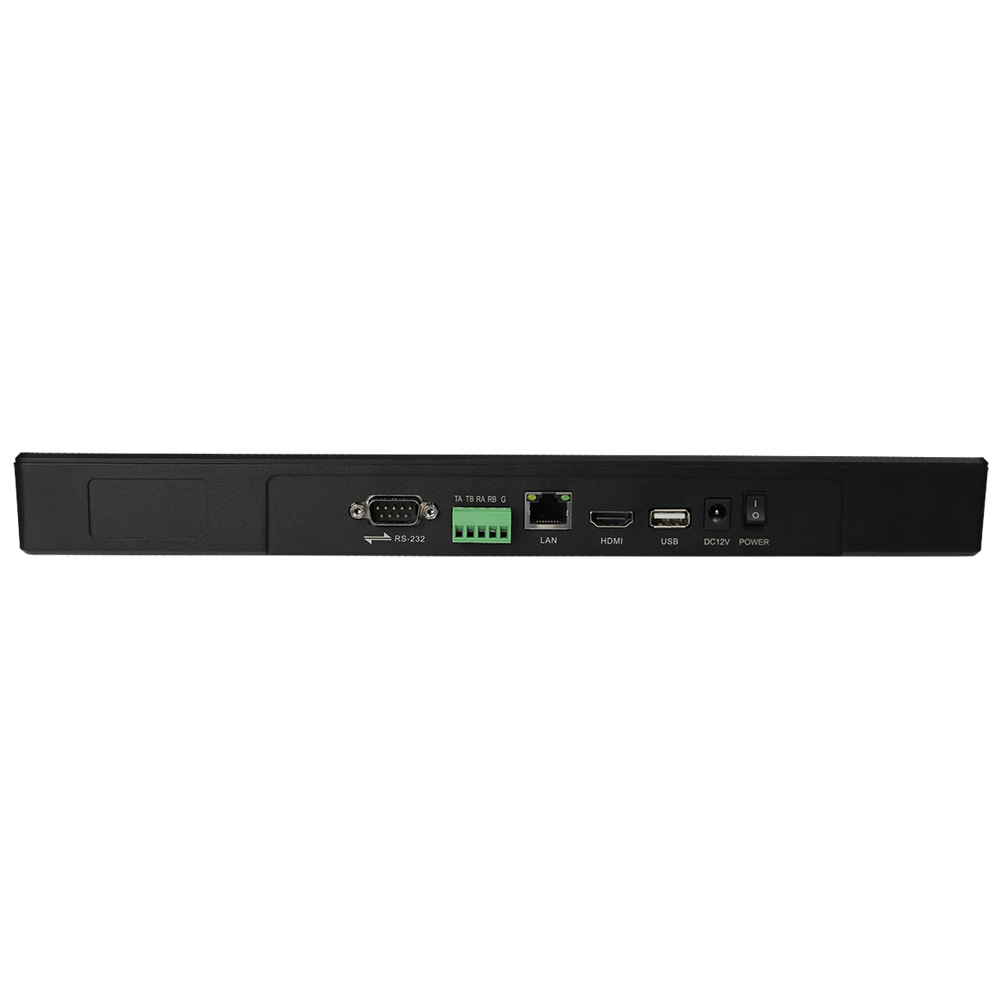

  • Connections: RS-232, RS-485, RS-422, RJ-45
  • Control Protocols: VISCA, VISCA over IP, PELCO-D, PELCO-P, Sony, & NDI
  • Max Cameras: 28 cameras total (4 groups of 7 channels)
  • Recommended Max Distance:
    • RS-232 / RS-422: 15m
    • RS-485: 1200m
    • Ethernet: 100m
  • Baud rate: 1200 ~ 19200 bps

Operation Specifications

  • Power: 6W | 12VDC / PoE (802.3af) (Only use one (1) power source at a time.)
  • Working Temp: -10° C ~ +50° C
  • Working Humidity: 10% ~ 90% (non-condensation)
  • Weight: 1.70 kg
  • Dimensions: (mm.) 370 W x 180 D x 101 H
