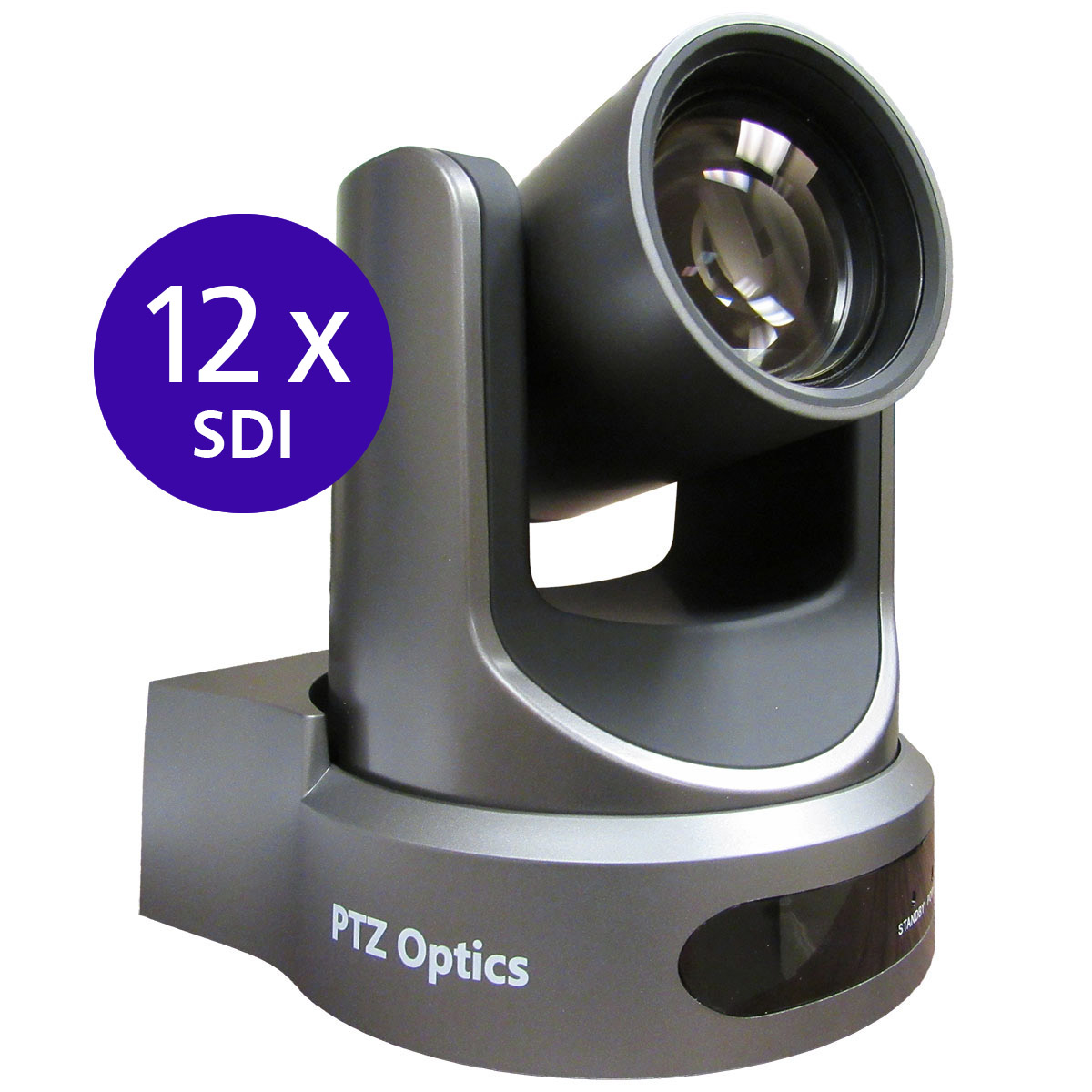

PTZOptics 12X-SDI-GY-G2 (GRAY)

PTZ kamera s 12-násobným optickým zoomom, 3G-SDI, HDMI a kompozitným analógovým výstupom. Kamera navyše disponuje funkciou H.264 / H.265 streamingu a podporuje protokol NDI (len NDI verzie).

Více informací

47 192 Kč s DPH 39 002 Kč bez DPH
-+
Dostupnost
na dotaz
Kód zboží:
PT12X-SDI-GY-G2-C
Přidat do porovnání Historie ceny
Popis produktu SPECIFIKACE OBSAH BALENÍ

Popis produktu

PTZ kamera s 12-násobným optickým zoomom, 3G-SDI, HDMI a kompozitným analógovým výstupom. Kamera navyše disponuje funkciou H.264 / H.265 streamingu a podporuje protokol NDI (len NDI verzie).

The NDI Broadcast and Conference Camera, in gray, from PTZOptics, allows you to output up to a 1080p60 signal simultaneously via HDMI, SDI, and NDI or IP outputs (NDI and IP share the same RJ45 port). The NDI protocol, NewTek's innovative IP technology, gives you low-latency access to audio and video devices anywhere on your network for various A/V applications. You won't be restricted to sources connected directly to a single system. The 12X-NDI comes with a NewTek NDI license, so you're set to go right out of the box. The camera also has a composite output that can be used on its own (without any of the other outputs at the same time) to deliver 576i/480i resolution.

The NDI has a 3.5 - 42.3mm lens providing a 12x zoom range which is ideal for smaller meeting rooms and classrooms. The NDI versions of the PTZOptics 12x cameras are ideal for streaming applications, houses of worship, sports streaming, live productions and events, and when cable runs might be an issue (when you'd rather run Ethernet cables instead of coax). The camera does well in low-light conditions owing to a fast f/1.8 - 2.8 lens aperture and minimum illumination requirement of only 0.5 lux. On top of this, built-in wide dynamic range and 2D and 3D noise reduction further enhance the conferencing experience. The camera is completely open-source, so developers can customize everything as they prefer using simple HTML.

The NDI can be powered over PoE or using the included power supply. It offers RS-232 and RS-485 serial control, an audio line-in for HDMI and NDI/IP streams, and 10 presets via the included IR remote control or 255 via serial or IP control.

Key Features

  • Simultaneous 1080p60 output via HDMI, SDI, and NDI/IP
  • Low-latency NDI video
  • Composite output (576i/480i)
  • 12x/20x/30x optical zoom
  • Minimum illumination requirement of only 0.5 lux, for better low-light performance
  • Built-in wide dynamic range and 2D/3D noise reduction
  • PoE support
  • RS-232 and RS-485 serial control
  • Audio line-in for HDMI and NDI/IP streams
  • 10 presets via the included IR remote control or 255 via serial or IP control
  • H.264, H.265, and MJPEG streaming over RJ45 port
  • Open-source design

OBSAH BALENÍ

  • PTZOptics 12x-SDI Gen2 Live Streaming Camera
  • RS-232 Cable
  • Power Supply
  • IR Remote Control
  • 2 x AAA Battery

SPECIFIKACE

Image Sensor 2.1 MP, 1/2.7" CMOS
Output IP Interface: 1 x RJ45
3G-SDI: 1 x BNC (75 Ohms)
HDMI: 1 x HDMI type A
Composite: 1 x 1/8"/ 3.5 mm
Audio Line In Analog Audio: 1 x 1/8"/ 3.5 mm (NDI/IP, HDMI)
Resolution NDI/IP/SDI/HDMI:
1080p: 60/50/30/25
1080i: 60/50
720p: 60/50/30/25

Composite:
576i: 30
480i: 30

Note: All the outputs can stream up to 1080p60 simultaneously except for composite. When you use composite, the other outputs turn off.
Lens 3.5 - 42.3mm, f/1.8 - 2.8
Zoom 12x optical
Field of View Horizontal: 6.9° (tele) to 72.5° (wide)
Vertical: 3.9° (tele) to 44.8° (wide)
Minimum Illumination 0.5 lux at f/1.8, AGC on
Shutter Speed 1/30 - 1/10000 sec
SNR ≥55 dB
Flip / Mirror Vertical
Working Environment     Indoor
Pan ±170°
Tilt Up: 90°
Down: 30°
Presets 10 via IR (255 via serial or IP)
Communication RS-232: 1 x 8-pin mini DIN input, 1 x 8-pin mini DIN output
RS-485: 1 x 2-pin
PELCO-D/P
NDI
Compression H.264, H.265, and MJPEG streaming over RJ45 LAN port
Baud Rate 2400 / 4800 / 9600 bits
Input Voltage 12 VDC (10.8 - 13 VDC) or PoE 802.3af
Power Supply JEITA-type power adapter (12 VDC in) included
Power Consumption 12 W (max)
USB USB 2.0 (future manufacturer use only)
Dimensions 5.6 x 6.5 x 6.7" / 14 x 16 x 17 cm
5.6 x 7.8 x 6.7" / 14 x 20 x 17 cm (with tilt)
Weight 3 lb / 1.4 kg
Parametry

Parametry

Výrobce: PTZOptics
Kategorie: PTZ

Hlavní parametry

Velikost snímače kamery1/2,7"
Stream službyYouTube Live
Stream službyFacebook Live
Stream službyUSTREAM
Stream službyWOWZA
Zoom12x
Interní záznamNe
Typ bajonetuintegrovaný objektiv
VýstupHDMI
VýstupSDI
VýstupRTMP
Výstup3G SDI

Ostatní parametry

ProvedeníPTZ
FPSHD 60fps
Světelnost objektivu1.8f
Min. ohnisková vzdálenost3.5mm
Max. ohnisková vzdálenost42.3mm
Barevná hloubka8 bit
Barevná hloubka10 bit
Další funkcePTZ
Další funkceStreaming
Další funkcePoE
Ovládací protokolVISCA
