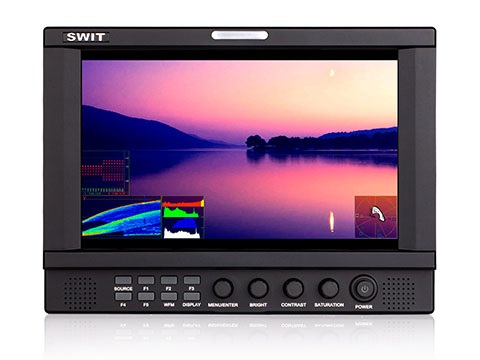

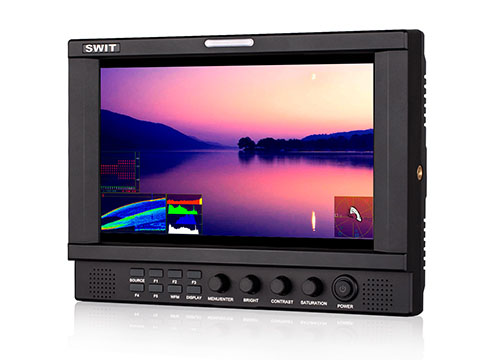

SWIT S-1093F 9" HD LCD monitor

SWIT S-1093F je 9” IPS LCD monitor s rozlíšením 1920×1200, pozorovacím uhlom 170° a 2x SDI, HDMI a kompozitným vstupom a loop výstupom na každom vstupe. Monitor má okrem štandardných fukcií aj Waveform monitor, Vector Scope a Histogram.

Více informací

38 845 Kč s DPH 32 103 Kč bez DPH
3-5 dnů
Doprava zdarma při nákupu tohoto produktu
Kód zboží:
Přidat do porovnání
Popis produktu

Popis produktu

SWIT S-1093F je 9” IPS LCD monitor s rozlíšením 1920×1200, pozorovacím uhlom 170° a 2x SDI, HDMI a kompozitným vstupom a loop výstupom na každom vstupe. Monitor má okrem štandardných fukcií aj Waveform monitor, Vector Scope a Histogram.


9-inch Full HD Waveform LCD Monitor

  • 9” IPS LCD, 1920×1200, H/V 170°viewing
  • Build-in LCD protective glass
  • 2K/3G/HD/SD-SDI, HDMI, CVBS monitoring
  • 16-ch Embedded audio meters with alert
  • Select any 2 audio channels to output
  • Waveform Y/Cb/Cr/R/G/B and single line
  • Vector scope, histogram R/G/B/Y
  • AFD, H/V delay, R/G/B/Mono, False color
  • TSL UMD and text TALLY display
  • Zebra stripes, Peaking focus assist
  • SDI timecode display
  • Marker 4:3, 13:9, 14:9, 15:9, 1.85:1, 2.35:1
  • Front / Rear TALLY light and GPI control
  • V-mount, Gold mount or snap-on DV mount
  • USB firmware upgrade

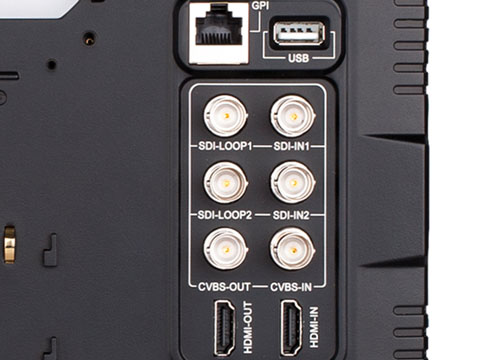

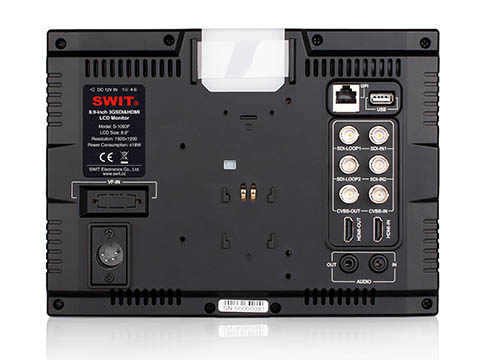

Input/Output Interfaces

SDI / HDMI / CVBS / Analog Audio

S-1093F monitor supports:
2K/3G/HD/SD-SDI input × 2
2K/3G/HD/SD-SDI loop output × 2
HDMI input × 1
HDMI loop output × 1
CVBS input × 1
CVBS loop output × 1
3.5mm analog audio input × 1
3.5mm analog audio output × 1

Video Analysis Assistant Pattern

Waveform / Vector scope / Histogram
S-1093F supports video analysis assistant patterns includes: Waveform (Y/Pb/Pr/R/G/B), Vector scope, Histogram (R/G/B/Y), to convert the digital video quality info (Luma, Color, Saturation, etc) to patterns, and the patterns can be switched on/off individually, select display position (Up/Down/Left/Right), size, color, and translucence.

Embedded audio monitoring

Up to 16-ch meters with alert and select output

S-1093F supports SDI-16ch and HDMI-8ch embedded audio meters display, with marks and audio abnormal alert info. Users can also select any 2 channels audio to output via 3.5mm socket or speakers. The audio meter pattern position can be selected from one of four corners, and you can select to display only 2 channels, 8 channels, and full 16 channels. Also scale markers, alert info, and translucent of the audio meter pattern are selectable.

UMD and Text-Tally Display

TSL 3.1 / 4.0 Protocol

S-1093F supports UMD and Text-Tally display of TSL 3.1/4.0 protocol, with 1-126 TSL address selection, and Max 8 letters displayed. The UMD/TALLY signal inputs via RJ45(RS485) port on the rear panel of the monitor.

USB Firmware Upgrade

The monitor provides a standard USB port on the rear panel, for firmware upgrade. Users can download the latest firmware file to a USB stick, and directly insert into S-1093F monitor to upgrade, without PC connection.

Multiple Power Sources

AC adaptor / V-mount / Gold mount / Snap-on DV mount

The monitor provides a 4-pin XLR socket of DC 6.5-24V power input, and can be fixed on V-mount, Gold mount or DV battery plate.
Various types of DV battery plates are provided for optional, with snap-on designed, quick released and interchangeable with each other. There’re following DV plates for selection:

Model of Plates Compatible batteries
S-7004F SONY NP-F970/770, SWIT S-8972, S-8970
S-7004U SONY BP-U60/U30, SWIT S-8U63,S-8U93
S-7004D Panasonic D54/D28,VW-VBD58;SWIT S-8D62, S-8D58
S-7004B Panasonic VW-VBG6, SWIT S-8BG6
S-7004V JVC BN-VF823, SWIT S-8823
S-7004i SSL-JVC50, SWIT S-8i50
S-7004C Canon BP-945/970G, SWIT S-8845, S-8945
S-7004E Canon LP-E6, SWIT S-8PE6

3-color TALLY Light

RJ45(RS485) input signal

There are front and rear TALLY lights of Red, Green and Yellow colors, and users can define the pins of RJ45 port to control the TALLY lights.

Sun Hood

For outdoor using, you can apply a sun hood on the monitor. The sun hood can be easily installed via the left and right screw threads, or directly by Velcro tapes.
The sun hood is provided in the monitor package.


Simple package includes:

  • 1x Battery plate (V-mount or Gold mount or snap-on DV mount optional)
  • 1x Cold shoe / Screw Articulating Arm trestle
  • 1x Sun hood
  • 1x 4-pin XLR power adaptor (A-PA03)


Input Video Formats

S-1093F support the following input video formats:

Input Supported formats
HDMI 480i/ 576i / 480p / 576p
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)

1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080psf (30 / 29.97 / 25 / 24 / 23.98)

SDI SMPTE ST 2048-1: 2011 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
SMPTE-425M 1080P (60 / 59.94 / 50)
SMPTE-274M 1080i (60 / 59.94 / 50)
1080p (30 / 29.97 / 25 / 24 / 23.98)
SMPTE-RP211 1080psf (30 / 29.97 / 25 / 24 / 23.98)
SMPTE-296M 720p (60 / 59.94 / 50)
SMPTE-125M 480i (59.94)
ITU-R BT.656 576i (50)
