Fujinon ZA22x7.6BERD-S6

The ZA22x7.6BERD-S6 with Servo for Focus and Zoom is a 7.6-167mm lens, designed to provide 2/3" cameras with a wide to telephoto angle-of-view. The lens has a zoom ratio of 22x, and a 2x extender effectively doubles the focal range. The maximum aperture is a fast f/1.8…

Více informací

1 004 174 Kč 602 504 Kč s DPH 497 938 Kč bez DPH
-+
Osobní odběr: 06. 02. od 09:00
Odešleme: 06. 02.
Skladem 2 ks
Praha 2 ks
Popis produktu

Popis produktu

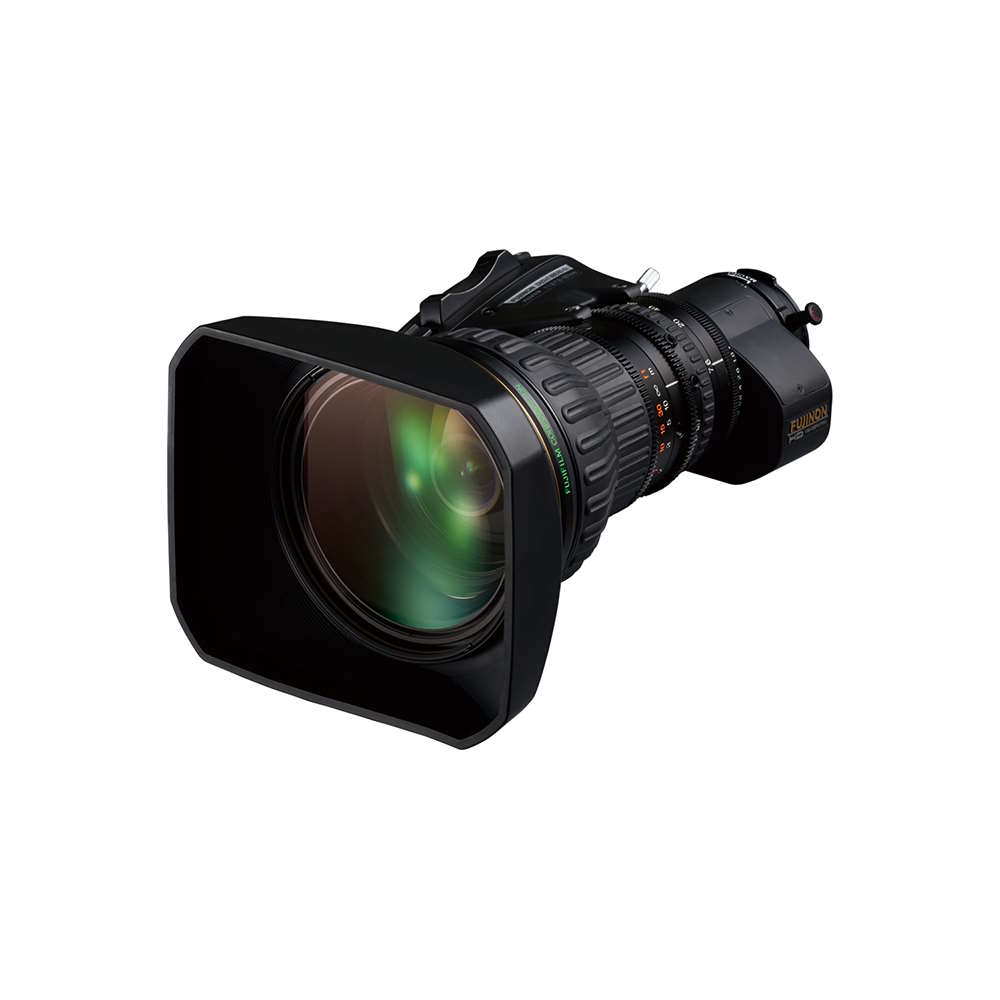

The ZA22x7.6BERD-S6 with Servo for Focus and Zoom is a 7.6-167mm lens, designed to provide 2/3" cameras with a wide to telephoto angle-of-view. The lens has a zoom ratio of 22x, and a 2x extender effectively doubles the focal range. The maximum aperture is a fast f/1.8 at 7.6-120mm and stops down to f/2.5 at 167mm. The lens also includes a digital servo for focus and zoom, which enables full studio control via RS-232.

  • High Power Zoom Ratio 22x in ENG Style lens
  • Outstanding HD High Optical Performance
  • Equipped New Ergonomic Digital Grip
  • 16bit encoders device for virtual system


ZA22x7.6BERM / BERD

Focal length
[1x] 7.6-167mm
[2x] 15.2-334mm

Zoom ratio 22x

Extender 2x

Maximum relative aperture (F-no.)
1 : 1.8 (7.6-120mm) / 1 : 2.5 (167mm)

Minimum object distance (M.O.D.) from front lens
0.8m

Object dimensions at M.O.D.
16 : 9 Aspect ratio

[1x]
7.6mm   915 x 514mm
167mm   43 x 24mm

[2x]
15.2mm   473 x 266mm
334mm   22 x 12mm

Angular field of view
16 : 9 Aspect ratio

[1x]
7.6mm   64.5° x 39°
167mm   3.3° x 1.8°

[2x]
15.2mm   35° x 20.1°
334mm   1.6° x 0.9°

Filter thread
M95 x 1 / M107 x 1 (Filter attaches to the lens hood.)

Approx. Size
φ100 x 220.4mm(φ x Length)

Approx Mass
1.85kg (RM) / 1.92kg (RD) (without lens hood)

Parametry

Parametry

Výrobce: Fujinon
Kategorie: Objektivy

Hlavní parametry

BajonetB4 2/3"
Objektiv pro2/3"
Optický zoom22x

Ostatní parametry

ŘadaBERD
