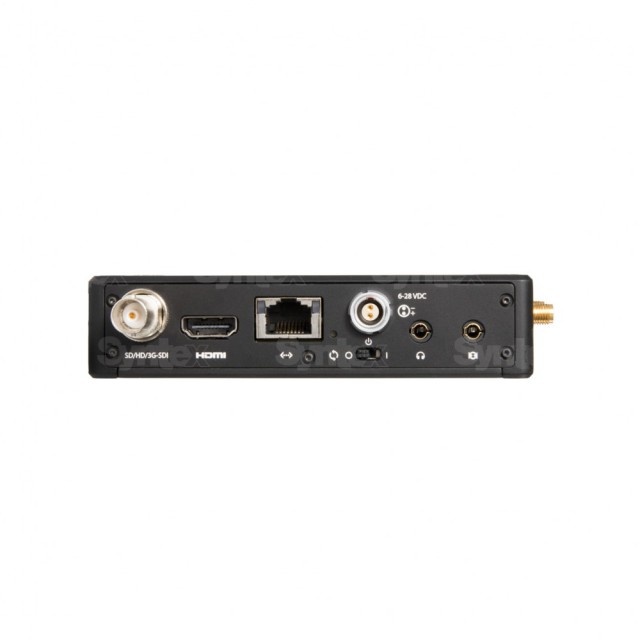

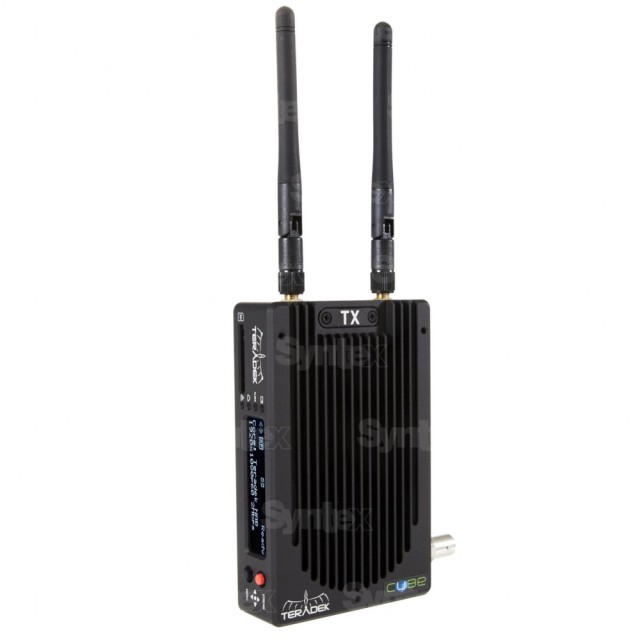

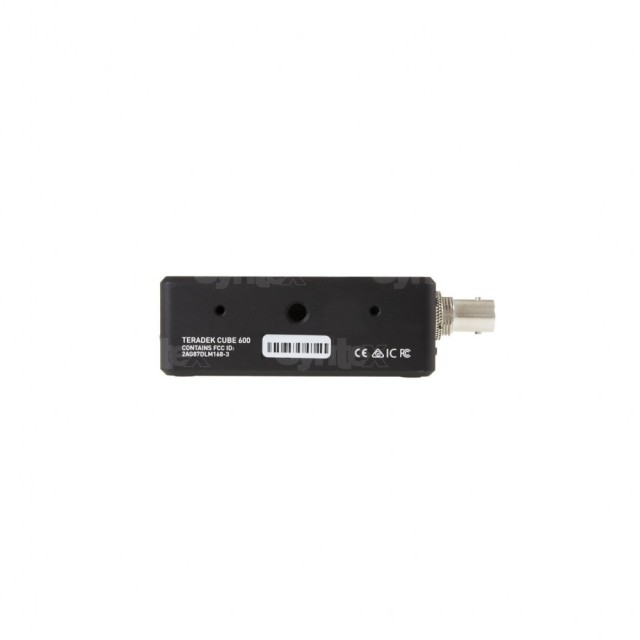

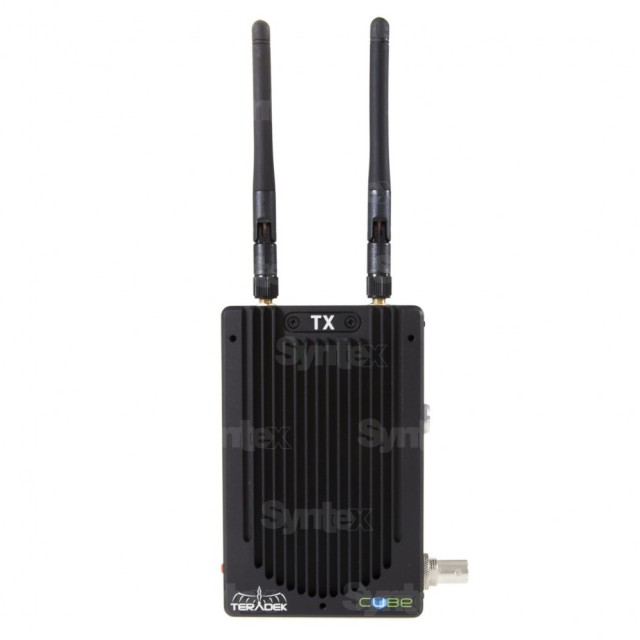

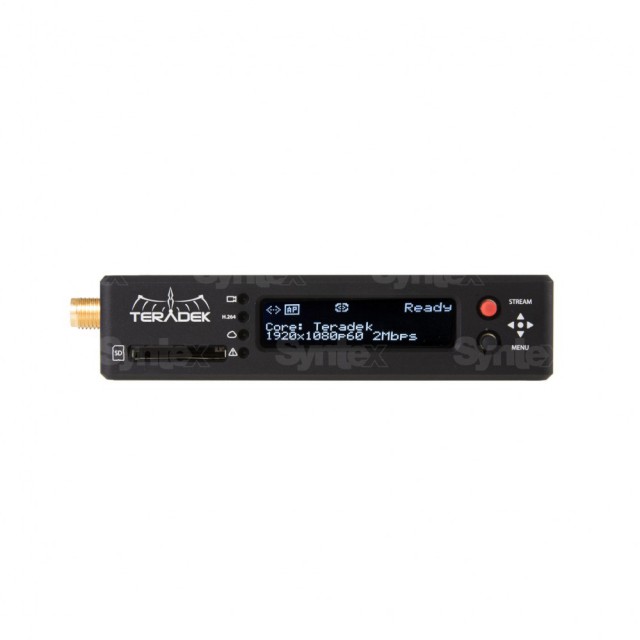

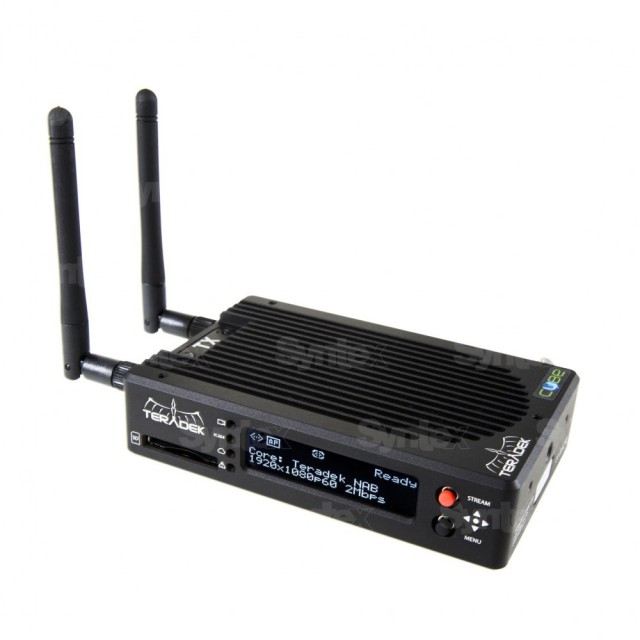

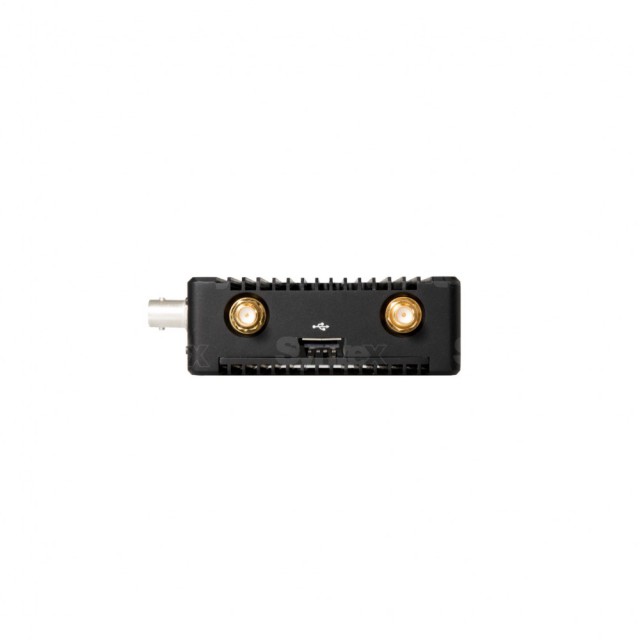

Teradek Cube 655 HD-SDI Encoder
Kód zboží: TER-CUBE655
Teradek Cube 655 je real-time enkóder H.264 so vstupmi 3G-SDI a HDMI. Kóduje video s rozlíšením až 1080p pri bitových rýchlostiach až 15 Mb / s, čo umožňuje streamovanie vysokokvalitných snímkov cez Ethernet, Wi-Fi alebo USB (streamovanie Wi-Fi je obmedzené na 10 Mbps).
57 490 Kč s DPH
47 512 Kč bez DPH
Dostupnost
na dotaz
Popis produktu
SPECIFIKACE
OBSAH BALENÍ
CUBE 655
Popis produktu
Teradek Cube 655 je real-time enkóder H.264 so vstupmi 3G-SDI a HDMI. Kóduje video s rozlíšením až 1080p pri bitových rýchlostiach až 15 Mb / s, čo umožňuje streamovanie vysokokvalitných snímkov cez Ethernet, Wi-Fi alebo USB (streamovanie Wi-Fi je obmedzené na 10 Mbps).
OBSAH BALENÍ
- Teradek Cube 655 H.264 HD Encoder
- 2-Pin Connector to 18W AC Power Adapter
- Ethernet Cable
- SDI Cable (10")
- HDMI Cable (36")
- Shoe Mount
- 2 x Wireless Antennas
SPECIFIKACE
CUBE 655
| Video Inputs | 1 x SD/HD-SDI (75 Ohm BNC) |
| 1 x HDMI Type-A receptacle | |
| Bonding | TeraLink |
| Supported Resolutions | 1080p 23.98/24/25/29.97/30/50/59.94/60* |
| 1080i 50/59.94/60 | |
| 1080PsF 23/24/25/29/30 | |
| 720p 50/59.94/60 | |
| 576i | |
| 480i | |
| 480p (for HDMI input only) | |
| 576p (for HDMI input only) | |
| *Ingests 1080p50/59/60 | |
| Video Compression | H.264, Baseline, Main and High Profile |
| Supported Video Bitrate | 250 Kbps to 15 Mbps* |
| *15 Mbps (wired), 10 Mbps (WiFi) | |
| Test Pattern Generator Support | Supports Custom Test Pattern |
| Video Format Conversion Support | Built in Video Scaler and Deinterlacer |
| Colour Correction | CDL/1024 1D LUT (supports 10-bit colour) |
| 33x33x33 3D LUT (supports 10-bit colour) | |
| Network Protocols | TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP |
| Supported Video Transport Protocols | RTMP |
| RTP, RTSP, RTSP over HTTP | |
| MPEG-TS (MPEG-TS is an optional paid license) | |
| Remote Control | Teradek Core |
| Software Or Platform Integration | Ustream, YouTube Live, Facebook & new Livestream |
| Audio Compression | AAC-LC, MPEG Layer 2 |
| Audio Input | Embedded Audio Input |
| Analog Line or Mic in, adjustable gain | |
| Audio Output | Headphone output |
| Http | WebUI for Configuration and Control |
| Configuration Interfaces | OLED Display with joystick Navigation buttons |
| Feature-rich WebUI for configuration and control | |
| Switches | On/Off and Reset Switch |
| Recording Storage | SD Card: Full Size |
| Mobile App | Vuer, Live:Air |
| USB Interface Functionality | Powered USB 2.0 host port |
| Ethernet | 10/100/1000 BASE-T Gigabit |
| Wireless | WiFi: 2.4/5GHz 802.11 ac/a/b/g/n MiMo |
| USB | None |
| Rf Channel Selection | Auto with 3 modes: (2.4 or 5 Ghz), Auto (2.4 GHz only), Auto (5 Ghz only) |
| Configurable to specific channels | |
| Encryption | 802.1x, 802,11i, WPA2, WPA and WEP 64/128 TKIP 128bit AES |
| Power Input | 2 Pin Connector Power input |
| Battery | No Battery Included |
| Nominal Power Consumption | 8W, 7W (no WiFi) |
| Auxilary Power Input | 6-28V DC |
| Dimensions (WxDxH) | 120.7 x 76.2 x 27.9mm (4.75" x 3" x 1.1") |
| Weight | 328.9g (11.6oz) |
| Construction | Milled Aluminium |
| Mountability | Can be mounted horizontally or vertically with 1/4" 20 mounting holes |
