SWIT S-3812S 2-kanálová nabíjačka

SWIT S-3812S 2-kanálová simultánna nabíjačka pre V-mount batérie

Dual-channel Fast Charger S-3812S

• 2-ch V-mount Fast Charger
• 2-ch simultaneous charging
• Identify battery type and adjust charging method
• 6A fast charging for SWIT particular batteries
• 3A charging for normal batteries
• Support AC to 4-pin XLR output
• Support battery to 4-pin XLR output
• LCD display charging/adapting info

Max charging current: 6A

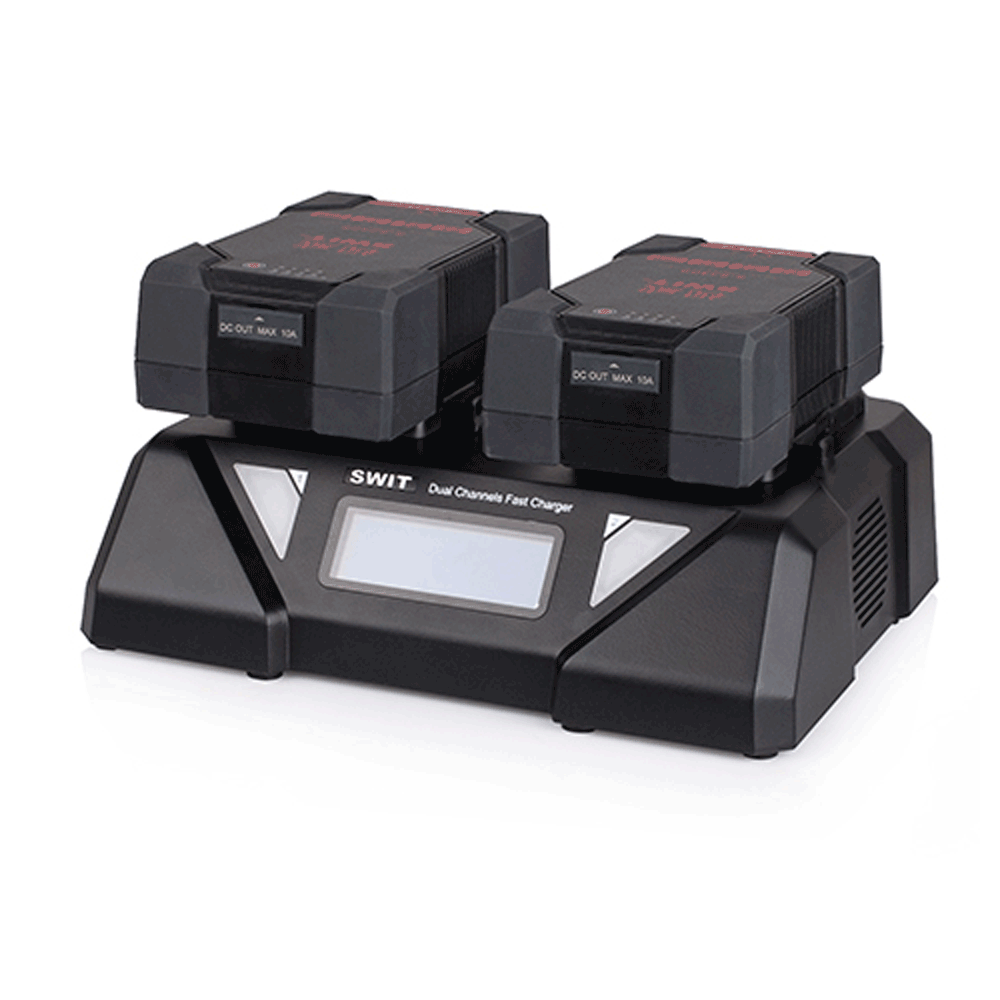

S-3812S can charge 2 V-mount batteries simultaneously at Max 6A fast charging current, to SWIT particular batteries. The charging speed is quite faster than normal chargers.
The following battery models support 6A fast charging:
PB-H290S, PB-S220S, PB-R160S, PB-R290S, S-8340S, S-8360S, D-8161S, S-8180S, S-8113S, S-8183S
And for other batteries, the charging current is 3A.

Charging time comparation

AC-DC Adapting Output

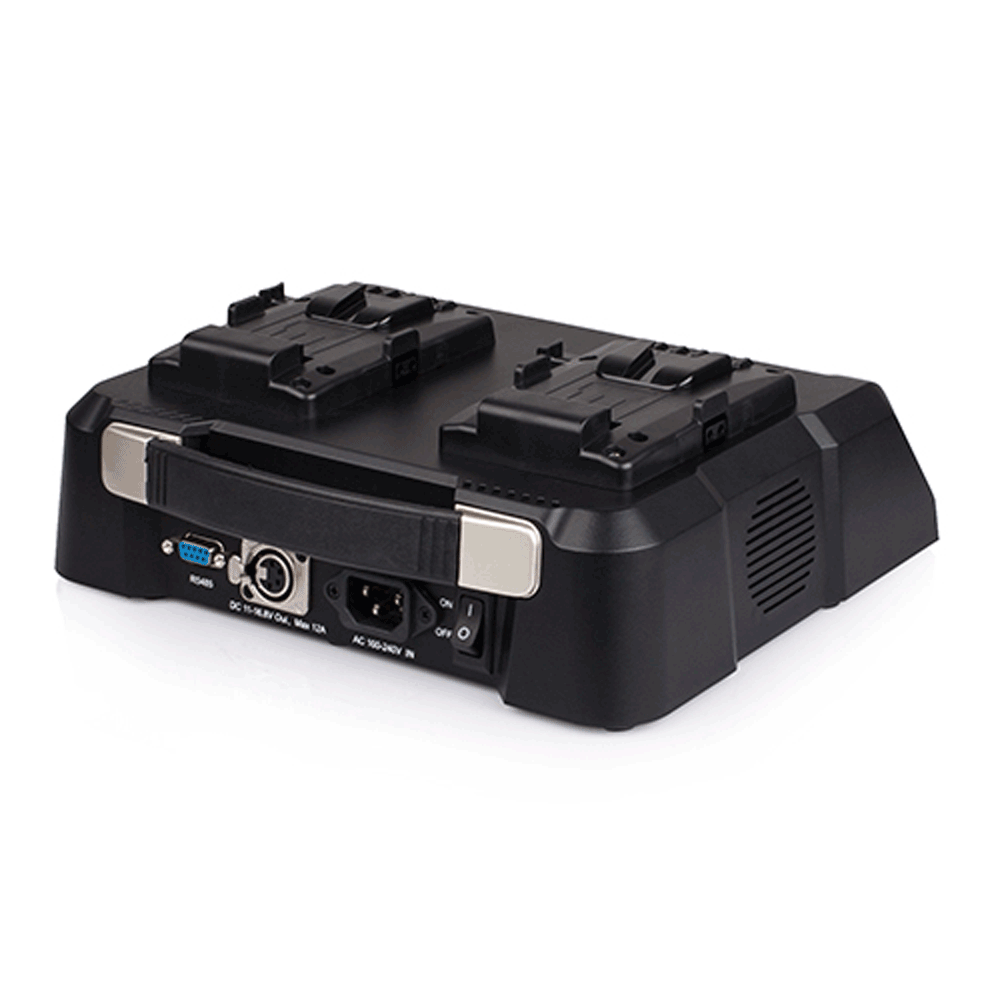

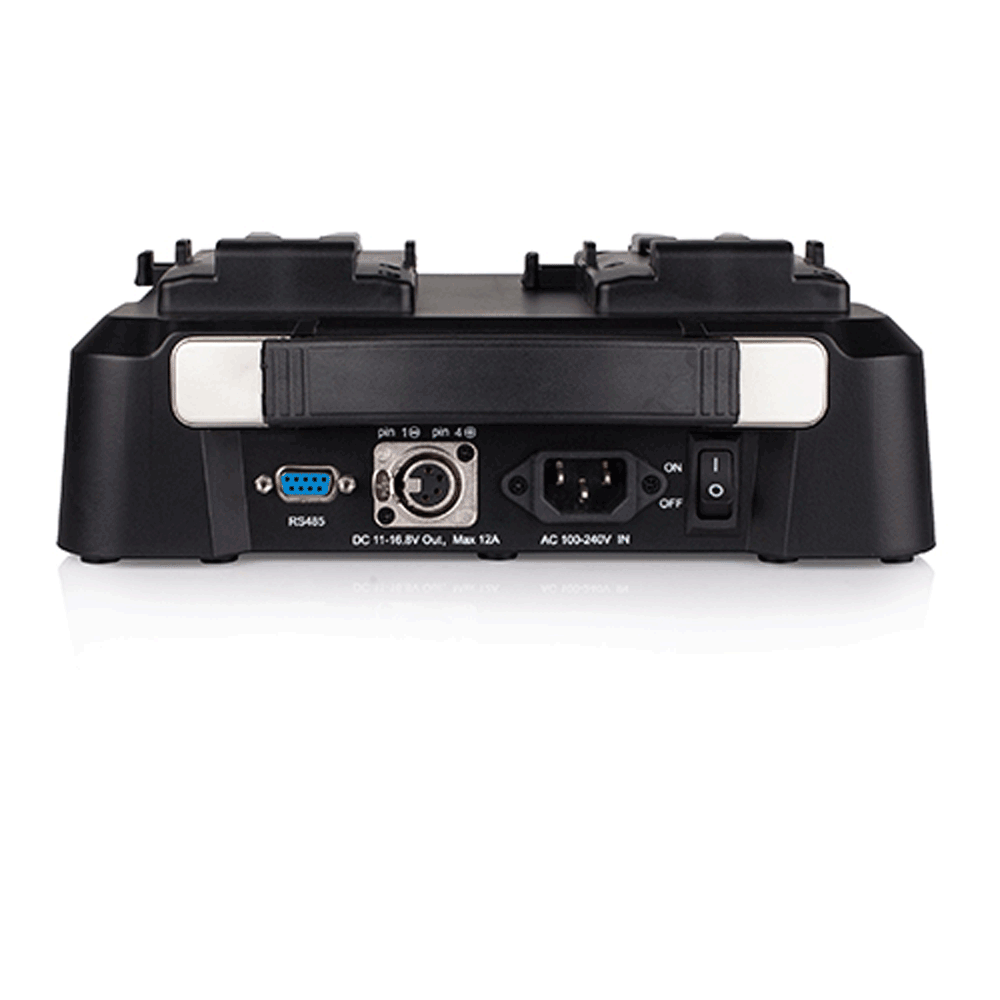

S-3812S supports 1-ch AC-DC adapting output via 4-pin XLR port. By S-7102 (4-pin XLR female to male) cable, it can supply 16.8V DC power to the other equipments, Max load 200W/12A.
When adapting load is less than 100W, S-3812S can still charge battery simultaneously. (2 batteries sequential)
Remark: S-7102 cable is optional purchased.

Battery-DC Adapting Output
You can also mount batteries onto S-3812S, and output DC power via 4-pin XLR port. By S-7102 (4-pin XLR female to male) cable, it can supply 16.8V DC power to the other equipments, Max load 200W/12A.
Remark: S-7102 cable is optional purchased.

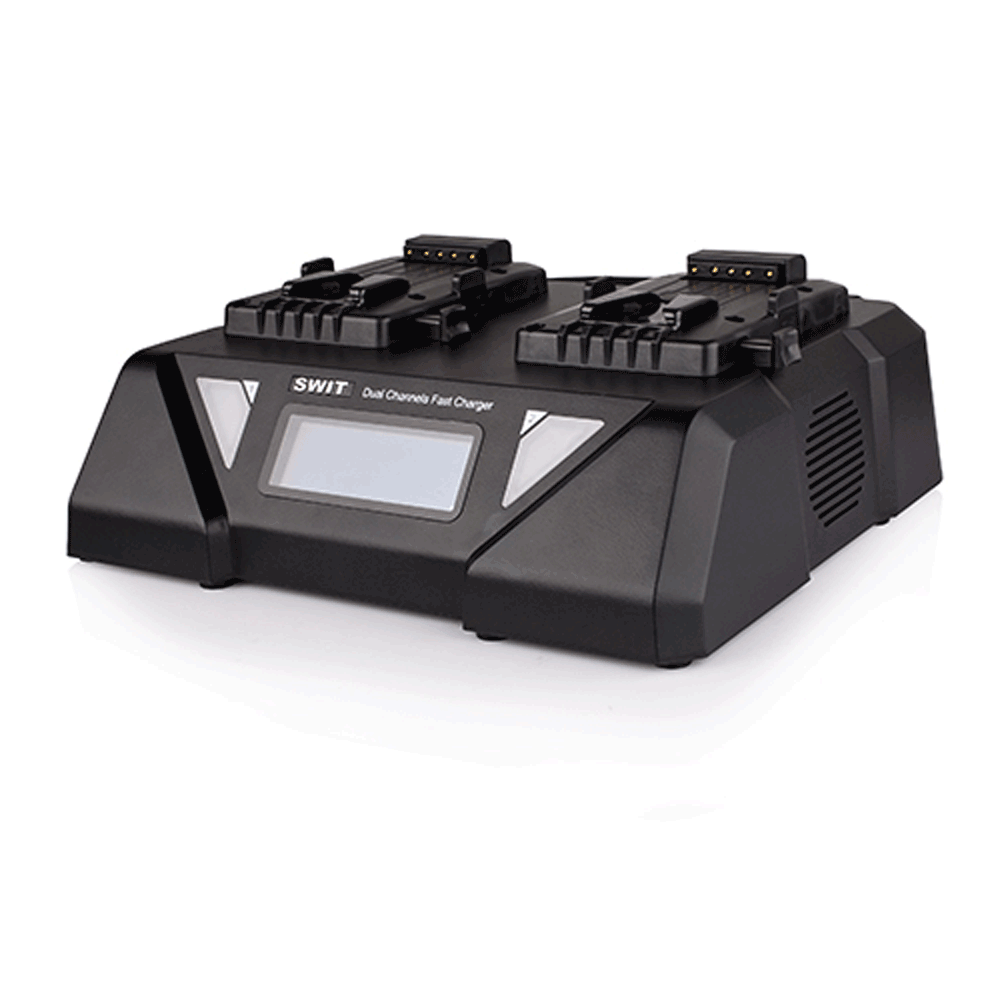

LCD Charging Info Display
S-3812S has an LCD screen to display the real time charging/adapting information, includes:
  Battery Charging/Discharging status
  Real time capacity and percentage
  Real time Voltage/Current
  Remaining time to fully charged
  Remaining time to fully discharged
  Battery cycle times
  Adapting output current and power

Remark: The battery info display only available with SWIT digital Li-ion batteries: S-8320S; S-8340S; S-8360S; D-8161S/R. For other non-digital batteries, the charger will only display real time voltage and current.

3-color LED Indicators
S-3812S has the 3-color LED indicators for both 2 channels:
Red light slowly flashes: The battery is charging
Red light fast flashes: The battery is about to fully charged
Green light constant: The battery is fully charged
Green light flashes: The battery is adapting output
Orange light flashes: Battery or Charger abnormal alert
