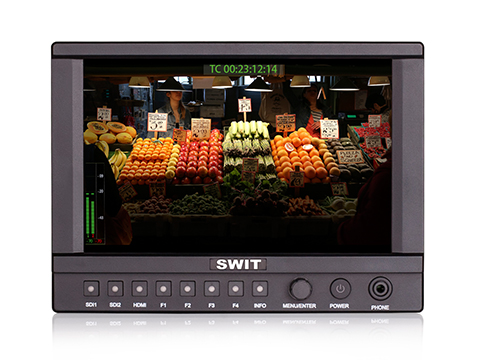

SWIT S-1073H 7" 4K LCD monitor

Tento produkt už není v naší nabídce. Vyberte se prosím z alternativ níže.
Popis produktu SPECIFIKACE OBSAH BALENÍ

Popis produktu

SWIT S-1073H je 7" 4K/HD LCD monitor s rozlíšením 1920×1200 a podporou 2K/3G/HD/SD-SDI na SDI vstupe (+loop výstup) a 4Kp60 na HDMI vstupe (+loop výstup).

S-1073H

7-inch Full HD 4K-HDMI LCD Monitor

  • 7” non-glaring LCD, 1920×1200 resolution
  • 2K/3G/HD/SD-SDI input & loop output
  • HDMI 2.0 (4K60p) input & loop output
  • 16-ch embedded audio meters with alert
  • Select any 2 audio channels to output
  • 9 steps quick zoom-in and mapping
  • Focus assist with precision adjustment
  • Build-in multi-camera logs to Rec.709
  • User 3DLUT cube file import by USB
  • On-screen TALLY display and GPI
  • Zebra stripes, False color, R/G/B/Mono
  • H/V delay, AFD, Timecode display
  • Marker 4:3, 13:9, 14:9, 15:9, 1.85:1, 2.35:1
  • 6.5-36V wide input voltage
  • V/Gold mount or various DV plates option
  • USB firmware upgrade

7-inch Full HD LCD

TFT panel with LED backlight

The S-1073H adopts a 7-inch LCD panel with LED backlight, The native resolution is Full HD 1920×1200, contrast 1000:1, and viewing angle is Horizontal: 160° / Vertical: 160°

Input/Output Interfaces

3G-SDI?4K-HDMI

S-1073H monitor supports:
2K/3G/HD/SD-SDI input × 2
2K/3G/HD/SD-SDI loop output × 1
HDMI 2.0 (4K60p) input × 1
HDMI 2.0 (4K60p) loop output × 1
3.5mm SDI/HDMI embedded audio output

3DLUT Log to Rec709

User LUT cube import

S-1073H monitor has built-in camera logs to Rec 709 conversion LUTs, including Log-C, C-log, S-log2, S-log3, V-log, J-log1, RedLogFilm.
You can also import own 3DLUTs to monitor by USB stick, support 17x17x17 3DLUT cube files.

Embedded audio monitoring

Up to 16-ch meters with alert and select output

S-1073H supports SDI-16ch and HDMI-2ch embedded audio meters display, with marks and audio abnormal alert info. Users can also select any 2 channels audio to output via 3.5mm socket or speakers. The audio meter pattern position can be selected from one of four corners, and you can select to display only 2 channels, 8 channels, and full 16 channels. Also scale markers, alert info, and translucent of the audio meter pattern are selectable.

On-screen Tally


S-1073H supports on-screen TALLY display, and the TALLY control signal inputs via GPI(RS485) port on the rear panel of the monitor.

Various DV Plate Install

V-mount / Gold mount / DV mount

S-1073H supports DC 6.5-36V input via a 5.5mm lockable DC socket, and can install SWIT S-7006 series V-mount / Gold mount / DV battery plates to power:

Model of plate Compatible batteries
S-7006A Gold mount (Antonbauer) batteries
S-7006S V-mount batteries
S-7006F SONY NP-F970/770, SWIT S-8972, S-8970
S-7006U SONY BP-U60/U30, SWIT S-8U63, S-8U93
S-7006D Panasonic D54/D28, VW-VBD58, SWIT S-8D58, S-8D98,S-8D62
S-7006B Panasonic VW-VBG6, SWIT S-8BG6
S-7006V JVC BN-VF823, SWIT S-8823
S-7006I SSL-JVC50, SWIT S-8i50
S-7006C Canon BP-945/970G, SWIT S-8845, S-8945
S-7006E Canon LP-E6, SWIT S-8PE6

USB Firmware Upgrade

The monitor provides a standard USB port on the rear panel, for firmware upgrade. Users can download the latest firmware file to a USB stick, and directly insert into S-1073H monitor to upgrade, without PC connection.

Foldable Sun Hood

For outdoor using, the S-1073H provides a sun hood that is foldable designed and magnetic installation to the monitor.


OBSAH BALENÍ

Simple package includes:

  • 1x Foldable sun hood
  • 1x D-tap to lockable pole DC cable
  • 1x Battery plate (V-mount or Gold mount or snap-on DV mount optional)
  • 1x Cold shoe / 1/4” bolt ball head

SPECIFIKACE

Input Video Formats

S-1073H supports the following input video formats:

HDMI 4096×2160p (60 / 50 / 30 / 25 / 24)
3840×2160p (60 / 50 / 30 / 25 / 24)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)
480i/ 576i / 480p / 576p
SDI SMPTE 2048-2 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
2048×1080i (60 / 59.94 / 50)
SMPTE-425M 1080P (60 / 59.94 / 50)
SMPTE-274M 1080i (60 / 59.94 / 50)
1080p (30 / 29.97 / 25 / 24 / 23.98)
SMPTE-RP211 1080psf (30 / 29.97 / 25 / 24 / 23.98)
SMPTE-296M 720p (60 / 59.94 / 50)
SMPTE-125M 480i (59.94)
ITU-R BT.656 576i (50)




















Parametry

Parametry

Výrobce: Swit
Kategorie: Studiové monitory

Hlavní parametry

Velikost7"
Vstupy monitoruHDMI
Vstupy monitoruSDI
Vstupy monitoru4K HDMI
Napájení monitoru12V dutinkový
Svítivost400cd/m2
Rozlišení panelu1920x1200

Ostatní parametry

Další funkceTally
High BrightnessNe
