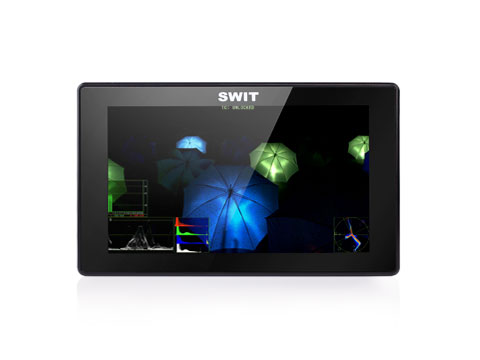

SWIT S-1053F 5,5" HD LCD monitor

SWIT S-1053F je 5,5" tenký LCD monitor s HD rozlíšením 1920×1080 a SDI a HDMI vstupom. Monitor podporuje 2K/3G/HD/SD-SDI na vstupe a dokáže konvertovať vstupný HDMI signál na SDI výstup.

S-1053F

5.5-inch FHD Waveform LCD Monitor

• 5.5” Optical bonding LCD, 1920×1080
• All metal housing, thinner and robust
• 2K/3G/HD/SD-SDI input and loop out
• HDMI input and converted to SDI out
• 16-ch Embedded audio meters with alert
• Select any 2 audio channels to output
• 9-step quick zoom-in and mapping
• Red/blue Focus assist and precision adjust
• Multi-camera logs to Rec709 conversion
• User 3DLUT cube import via USB stick
• Waveform, Vector scope, histogram R/G/B/Y
• AFD, timecode, H/V delay, Zebra stripes
• Marker 4:3, 13:9, 14:9, 15:9, 1.85:1, 2.35:1
• False color, R/G/B/Mono, 100% colorbar
• Various DV battery plate install
• USB firmware upgrade

Input/Output Interfaces

SDI & HDMI

S-1053F monitor supports:
2K/3G/HD/SD-SDI input × 1
2K/3G/HD/SD-SDI loop output × 1
HDMI input × 1 (with lock)
HDMI to SDI output × 1 (share SDI loop port)
Micro USB × 1 (firmware upgrade)
3.5mm analog audio output × 1


Build-in HDMI to SDI Conversion

S-1053F supports build-in HDMI to SDI conversion; share the SDI loop output port. It’s same format conversion and supports the following HDMI formats: 480i, 576i, 720p (60 / 59.94 / 50), 1080i (60 / 59.94 / 50), 1080p (30 / 29.97 / 25 / 24 / 23.98)
Note: When both SDI and HDMI input, if the current display source is SDI, the SDI output port is SDI loop; and if the current display source is HDMI, the SDI output port is HDMI conversion output.


9-step Quick Zoom-in

Up/Down/Left/Right mapping

Assign the zoom-in mode to any of the F keys, and enable zoom-in mode. Scroll the menu key you can quickly zoom in the video by the following rates: 1.2x, 1.5x, 1.8x, 2.0x, 2.4x, 2.6x, 2.8x, 3.0x, without black waiting.
Press the menu key to switch to Left/Right mapping function, and press again to switch to Up/Down mapping, and press again to switch to focus assist precision adjustment. (Enable focus assist function first)


3DLUT Log to Rec709

User LUT cube import
S-1053F monitor has built-in camera logs to Rec 709 conversion LUTs, including Log-C, C-log, S-log2, S-log3, V-log, J-log1, RedLogFilm.
You can also import own 3DLUTs to monitor by USB stick (via Micro-USB OTG), support 17x17x17 3DLUT cube files.


Video Analysis Assistant Pattern

Waveform / Vector scope / Histogram

S-1053F supports video analysis assistant patterns includes: Waveform (Y/Pb/Pr/R/G/B), Vector scope, Histogram (R/G/B/Y), to convert the digital video quality info (Luma, Color, Saturation, etc) to patterns, and the patterns can be switched on/off individually, select display position (Up/Down/Left/Right), size, color, and translucence.

Embedded audio monitoring

Up to 16-ch meters with alert and select output


S-1053F supports SDI-16ch and HDMI-2ch embedded audio meters display, with marks and audio abnormal alert info. Users can also select any 2 channels audio to output via 3.5mm socket or speakers. The audio meter pattern position can be selected from one of four corners, and you can select to display only 2 channels, 8 channels, and full 16 channels. Also scale markers, alert info, and translucent of the audio meter pattern are selectable.


One-key Menu and Function Keys

S-1053F has a Revolve/Push Menu button, with one-button operation for menu system. On the top of the monitor there’re 3 user definable function keys, and under the menu system, press F3 at any time you can quit menu directly.
The F1-F3 support the following functions:
Input source switch, Max backlight, Waveform, Info display, Color temperature, Timecode, Zebra, Vector, Audio meters, Histogram, False color, AFD, H/V delay, R/G/B/Mono, scale markers, Colorbar, Audio alert, Peaking focus assist, Aspect ratio, Scan mode, Zoom mode, Mute, Freeze frame, Flip.

USB Firmware Upgrade

The monitor provides a Micro USB port on the side, for firmware upgrade. Users can download the latest firmware file to a USB stick, and insert into S-1053F monitor (via Micro USB OTG cable) to upgrade, without PC connection.


Various DV Plate Install

5.5mm lockable DC input
S-1053F supports DC 6.5-24V input via a 5.5mm lockable DC socket, and can install SWIT S-7003 series battery plate to be powered by DV batteries:

HDMI Connector with Lock

The HDMI input port of S-1053F is lockable designed. SWIT provides a special HDMI cable with lock for S-1053F monitor, and this HDMI connector can also work with normal standard HDMI cable.

Foldable Sun Hood

For outdoor using, the S-1053F provides a sun hood that is foldable designed and snap-on installation to the monitor.
