SWIT FM-21HDR monitor

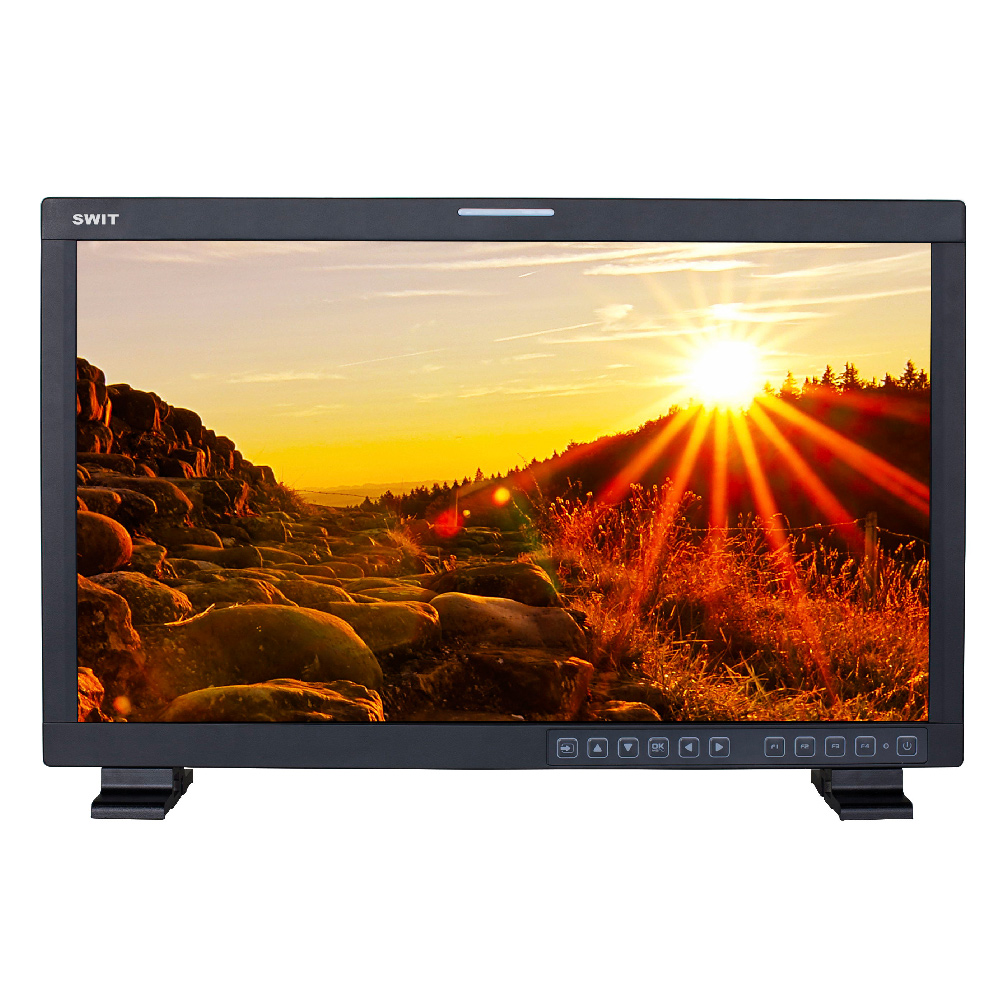

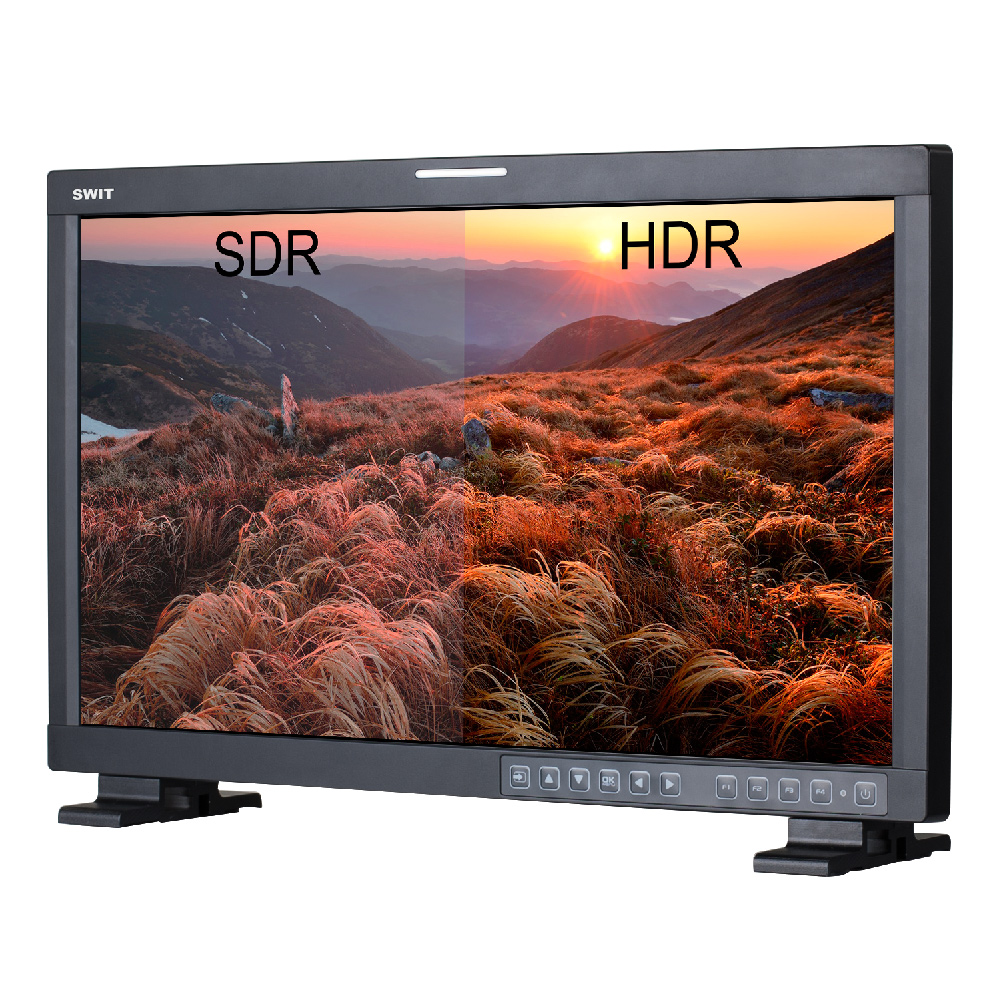

SWIT FM-21HDR je 21.5” vysokosvietivý (High Bright) HDR produkčný monitor s 8-bit LCD panelom s plným HD rozlíšením 1920x1080 pixelov a interným 12-bit spracovaním. Monitor obsahuje 3G/HD/SD-SDI, HDMI a kompozitný vstup, množstvo ďalších funkcií a je vhodný aj na monitoring HDR signálu (HLG/BT.2100 & SMPTE ST 2084/Dolby vision PQ).

SWIT FM-21HDR je 21.5” vysokosvietivý (High Bright) HDR produkčný monitor s 8-bit LCD panelom s plným HD rozlíšením 1920x1080 pixelov a interným 12-bit spracovaním. Monitor obsahuje 3G/HD/SD-SDI, HDMI a kompozitný vstup, množstvo ďalších funkcií a je vhodný aj na monitoring HDR signálu (HLG/BT.2100 & SMPTE ST 2084/Dolby vision PQ).

Základné vlastnosti HDR monitora SWIT FM-21HDR:

• 21.5-inch, 1920×1080, 8-bit LCD, 12-bit process, 1000nits high bright
• 3G/HD/SD-SDI, HDMI, CVBS monitoring
• HDR: HLG/BT.2100 & SMPTE ST 2084/Dolby vision PQ
• Built-in multi cameras De-log LUTs and DIT LUTs upload by USB
• Waveform / Vector / Histogram / 16-ch Audio meters / Timecode
• Peaking / Focus assist / Exposure assist / Zebra / Blue only
• Anamorphic de-squeeze / Multiple markers

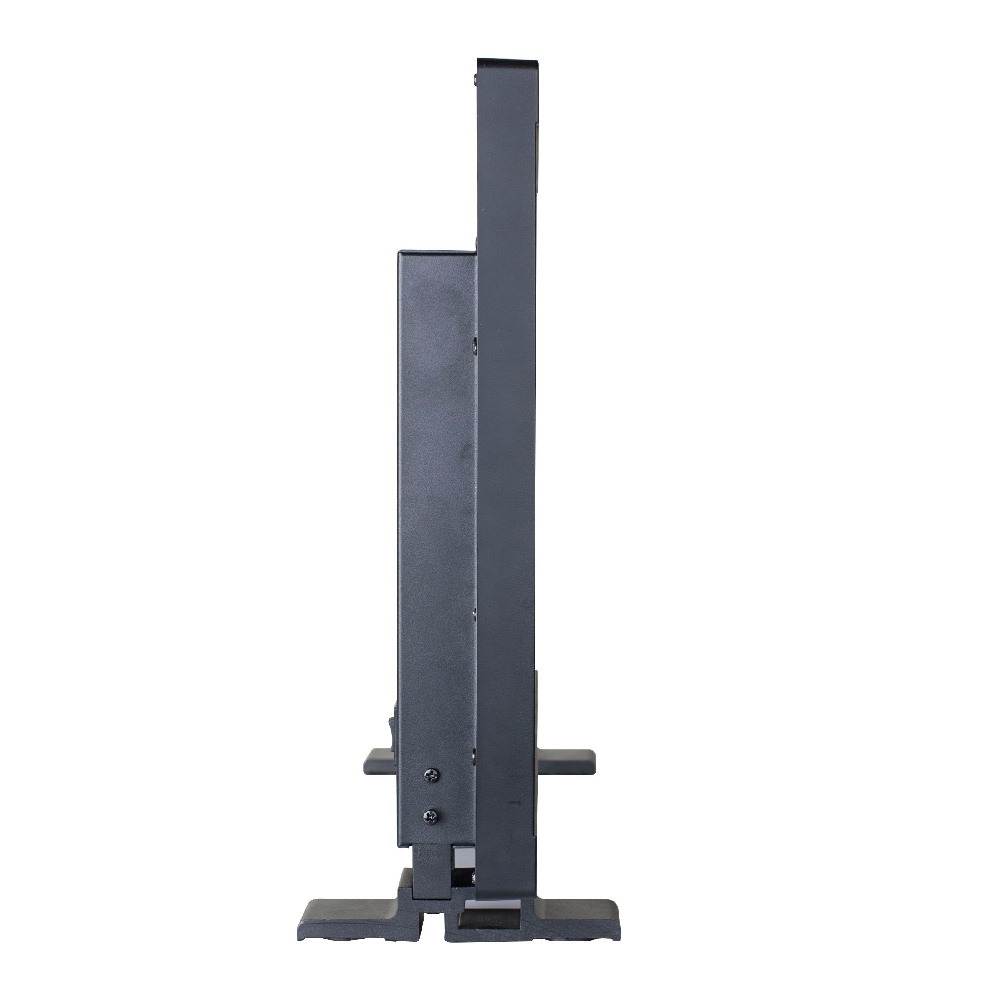

• Portable, light weight and C-stand setup

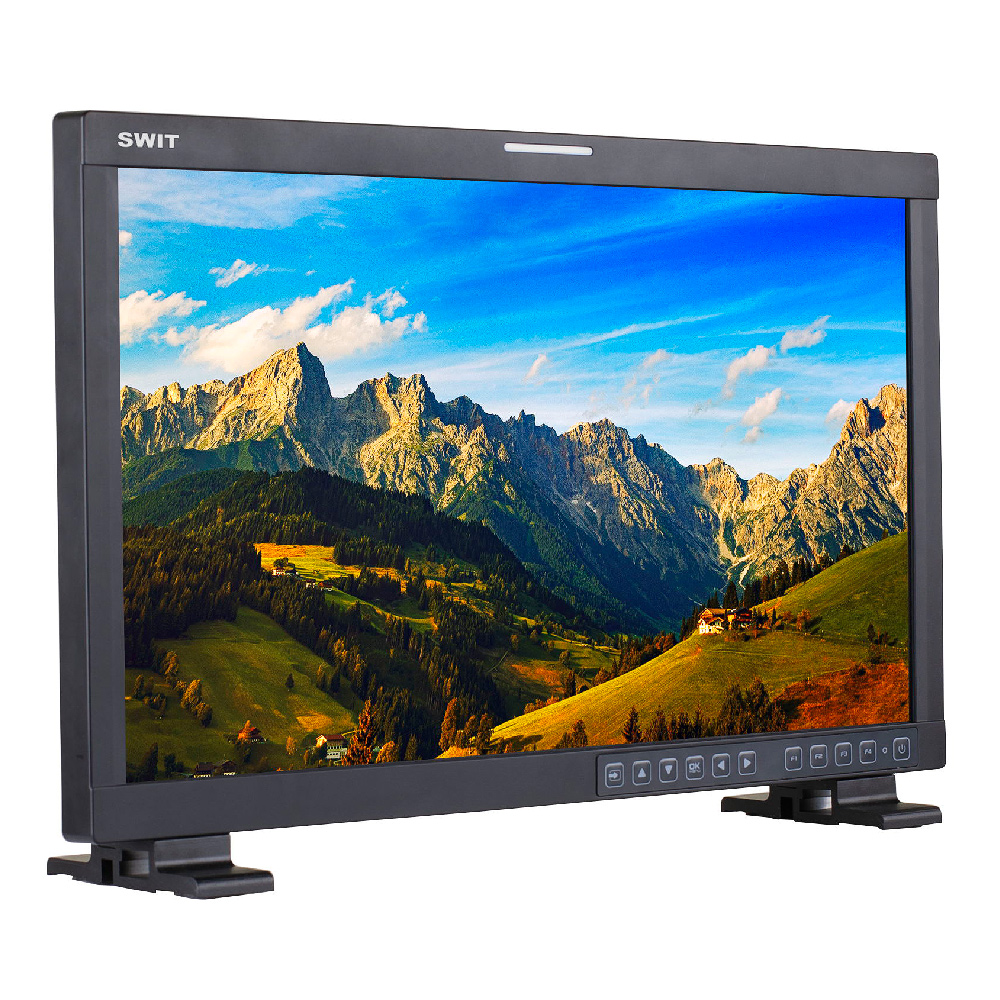

21.5-inch 10-bit FHD LCD

The FM-21HDR monitor adopts a 21.5 inch LCD panel with LED backlight, 1000nits high brightness. The native resolution is Full HD 1920×1080, contrast 1000:1, and viewing angle is Horizontal: 178° / Vertical: 178

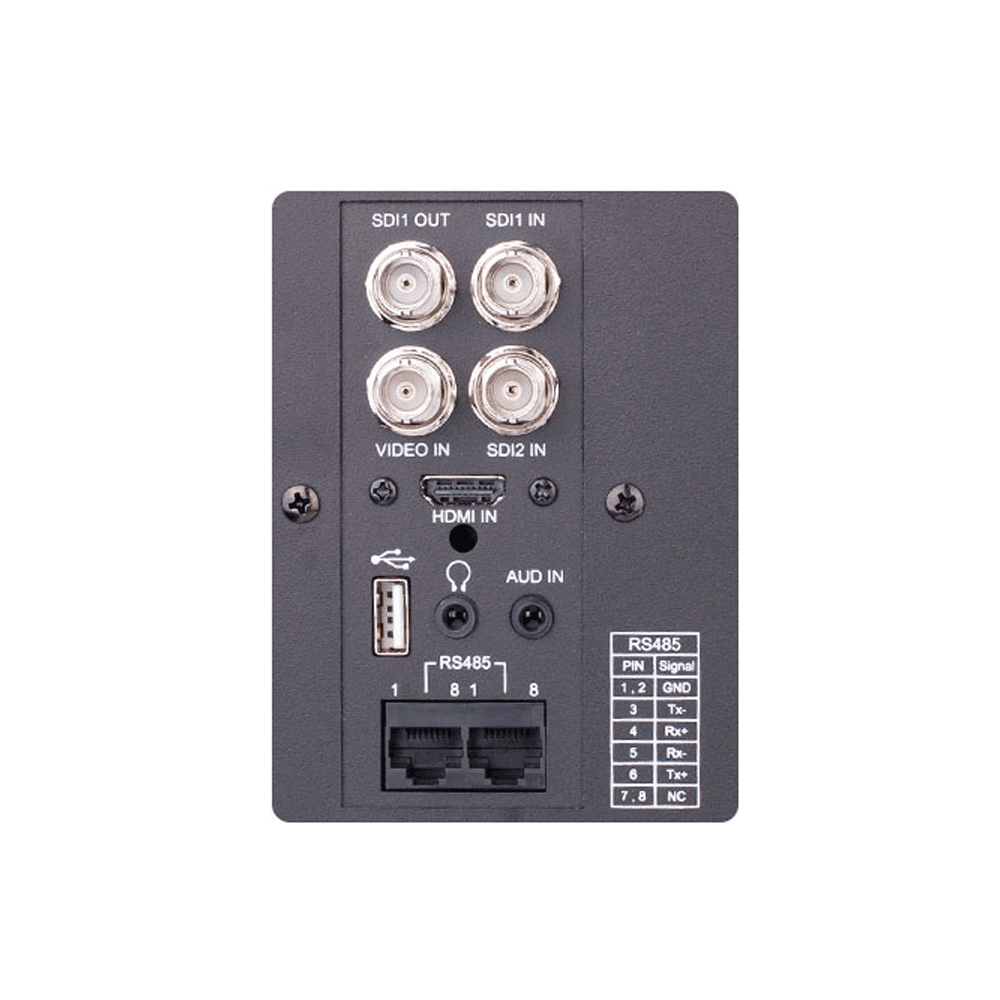

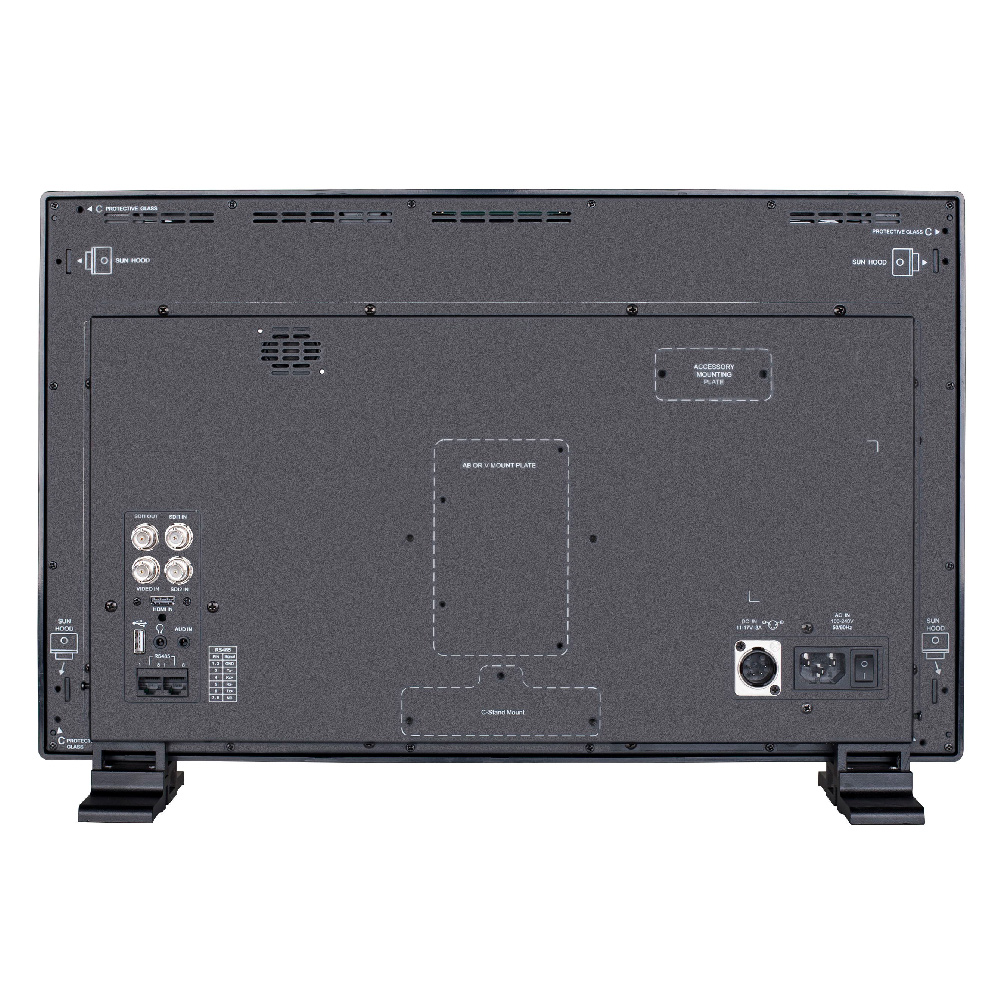

Input/Output Interfaces

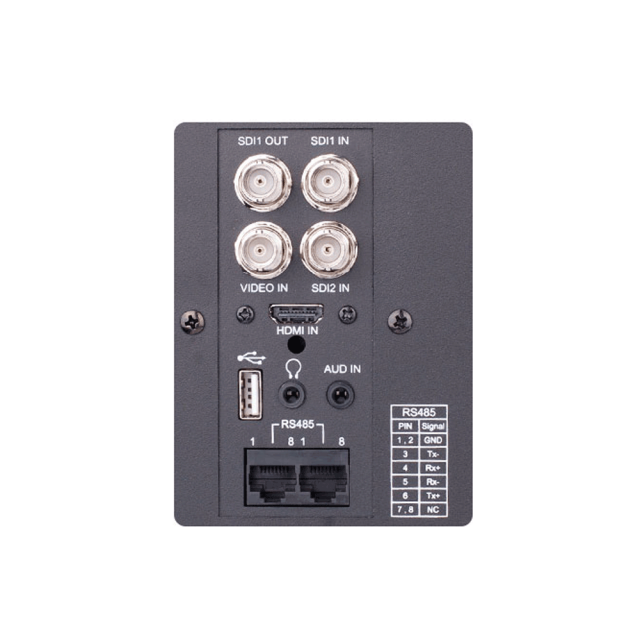

• 3G-SDI, HDMI
• FM-21HDR monitor supports:
• 3G/HD/SD-SDI input × 2
• 3G/HD/SD-SDI loop output × 1
• HDMI 1.3 input × 1
• 3.5mm analog audio input × 1
• 3.5mm analog audio output × 1
• RS485 UMD input × 1
• RS485 UMD output × 1
• USB-A LUT/Firmware input × 1

HDR Capable

With 1000nit high brightness, FM-21HDR can display HLG and Dolby Vision PQ HDR image by switching the HDR curves for different cameras.
Support:

Built-in De-log 3DLUTs

DIT user 3DLUT cube upload

FM-21HDR provides more than 20 De-log 3DLUTs to convert log mode to REC709 for all major cameras.
Includes ARRI, RED, SONY, Panasonic, Canon, JVC, BMD, FujiFilm, GoPro, DJI. And the user 3DLUT cube or calibrated 3DLUT cube can be uploaded by USB stick.

Video Analysis Assistant Pattern

Waveform / Vector scope / Histogram

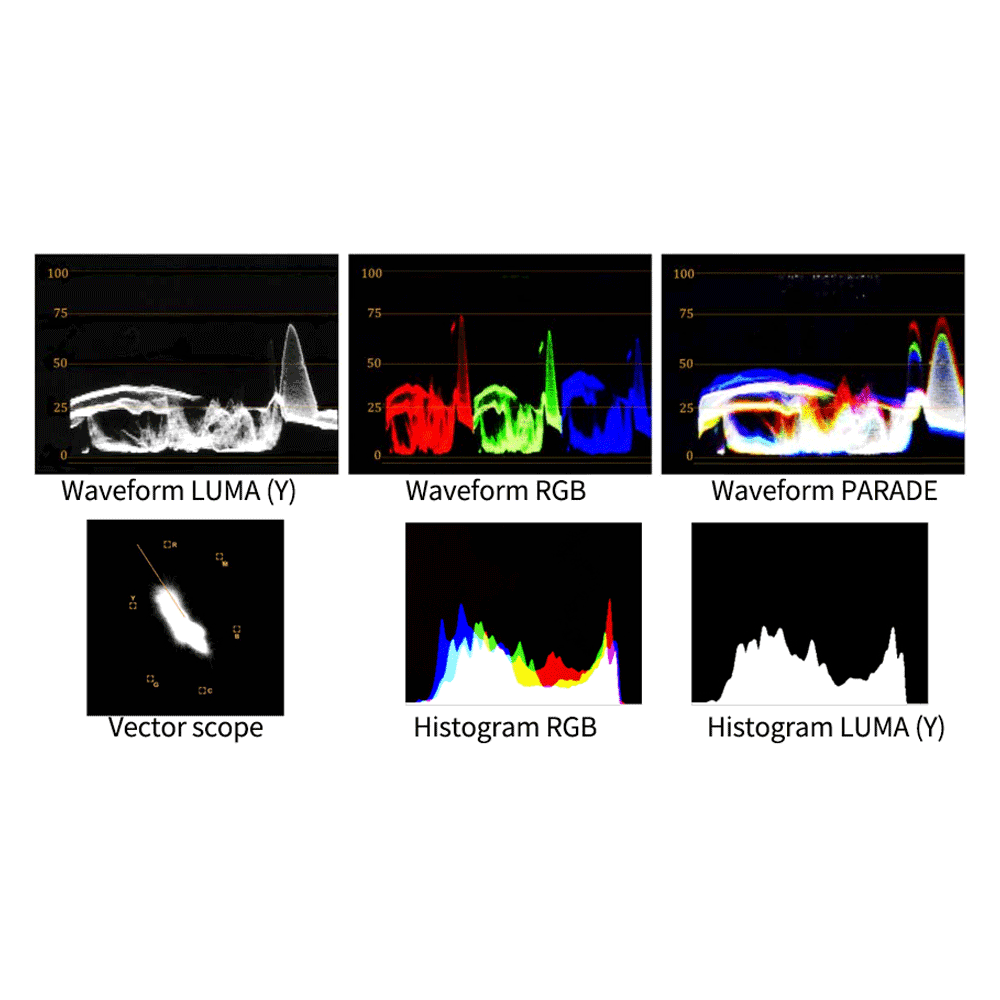

FM-21HDR supports video analysis assistant patterns includes: Waveform (Y/Pb/Pr/R/G/B), Vector scope, Histogram (R/G/B/Y), to convert the digital video quality info (Luma, Color, Saturation, etc) to patterns, and the patterns can be switched on/off individually, select display position (Up/Down/Left/Right), size, color, and translucence.

Embedded audio monitoring

Up to 16-ch meters

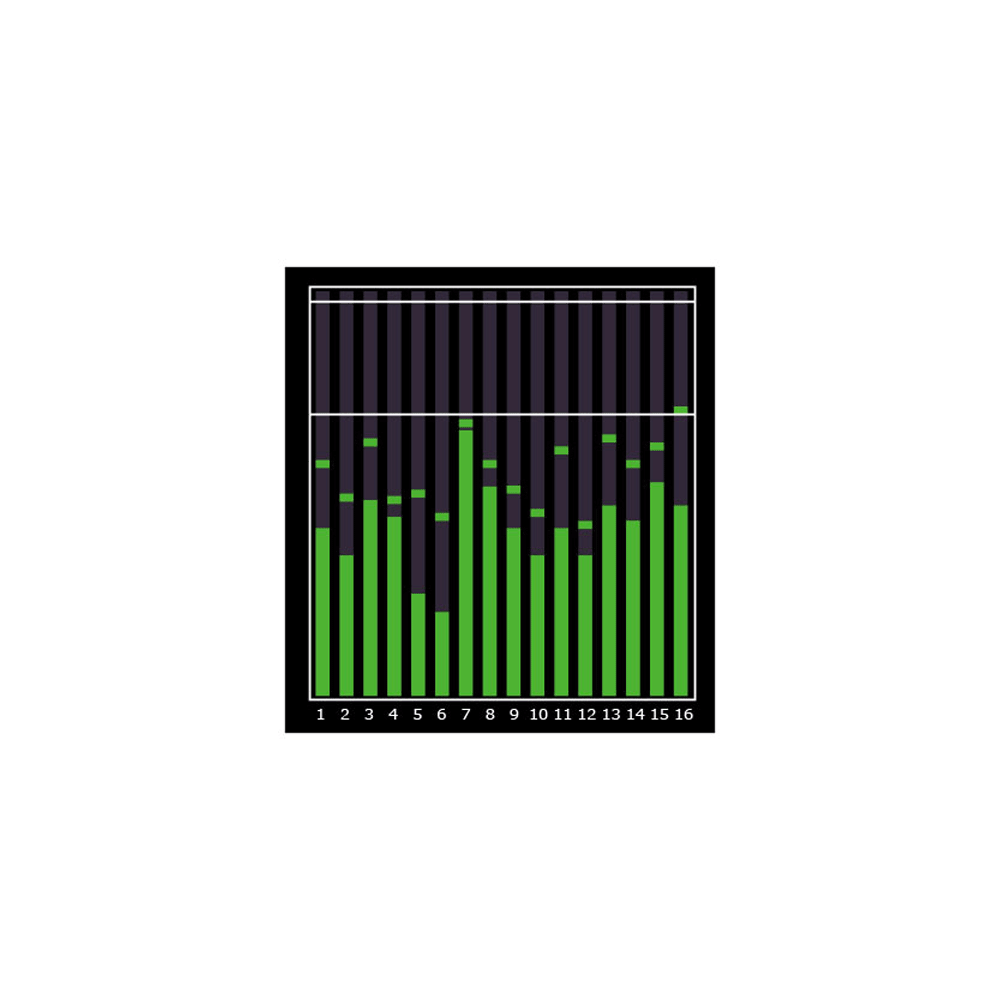

The monitor can display 16-ch embedded audio meters.
The display mode can be:
1. CH1-2
2. CH1-16
3. CH1-4 and CH5-8
4. CH1-4 and CH9-12
5. CH1-4 and CH13-16
6. CH5-8 and CH9-12
7. CH5-8 and CH13-16
8. CH9-12 and CH13-16

Function Keys Assign

4 User Presets of Function Keys restore

There’re 4 F-keys to assign different functions, and you can make independent assignments and restore in 4 User Profiles.
Long Press F1/U1, F2/U2, F3/U3, F4/U4 button to recall User 1/2/3/4 with different F1/2/3/4 assignments.

Anamorphic de-squeeze

Enables de-squeeze the image from a camera utilizing anamorphic lens, Aspect Formats:
16x9,
4x3,
x1.3 Anamorphic De-Squeeze
x2.0 Anamorphic De-Squeeze
x2.0 MAG Anamorphic De-Squeeze

TSL UMD and TALLY

FM-21HDR supports TSL 3.1 and 4.0 protocol UMD display and front TALLY light via RJ45 (RS485) port in the rear panel, input and output.
The available functions are:

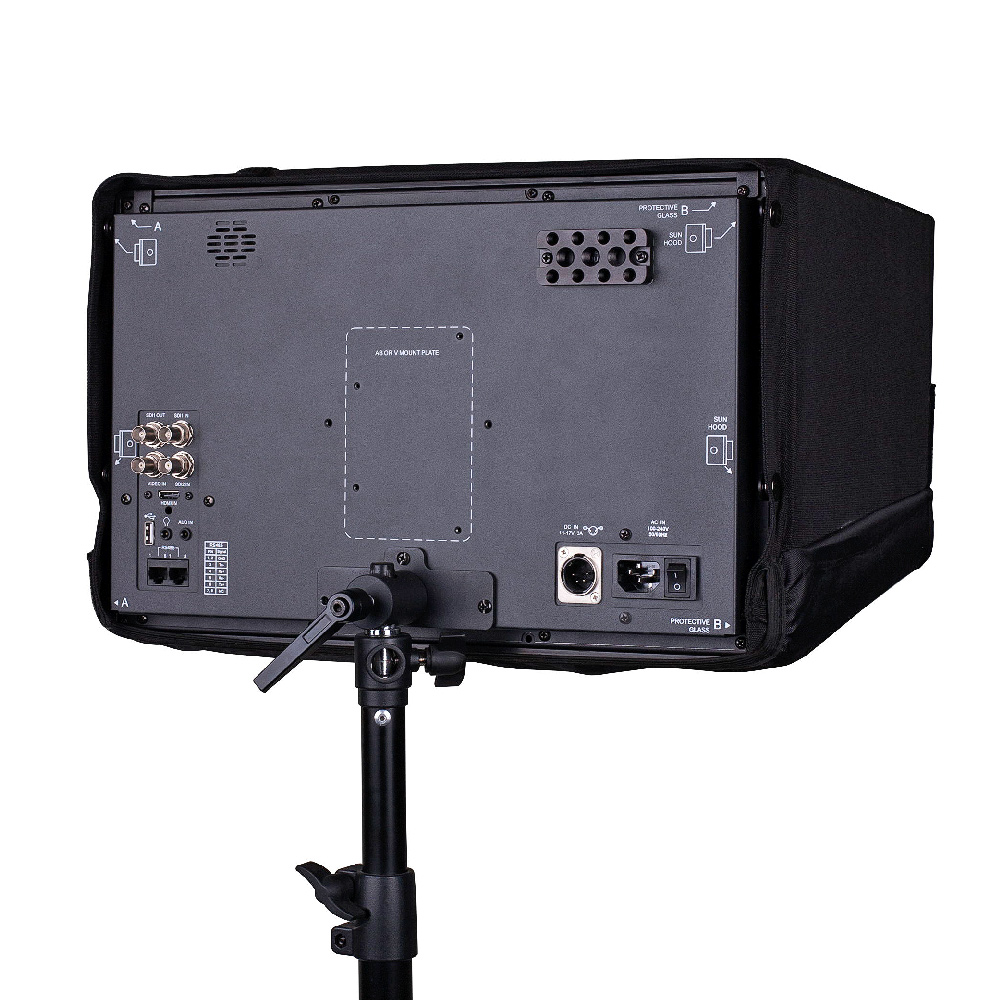

Various Power Input

V-mount / 4-pin XLR / AC

FM-21HDR provides 11-17V 4-pin XLR input and 100-240V AC input. A V-mount plate is pre-installed so that you can attach V-mount battery to power the monitor via D-tap to 4-pin XLR cable. The power consumption is 48W.

• 3G-SDI, HDMI
• FM-21HDR monitor supports:
• 3G/HD/SD-SDI input × 2
• 3G/HD/SD-SDI loop output × 1
• HDMI 1.3 input × 1
• 3.5mm analog audio input × 1
• 3.5mm analog audio output × 1
• RS485 UMD input × 1
• RS485 UMD output × 1
• USB-A LUT/Firmware input × 1
• ARRI Log-C HLG Rec2020
• ARRI Log-C PQ Rec2020
• Canon C-log2Cin HLG Rec2020
• Canon C-log2Cin PQ Rec2020
• Canon C-log3Cin HLG Rec2020
• Canon C-log3Cin PQ Rec2020
• Panasonic V-Log HLG Rec2020
• Panasonic V-Log PQ Rec2020
• RED L3G10 HLG Rec2020
• RED L3G10 PQ Rec2020
• SONY S-Log3 Cin HLG Rec2020
• SONY S-Log3 Cin PQ Rec2020
• SONY S-Log3 SG3 HLG Rec2020
• SONY S-Log3 SG3 PQ Rec2020
