SWIT CURVE500 HDMI 150m bezdrôtový set

SWIT CURVE500 je kompletný set na 5.1-5.9GHz HDMI bezdrôtový prenos obrazu a zvuku až na vzdialenosť 150 metrov.

CURVE500 HDMI 500ft/150m Wireless System

• KUWI 5.1-5.9GHz Wireless Technology
• DFS Comply
• HDMI input and loop output
• 500ft/150m (Line-of-Sight) distance
• Strong Wall-Cross Performance
• 2-ch HDMI audio transmission
• Auto detecting wireless environment and switching
• Support 3-4 pairs working in one location
• Wireless protocol & content double encryption

KUWI Wireless Technology
HDMI 500ft / 150m, Not Wifi

CURVE500 wireless system is based on SWIT latest KUWI wireless technology, NOT WIFI, 5.1-5.9GHz license free bands, DFS comply, supports HDMI 1080p60 transmit 500 feet (150 meters) Line-of-Sight distance. The system is pure hardware con- nection, plug and play.

Input & Output

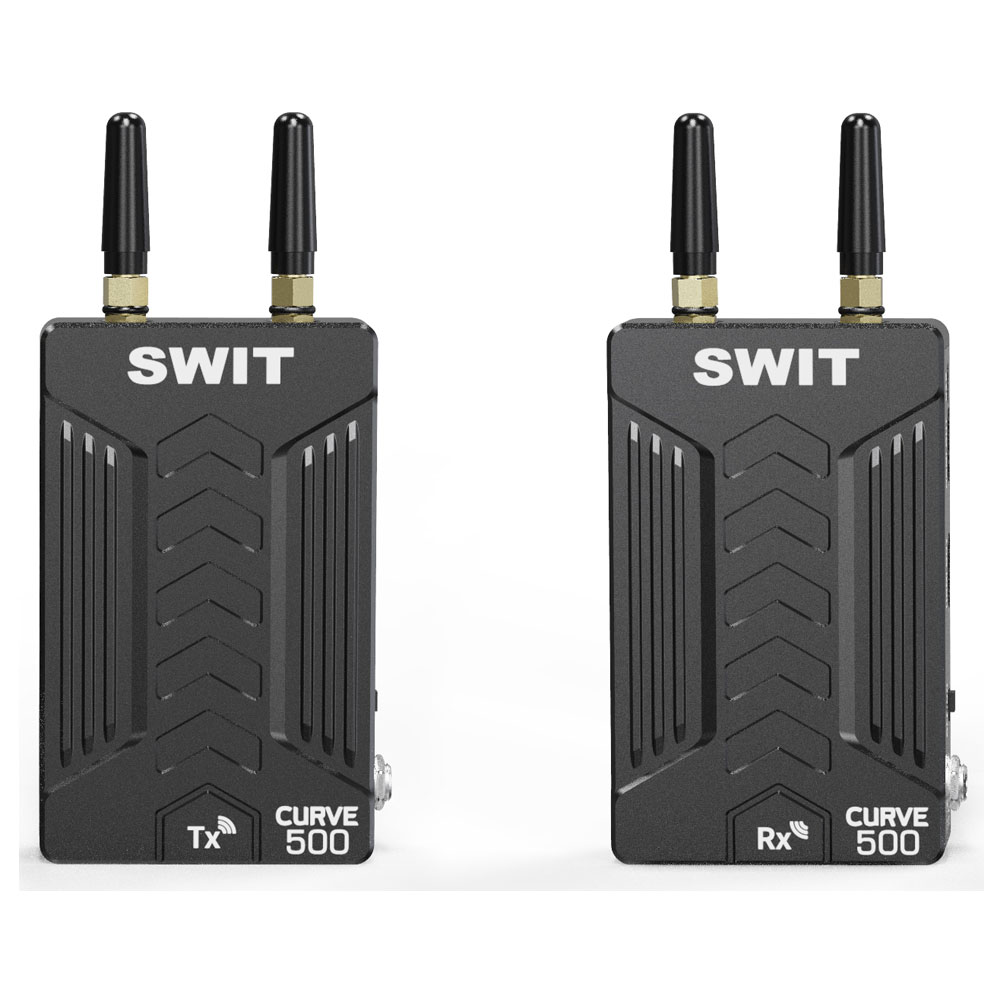

The Transmitter (Tx) has 2 omni antennas, supports
1x HDMI input
1x HDMI loop output

The Receiver (Rx) has 2 omni antennas, supports
2x HDMI output

HDMI formats:
1080p60, 1080p59.94, 1080p50
1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30;
1080psf23.98, 1080psf24
1080i60, 1080i59.94, 1080i50;
720p60, 720p59.94, 720p50

500ft/150m Transmission
Strong Wall-cross Performance

CURVE500 wireless supports 500ft/150m (Line-of-sight) reliable wireless transmission, and featured stronger wall-cross performance due to both RF optimize and image quality optimize, so that will keep video transmission without date lost or crash comparing to regular 5GHz wireless transmitters.
* Supports HDMI embedded audio (CH1&2) transmission.

Auto Frequency Channel Switching
DFS Comply

CURVE500 works between 5.1-5.9GHz, with built-in wireless scanner, detect wireless condition of all frequencies, and automatically jump to the best wireless channel to keep reliable connection and transmission, and DFS comply.

Built-in NP-F battery plate
Both Transmitter and Receiver has built-in NP-F battery plate, and support DC 7-17V pole-tap input.
The power consumption is: Transmitter 7.5W, Receiver 7W.

Stable Connection at Worst Wireless Environment
CURVE500 adopts professional KUWI 5GHz wireless technology, can keep connected at any complex wireless environment, such as sports stadium, concert, public plaza where full of people, electronic devices or wifi routers.

USB Firmware Update
CURVE500 wireless provides a Micro USB port, supports OTG USB Firmware update for future more functions.
