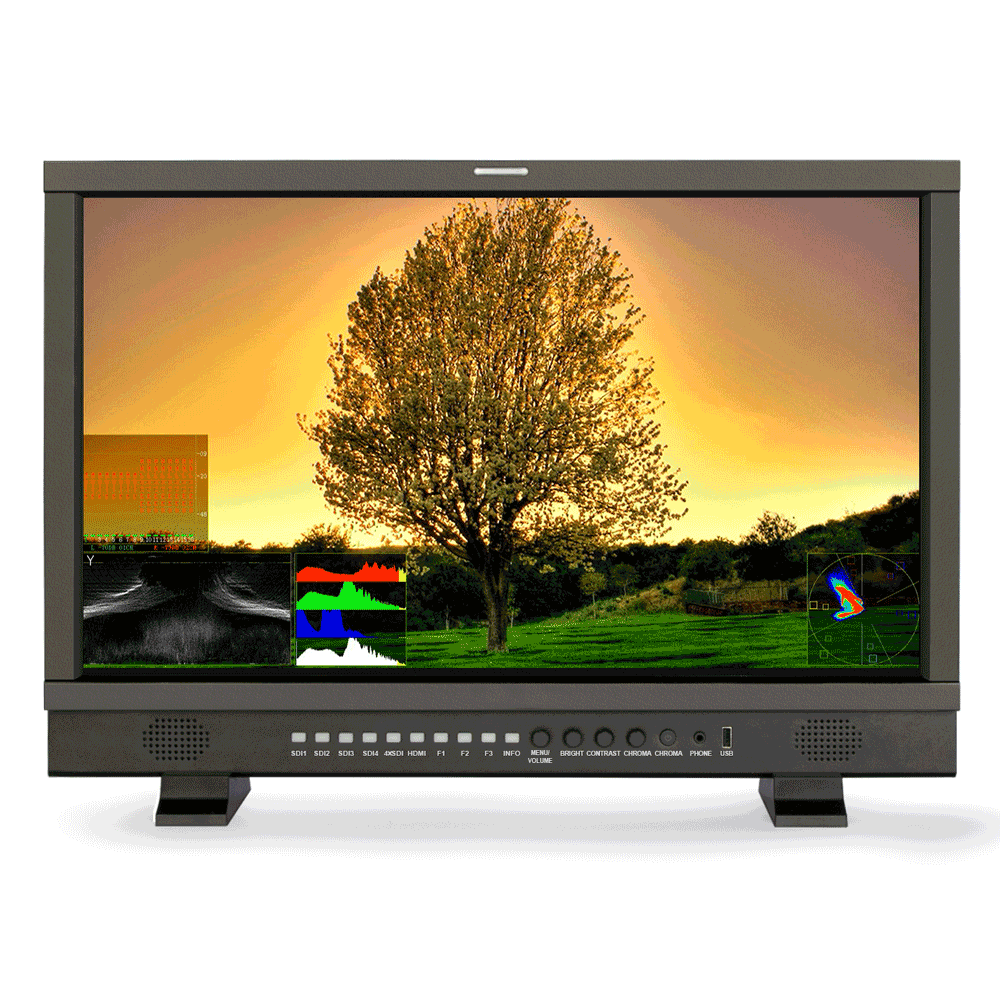

SWIT BM-U243 4K 12GSDI Studio LCD Monitor 23,8"

BM-U243 23.8-inch 4K 12GSDI Studio LCD Monitor

Více informací

151 220 Kč 99 795 Kč s DPH 82 475 Kč bez DPH
-+
Dostupnost
3-5 dnů
Výrobce
Doprava zdarma při nákupu tohoto produktu
Kód zboží:
BM-U243
Přidat do porovnání
Popis produktu

Popis produktu

BM-U243 23.8-inch 4K 12GSDI Studio LCD Monitor

  • 23.8-inch LCD Panel, 3840×2160 resolution
  • 12G-SDI / Quadlink 3G-SDI / HDMI2.0
  • SFP Fiber 12G input converted to 12GSDI out
  • 3DLUT Auto Self-calibration without PC
  • Audio/Video 0 latency for lip-sync
  • HLG/PQ HDR capable
  • Built-in Multi camera Delog LUTs
  • User 3DLUTs upload via USB
  • Waveform / Vector / Histogram
  • Focus assist / False color / Zebra
  • 16-ch audio meters / Lissajous
  • IP webserver remote control
  • TSL UMD and text TALLY display
  • USB firmware upgrade

23.8-inch 4K LCD Monitor

UHD panel, 94.1% DCI-P3

BM-U243 adopts a 23.8 -inch 10-bit LCD panel, UHD 3840×2160 resolution, 300nit LED backlight, 1000:1 contrast, 100% REC709 and 94.1% DCI-P3 color gamut. The viewing angle is Horizontal: 178° / Vertical: 178°.


Multi 4K Interfaces

BM-U243 Monitor supports the following 4K interfaces:

12GSDI (SDI 1&2)
Quadlink 3GSDI (SDI 1-4)
HDMI 2.0 (4K60P)
SFP Fiber 12G (Output by 12GSDI)

* The Quadlink 3GSDI supports both Quad mode and 2SI interleave mode;
* The SFP optical fiber adaptor is optional purchased.


HDR Monitoring

BM-U243 support HLG (Hybrid Log Gamma) and Dolby Vision PQ HDR monitoring.


3DLUT Auto Self-Calibration

By X-rite i1 or JETI Specbos 1211

With built-in 3DLUT calibration software, (software copyright) support X-rite i1 and Jeti Specbos 1211 probes to directly connect with the monitor USB port.
The monitor generates color patterns and the color probes read the color, send color info to monitor via USB. Then the monitor compares the color difference and generate 3DLUT and calibrate itself automatically.
Calibration time: X-rite i1 15min, Specbos 1211 45min
Calibration result: ?E<=1.0


Audio/Video Zero Latency

Support Zero latency mode (less than 1/100 frame) under 4K input sources, for special image processing mode for lip-sync monitoring.


De-log 3DLUTs

User 3DLUT cube upload
The monitor has built-in multi camera logs to Rec 709 conversion 3DLUTs, including Log-C, C-log, S-log2, S-log3, V-log, J-log1, RedLogFilm.
You can also import own 3DLUTs to monitor by USB stick, support 17x17x17 3DLUT cube files.


Video Analysis Patterns


Audio Meters and Lissajous

Support Max 16-ch embedded audio meters display, with VU/PPM, and display audio abnormal alert. Support select any 2 channels audio to output via speaker or 3.5mm headphone socket. Support audio Lissajous pattern display for post production.


Webserver IP Remote Control

BM-U243 supports webserver remote control by Ethernet LAN connection.
Use computer web browser to open the monitor control panel, and select input sources, adjust picture parameters, set up video / audio functions and assign function keys, etc, without install any APP.


Parametry

Parametry

Výrobce: Swit
Kategorie: Studiové monitory
OBSAH BALENÍ

  • S-7004S (V-mount) / S-7004A (Gold mount) plate
  • Desktop feet


SPECIFIKACE

LCD Performance
Size 23.8 inches
Display area 518.4×324mm
Resolution 3840×2160
Aspect ratio 16:9
Brightness 300nit
Contrast 1000:1
Color depth 1.073G colors, 10 bit
Signal process 18 bit
Viewing 178°(H)/178°(V)
Input
BNC ×2 12G/6G/3G/HD/SD-SDI input
BNC ×2 3G/HD/SD-SDI input
HDMI ×1 HDMI 2.0 input
SFP ×1 Optical Fiber 12G input (By optional SFP adaptor)
RS485 ×1 TSL 3.1/4.0 UMD input
RS485 ×1 GPI (Tally) input
RJ45 ×1 1000M Ethernet input for Webserver IP control
Output
BNC ×2 12G/6G/3G/HD/SD-SDI loop output, SFP Fiber input to 12G output
BNC ×2 3G/HD/SD-SDI loop output
RS485 ×1 TSL 3.1/4.0 UMD output
Analog audio 3.5mm headphone and speaker
Video Format
SDI 1&2, SFP 4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
2048×1080i (50 / 59.94 / 60)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
1080psf (30 / 29.97 / 25 / 24 / 23.98)
720p (60 / 59.94 / 50)
480i (59.94)
SDI 3&4 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
2048×1080i (50 / 59.94 / 60)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
1080psf (30 / 29.97 / 25 / 24 / 23.98)
720p (60 / 59.94 / 50)
480i (59.94) 576i (50)
Quad Link SDI (Each channel) 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
HDMI 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)
General
Input voltage DC 12V-19V, AC 100-240V, 50/60Hz
Power consumption 70W
Working temperature 0°C~+50°C
Working humidity 10%~90%
Storage temperature -15°C~+60°C
Storage humidity 10%~90%
Dimensions 576.2×387.3×97.9mm
Net weight (w/o stand) 9.5kg
