Extension Unit offers multicamera support for PXW-FS7 including Apple ProRes 422 encoding

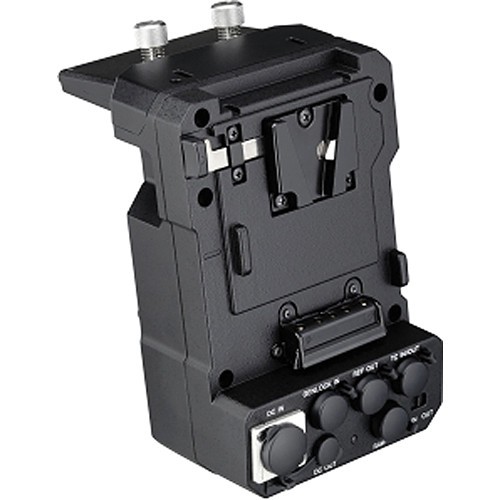

While the PXW-FS7 XDCAM camera comes with internal XAVC and MPEG-2 recording on XQD media you can attach the optional XDCA-FS7 Extension Unit. The box is attachable via a MultiPin connector so there are no hassles about cables. The Extension Unit offers additional I/O connectors like Timecode and Genlock for multi-camera operation or the possibility to use common V-Mount batteries. It also allows RAW data output to record 12-bit RAW footage on the AXS-R5 (in combination with HXR-IFR5), or another third party RAW recorder via the FS RAW Interface. The XDCA-FS7 will encode the video stream into the Apple ProRes 422 codec, which is then recorded on to the internal XQD media.
Apple ProRes 422 recording
A built-in Full HD ProRes encoding function enables ProRes-format recording to an XQD card in the camera.
* Firmware update, early 2015.
Allows 12-bit RAW recording on an external recorder
Camera Interface | 144-pin I/O |
Supported Video Formats | 4K RAW 12-bit 4096x2160 23.98p, 25p, 29.97p, 50p, 59.94p Slow and Quick Motion: 1 to 60 fps 2K RAW 12-bit 2048x1080 23.98p, 25p, 29.97p, 50p, 59.94p Slow and Quick Motion: 240 fps, 120 fps HD ProRes HQ 4:2:2 10-bit 1920x1080 23.98p (176 Mbps), 25p (184 Mbps), 29.97p (220 Mbps) HD ProRes 4:2:2 10-bit 1920x1080 23.98p (117 Mbps), 25p (122 Mbps), 29.97p (147 Mbps) |
Audio Format | 24-bit, 48 kHz, 2-channel |
RAW Output | 1 x BNC |
Genlock | 1 x BNC |
Reference Output | 1 x BNC |
Timecode | 1 x BNC (selectable from input and output) |
DC Input | 1 x 4-pin XLR |
DC Output | 1 x 4-pin Hirose |
Battery Connector | 1 x V-Mount |
