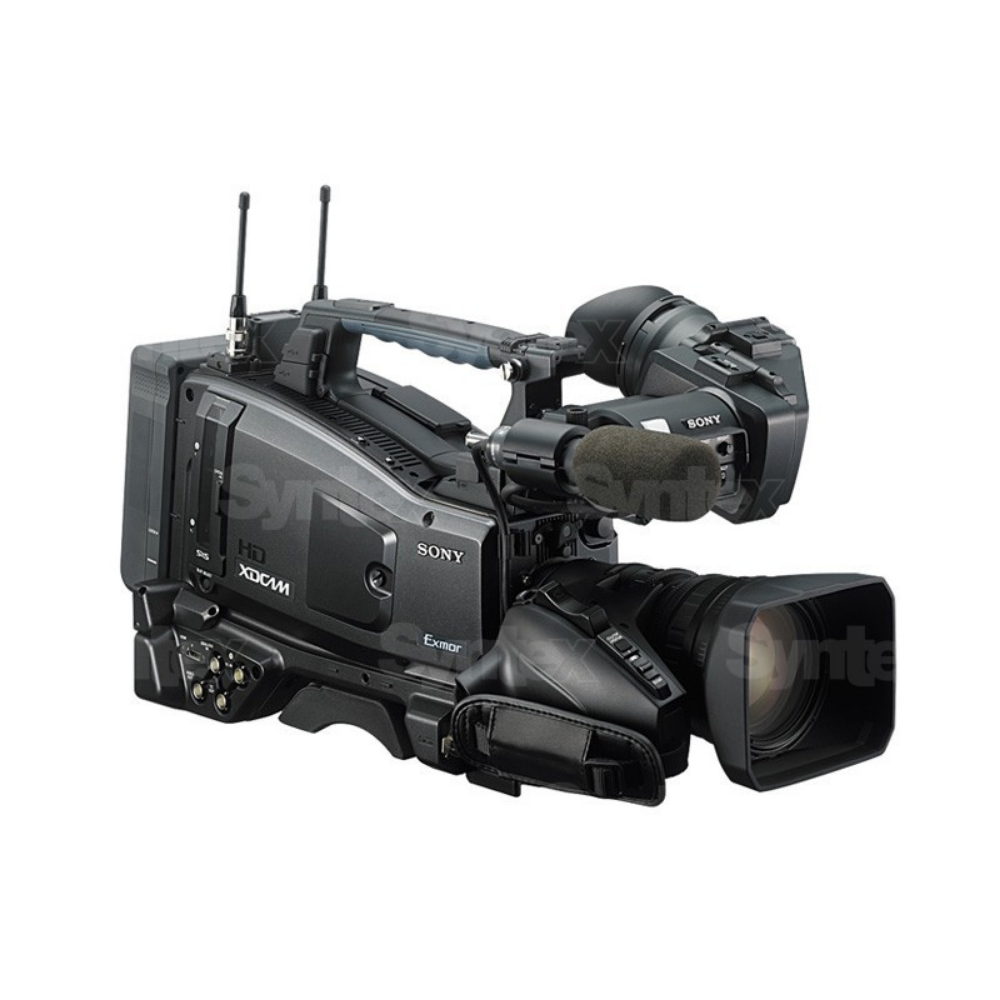

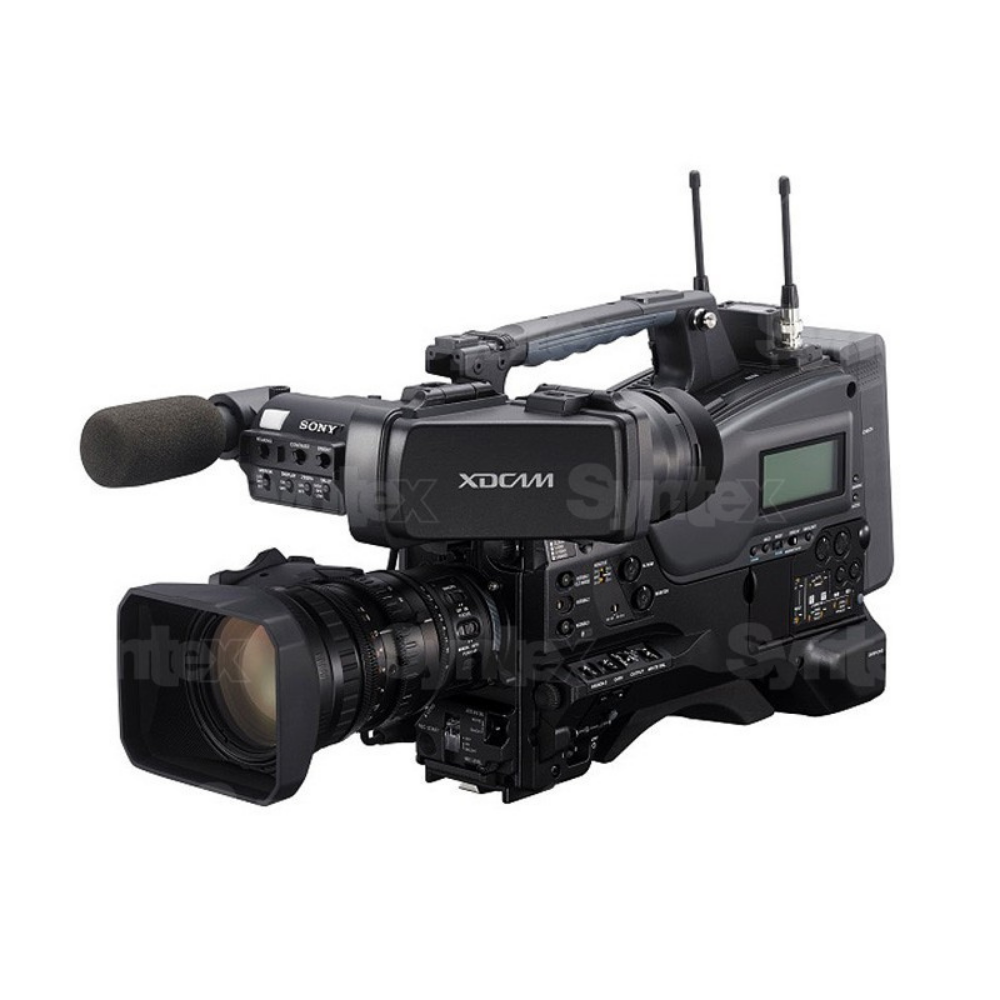

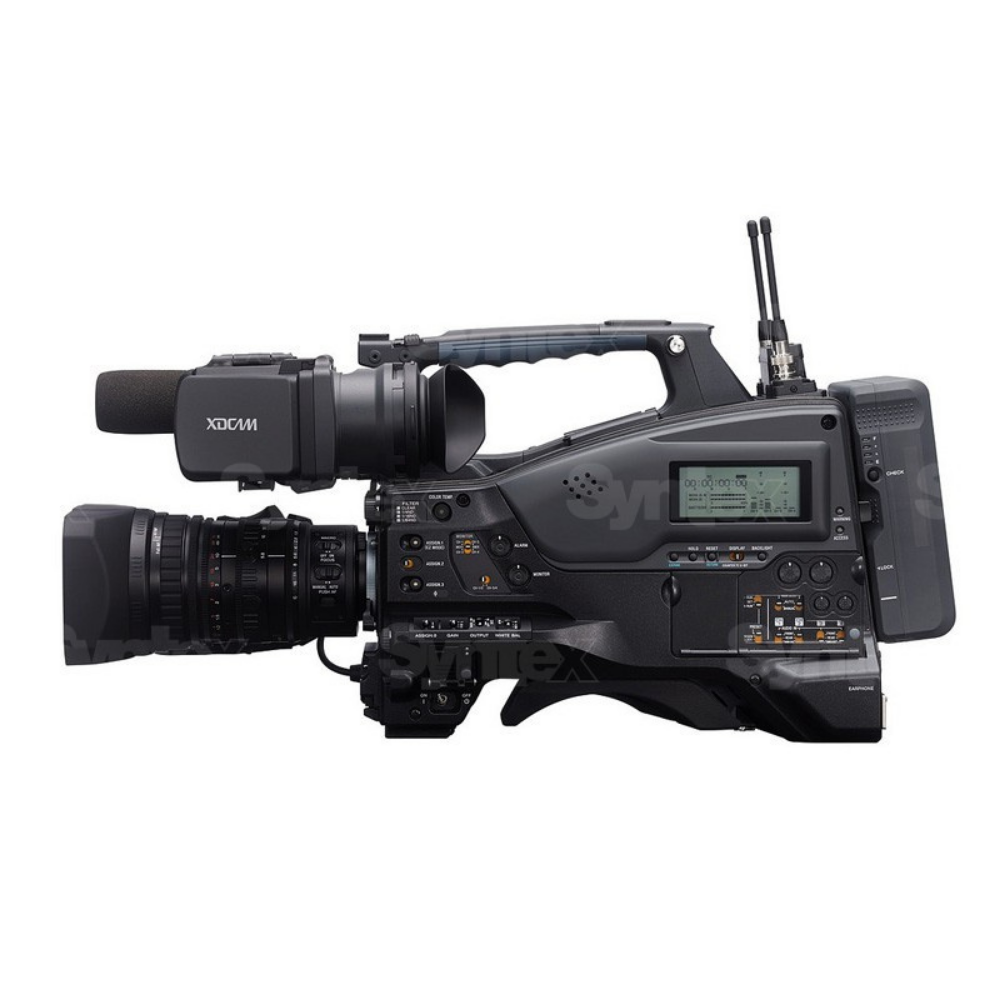

Sony PXW-X320

  • Doprava zdarma
Kód zboží: PXW-X320//U

XDCAM kamera s tromi 1/2-palcovými snímačmi Exmor CMOS vybavená objektívom Fujinon HD so 16x zoomom, záznamom FullHD XAVC 100Mbps a možnosťou bezdrôtového prenosu

Více informací

302 349 Kč s DPH 249 875 Kč bez DPH
Přidat do porovnání Historie ceny
Dostupnost
7-14 dní
Kód zboží:
PXW-X320//U
Přidat do porovnání Historie ceny
Popis produktu

Popis produktu

XDCAM kamera s tromi 1/2-palcovými snímačmi Exmor CMOS vybavená objektívom Fujinon HD so 16x zoomom, záznamom FullHD XAVC 100Mbps a možnosťou bezdrôtového prenosu

ŠPECIFIKÁCIA

  • Záznam obrazu vo vysokej kvalite na karty SxS (až 112 Mbps), vysoká citlivosť (F11 pri 59.94 Hz / F12 pri 50 Hz), nízka hladina šumu (60 dB) a veľký dynamický rozsah
  • Veľký výber formátov a dátových tokov: Full HD (1920 x 1080) 59.94i/50i/29.97p/25p/23.98p aHD (1280 x 720) 59.94p/50p, ako tiež XAVC Intra 100 Mbps, XAVC Long 50 Mbps, MPEG HD422 50 Mbps, MPEG HD 35 Mbps, MPEG IMX 50 Mbps a DVCAM 25 Mbps
  • Široká podpora rozhraní: 2 x SD / HD-SDI, HDMI, USB a i.Link (IEEE 1394)
  • Voliteľný adaptér CBK-WA100 na bezdrôtový prenos zvyšuje flexibilitu pri nakrúcaní kde sa vyžaduje live streaming
  • Kamera sa dodáva s 1/2-palcovým objektívom Fujinon HD so 16x zoomom a funkciou auto-focus

OBSAH BALENÍ

  • hľadáčik (1)
  • popruh na rameno (1)
  • stereo mikrofón (1)
  • veterná ochrana (1)
  • pätica na uchytenie príslušenstva (1)
  • krytka objektívu (1)
  • vzor pre nastavenie "Back Focus" (1)
  • objektív s funkciou "Auto Focus" (1)
  • pokyny "Pred prvým použitím zariadenia" (1)
  • CD-ROM
  • návod na obsluhu (English)
  • návod na obsluhu (Japanese)


SPECIFIKACE

General

Mass Approx. 3.4 kg (body only without lens, VF, Mic)
Approx. 7.9 lb (body only without lens, VF, Mic)
Dimensions (W x H x D) *1 124 x 269 x 332 mm (excluding protrusions, body only)
5 x 10 5/8 x 13 1/8 inches (excluding protrusions, body only)
Power Requirements DC 12 V
Power Consumption Approx. 25W (with viewfinder, lens and microphone while recording)
Operating Temperature 0° C to 40° C
32° F to 104° F
Storage Temperature -20° C to +60° C
-4° F to +140° F
Continuous Operating Time Approx. 194 min with BP-L80S
Recording Format (Video) : XAVC - XAVC-I mode: CBG, 112Mbps max, MPEG-4 AVC/H.264
-XAVC-L50 mode: VBR, 50Mbps, MPEG-4 AVC/H.264
-XAVC-L35 mode: VBR, 35Mbps, MPEG-4 AVC/H.264
-XAVC-L25 mode: VBR, 25Mbps, MPEG-4 AVC/H.26
Recording Format (Video) : MPEG-2 Long GOP    - HD 422 mode: CBR, 50 Mbps max., MPEG-2 422P@HL
- HQ mode: VBR, 35 Mbps max., MPEG-2 MP@HL
- SP mode: CBR, 25 Mbps, MPEG-2 MP@H-14
- SD mode : MPEG IMX, DVCAM
Recording Format (Audio) : - XAVC-I mode: LPCM 24 bits, 48 kHz, 4 channels
-XAVC-L mode:LPCM 24 bits, 48 kHz, 4 channels
-HD 422 50 mode: LPCM 24 bits, 48 kHz, 4 channels
-HD 420 HQ mode: LPCM 16 bits, 48 kHz, 4 channels
-SD MPEG IMX mode: LPCM 16/ 24 bits, 48 kHz, 4 channels
-SD DVCAM mode: LPCM 16 bits, 48 kHz, 4 channels
Recording Format (Audio) : - HD 422 50 mode: LPCM 24 bits, 48 kHz, 4 channels
- HD 420 HQ mode: LPCM 16 bits, 48 kHz, 4 channels
- SD MPEG IMX mode: LPCM 16/ 24 bits, 48 kHz, 4 channels
- SD DVCAM mode: LPCM 16 bits, 48 kHz, 4 channels
Recording Format (Audio) : - HD mode: LPCM 16 bits, 48 kHz, 4 channels
- SD DVCAM mode: LPCM 16 bits, 48 kHz, 2 channels
Recording/Playback Time (MPEG HD) : XAVC-I Mode:
- Approx. 120 min with SBP-128B (128GB) memory card
- Approx. 60 min with SBS-64G1A/SBP-64B (64 GB) memory card
- Approx. 30 min with SBS-32G1A (32 GB) memory card

XAVC-L50 mode:
-Approx. 240 min with SBP-128B (128GB) memory card
-Approx. 120 min with SBS-64G1A/SBP-64B (64 GB) memory card
-Approx. 60 min with SBS-32G1A (32 GB) memory card

XAVC-L35 mode:
-Approx. 340 min with SBP-128B (128GB) memory card
-Approx. 170 min with SBS-64G1A/SBP-64B (64 GB) memory card
-Approx. 85 min with SBS-32G1A (32 GB) memory card
Recording/Playback Time (MPEG HD) : XAVC-L25 mode:
-Approx. 440 min with SBP-128B (128GB) memory card
-Approx. 220 min with SBS-64G1A/SBP-64B (64 GB) memory card
-Approx. 110 min with SBS-32G1A (32 GB) memory card

HD 422 50/ SD MPEG IMX Mode:
-Approx. 240 min with SBP-128B (128GB) memory card
-Approx. 120 min with SBS-64G1A/SBP-64B (64 GB) memory card
-Approx. 60 min with G49SBS-32G1A (32 GB) memory card

HD 420 HQ Mode:
-Approx. 360 min with SBP-128B (128GB) memory card
-Approx. 180 min with SBS-64G1A/SBP-64B (64 GB) memory card
-Approx. 90 min with SBS-32G1A ( 32 GB) memory card
Recording/Playback Time (MPEG HD) : SD DVCAM Mode:
-Approx. 440 min with SBP-128B (128GB) memory card
-Approx. 220 min with SBS-64G1A/SBP-64B (64 GB) memory card
-Approx. 110 min with SBS-32G1A (32 GB) memory card
Recording/Playback Time (MPEG HD) : HD 422 50/ SD MPEG IMX Mode*2:
- Approx. 240 min with SBP-128B (128GB) memory card
- Approx. 120 min with SBS-64G1A/SBP-64B (64 GB) memory card
- Approx. 60 min with G49SBS-32G1A (32 GB) memory card

HD 420 HQ Mode:
- Approx. 360 min with SBP-128B (128GB) memory card
- Approx. 180 min with SBS-64G1A/SBP-64B (64 GB) memory card
- Approx. 90 min with SBS-32G1A ( 32 GB) memory card

SD DVCAM Mode:
- Approx. 440 min with SBP-128B (128GB) memory card
- Approx. 220 min with SBS-64G1A/SBP-64B (64 GB) memory card
- Approx. 110 min with SBS-32G1A (32 GB) memory card
Recording/Playback Time (MPEG HD) : *2 HD HQ Mode:
- Approx. 400 min with SBP-128B (128GB) memory card
- Approx. 200 min with SBS-64G1A/SBP-64B (64 GB) memory card
- Approx. 100 min with SBS-32G1A (32 GB) memory card

HD SP Mode:
- Approx. 560 min with SBS-64G1A (64 GB) memory card
- Approx. 280 min with SBS-64G1A/SBP-64B (64 GB) memory card
- Approx. 140 min with SBS-32G1A (32 GB) memory card

SD DVCAM Mode:
- Approx. 520 min with SBP-128B (128GB) memory card
- Approx. 260 min with SBS-64G1A/SBP-64B (64 GB) memory card
- Approx. 260 min with SBS-64G1A/SBP-64B (64 GB) memory card
Recording Frame Rate : XAVC-I Mode: CBG, 112Mbps max, MPEG-4 AVC/H.264
- 1920 x 1080/ 59.94i, 50i, 29.97p, 25p, 23.98p
- 1280 x 720/ 59.94p, 50p

XAVC-L50 mode: VBR, 50Mbps, MPEG-4 AVC/H.264
- 1920 x 1080/ 59.94i, 50i, 29.97p, 25p, 23.98p
- 1280 x 720/ 59.94p, 50p

XAVC-L35 mode: VBR, 35Mbps, MPEG-4 AVC/H.264
- 1920 x 1080/ 59.94i, 50i, 29.97p, 25p, 23.98p

XAVC-L25 mode: VBR, 25Mbps, MPEG-4 AVC/H.264
- 1920 x 1080/ 59.94i, 50i

HD 422 50 Mode: MPEG-2 422P@HL, 50 MBps/ CBR
- 1920 x 1080/ 59.94i, 50i, 29.97p, 25p, 23.98p
- 1280 x 720/ 59.94p, 50p, 29.97p, 25p, 23.98p
Recording Frame Rate : HD 420 HQ Mode: MPEG-2 MP@HL, 35 MBps/ VBR
- 1920 x 1080/ 59.94i, 50i, 29.97p, 25p, 23.98p
- 1440 x 1080/ 59.94i, 50i, 29.97p, 25p, 23.98p
- 1280 x 720/ 59.94p, 50p, 23.98p (2-3 pull down)

SD MPEG IMX Mode:
- 720 x 486/ 59.94i, 29.97PsF
- 720 x 576/ 50i, 25PsF

SD DVCAM Mode:
- 720 x 480/ 59.94i, 29.97PsF
- 720 x 576/ 50i, 25PsF
Recording Frame Rate : HD 422 50 Mode: MPEG-2 422P@HL, 50 MBps/ CBR
- 1920 x 1080/ 59.94i, 50i, 29.97p, 25p, 23.98p
- 1280 x 720/ 59.94p, 50p, 29.97p, 25p, 23.98p

HD 420 HQ Mode: MPEG-2 MP@HL, 35 MBps/ VBR
- 1920 x 1080/ 59.94i, 50i, 29.97p, 25p, 23.98p
- 1440 x 1080/ 59.94i, 50i, 29.97p, 25p, 23.98p
- 1280 x 720/ 59.94p, 50p, 23.98p (2-3 pull down)

SD MPEG IMX Mode
- 720 x 486/ 59.94i, 29.97PsF
- 720 x 576/ 50i, 25PsF

SD DVCAM Mode:
- 720 x 486/ 59.94i, 29.97PsF
- 720 x 576/ 50i, 25PsF
Recording Frame Rate : HD HQ 1920 Mode: MPEG-2 MP@HL, 35 Mbps/ VBR
- 1920 x 1080/ 59.94i, 50i, 29.97p, 25p, 23.98p

HD HQ 1440 Mode: MPEG-2 MP@HL, 35 Mbps/ VBR
- 1440 x 1080/ 59.94i, 50i, 29.97p, 25p, 23.98p

HD HQ 1280 Mode: MPEG-2 MP@HL, 35 Mbps/ VBR
- 1280 x 720/ 59.94p, 50p, 29.97p, 25p, 23.98p

HD SP 1440 Mode: MPEG-2 MP@H-14, 25 Mbps/ CBR
- 1440 x 1080/ 59.94i, 50i, 23.98p (2-3 pull down)

SD DVCAM Mode
- 720 x 480/ 59.94i, 29.97PsF
- 720 x 576/ 50i, 25PsF

Lens

Lens Mount Sony 1/2-inch type bayonet mount
Zoom Ratio 16x (optical), servo/manual (AF lens for PXW-X320)
Focal Length f = 5.8 mm to 93 mm (equivalent to 31.4 mm to 503 mm on 35 mm lens)
Iris F1.9 to F16 and Close, Auto/Manual selectable
Focus AF/MF/Full MF selectable
800 mm to ? (MACRO OFF)
50 mm to ? (MACRO ON, Wide)
782 mm to ? (MACRO ON, Tele)
Filter Diameter M82 mm, pitch 0.75 mm (on lens)

Input/Output

Genlock Input BNC (x1)
Timecode Input BNC (x1)
Audio Input XLR-type 3-pin (female) (x2), Line/Mic/Mic +48 V selectable
Mic Input XLR-type 5-pin
SDI Output BNC (x2), HD-SDI/SD-SDI selectable
Video Output BNC (x1) HD-Y or Analog composite
Audio Output XLR-type 5-pin
Timecode Output BNC (x1)
Earphone Output Stereo mini jack (x1)
Speaker Output Monaural
DC Input XLR-type 4-pin
DC Output 4-pin
Lens 12-pin
Remote 8-pin
Light 2-pin
i.LINK IEEE 1394, 6-pin (x1), HDV (HDV 1080i )/DVCAM stream input/output *3 , S400
USB USB device B Type (x1), host A Type (x1)
HDMI A type (x1)

Camera Section

Imager 3-chip 1/2-type "Exmor" Full HD CMOS
Effective Picture Elements 1920 (H) x 1080 (V)
Optical System F1.6 prism system
Built-in Optical Filters 1: Clear, 2: 1/4ND, 3: 1/16ND, 4: 1/64ND
Shutter Speed (Time) 1/60 sec to 1/2,000 sec + ECS (Extended Clear Scan)
Shutter Speed (Slow Shutter (SLS)) 2, 3, 4, 5, 6, 7, 8, 16, 32, 64-frame accumulation
Slow & Quick Motion Function 720p: Frame rate selectable from 1 fps to 60 fps
1080p: Frame rate selectable from 1 fps to 30 fps
Sensitivity (2000 lx, 89.9% reflectance) F11 (typical) (1920 x 1080/59.94i mode)
F12 (typical) (1920 x 1080/50i mode)
Minimum Illumination 0.04 lx (typical) (1920 x 1080/59.94i mode, F1.6, +42 dB gain, with 64-frame accumulation)
White Balance Preset (3200K), Memory A, Memory B/ATW
Gain Selection -3, 0, 3, 6, 9, 12, 18, 24 dB
S/N Ratio 60 dB (Y) (typical)
Horizontal Resolution 1,000 TV lines or more (1920 x 1080i mode)

Viewfinder

Viewfinder 3.5-inch *4  type color LCD monitor: 960 (H) x 540 (V), Quarter HD Size

Other Equipment

Built-in LCD Monitor Black & White LCD (Audio level, TC, battery and media remaining capacity)
Built-in Speaker 1

Parametry

Parametry

Výrobce: SONY
Kategorie: Broadcast

Hlavní parametry

Velikost snímače kamery1/2"
RozlišeníFull HD
RozlišeníHDV (720p)
RozlišeníSD PAL
Zoom16x
Typ bajonetuEX mount
VýstupHDMI
VýstupSDI
VýstupAnalog

Ostatní parametry

Provedenína rameno
Formát záznamuXAVC-Intra
Formát záznamuXAVC-Long
Formát záznamuXDCAM EX
Formát záznamuMPEG IMX
Formát záznamuMPEG HD
Formát záznamuDVCAM
FPSHD 60fps
FPSHD 50fps
FPSSD PAL 50i
FPSHDV 50/60fps
Světelnost objektivu1.9f
Min. ohnisková vzdálenost5.8mm
Max. ohnisková vzdálenost93mm
Typ médiaSxS
Typ baterieV-mount
Barevná hloubka8 bit
Barevná hloubka10 bit
Průměr filtru82mm
Další funkceWRR (Slot In Audio)
Další funkceTimecode
PŘÍSLUŠENSTVÍ (12)

Audio

  • -39 %
  • Doprava zdarma

Sony URX-S03D (K42)

7-14 dní
bez DPH 24 875 Kč 30 099 Kč

Sony UWP-D21

K odeslání 1 ks
bez DPH 13 875 Kč 16 789 Kč
  • Doprava zdarma

Sony UWP-D27 K21

K odeslání 1 ks
bez DPH 32 875 Kč 39 779 Kč
  • -11 %

Sony UWP-D22

7-14 dní
bez DPH 13 875 Kč 16 789 Kč

Baterie, nabíjení, zdroje

  • Doprava zdarma

Sony BP-GL95B

7-14 dní
bez DPH 16 999 Kč 20 569 Kč
  • -12 %
  • Doprava zdarma

Sony BC-L70A

7-14 dní
bez DPH 17 225 Kč 20 842 Kč

Příslušenství, klece tašky, karty

Sony SBAC-US30 SxS Card Reader/Writer

Na cestě > 5 ks
bez DPH 6 175 Kč 7 472 Kč

Sony 64 GB SxS-1 C

7-14 dní
bez DPH 8 975 Kč 10 860 Kč

SanDisk Extreme PRO SDXC UHS-I 64GB 170MB/s

K odeslání 4 ks
bez DPH 675 Kč 817 Kč

MxM Express MxM Card (adapter only)

Skladem > 5 ks
bez DPH 1 310 Kč 1 585 Kč

Světla

Sony HVL-LBPC

7-14 dní
bez DPH 13 600 Kč 16 456 Kč

CONST ST-LBPS1800

Skladem 1 ks
bez DPH 4 080 Kč 4 937 Kč
ALTERNATIVNÍ (1)
  • -13 %
  • Doprava zdarma

Sony PXW-X400 (telo)

7-14 dní
bez DPH
377 999 Kč 457 379 Kč
Navštívené zboží (1)
