Sonnet Echo Express SE III (Thunderbolt 3)

Sonnet Echo Express SE III (Thunderbolt 3 Edition) je externý box slúžiaci na pripojenie až troch (Full-height, Half-length+) PCIe kariet k počítačom vybaveným rozhraním Thunderbolt 3. Zariadenie tak umožňuje pripojiť PCIe karty aj k notebookom alebo k stolovým počítačom, kde z nejakého dôvodu PCIe kartu nie je možné inštalovať na základnú dosku.

Více informací

17 544 Kč s DPH 14 499 Kč bez DPH
-+
Dostupnost
Praha 1 ks, Bratislava skladem do 2 dnů
Výrobce
Kód zboží:
ECHO-EX-SE3E-T3
Přidat do porovnání
Popis produktu

Popis produktu

Sonnet Echo Express SE III (Thunderbolt 3 Edition) je externý box slúžiaci na pripojenie až troch (Full-height, Half-length+) PCIe kariet k počítačom vybaveným rozhraním Thunderbolt 3. Zariadenie tak umožňuje pripojiť PCIe karty aj k notebookom alebo k stolovým počítačom, kde z nejakého dôvodu PCIe kartu nie je možné inštalovať na základnú dosku.

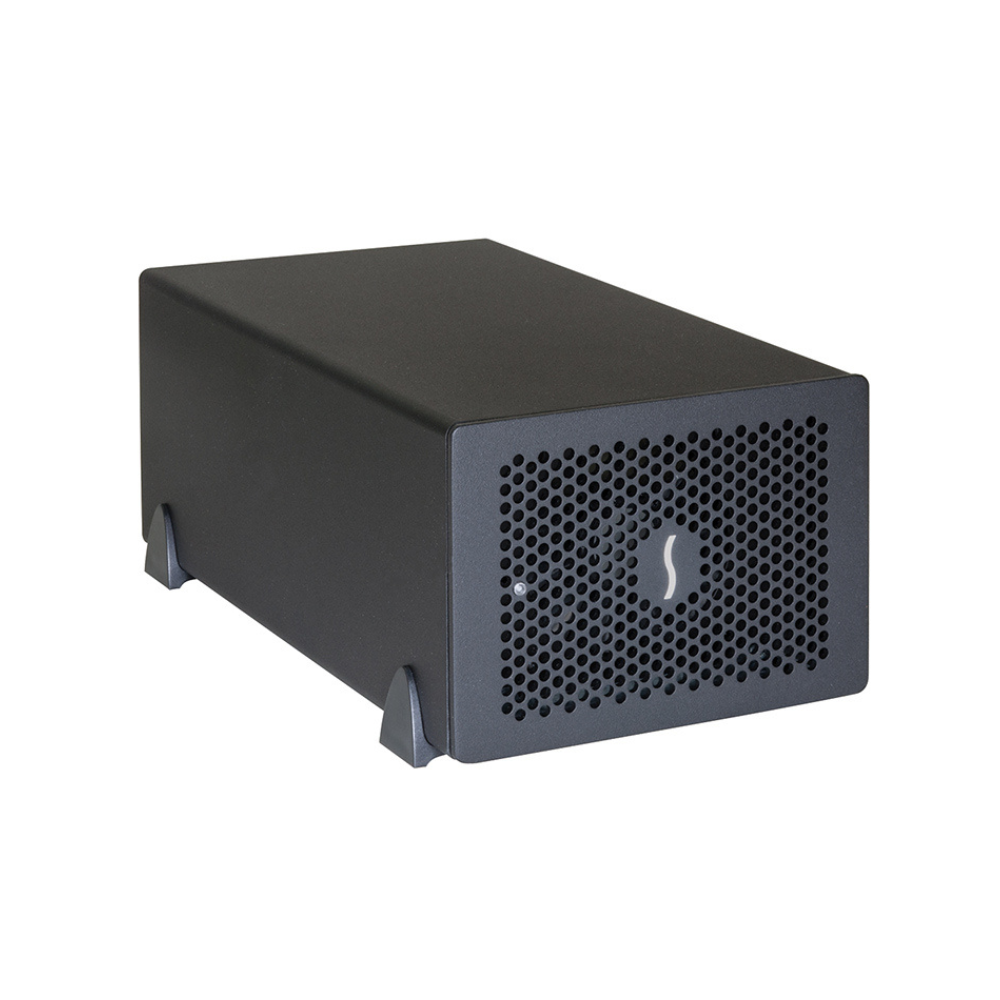

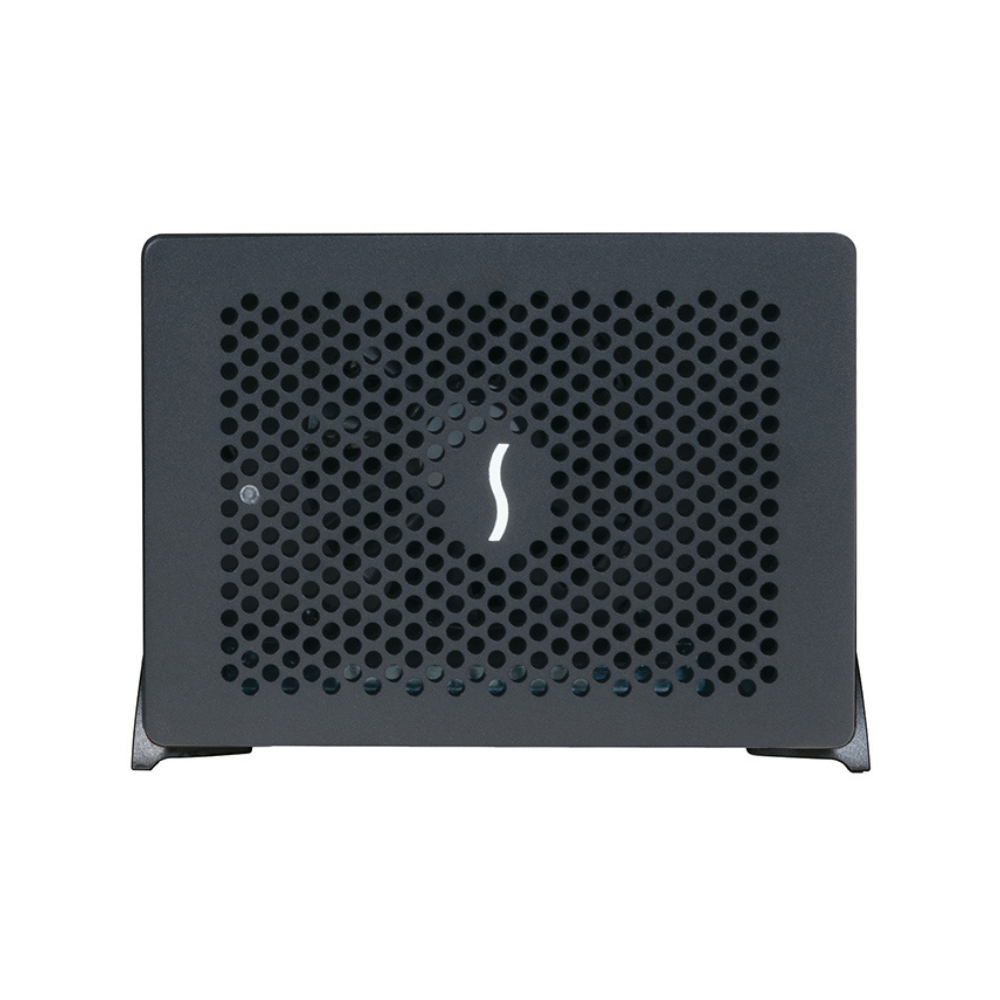

Although thin Mac®, Windows®, and Linux® computers with Thunderbolt™ 3 ports offer processing power to spare, for many users (such as pros in the creative fields) onboard processing power alone is not enough. Sonnet’s Echo™ Express SE IIIe is a compact, desktop Thunderbolt™ 3 to PCIe card expansion system that enables you to connect three professional PCIe cards at the same time to any computer with Thunderbolt 3 ports.

The Thunderbolt 3 Connection
This compact desktop expansion system supports three professional PCIe cards (video capture; audio DSP; 6Gb or 12Gb SAS or SATA host bus adapter; 10Gb, 25Gb, or40Gb Ethernet; or RAID controller; etc.) and connects them to your computer through a single Thunderbolt 3 cable.

Key Features

PCIe Card Icon

Connect PCIe Cards

Use multiple high-performance PCIe cards with any computer with a Thunderbolt 3 port.

Number 3 Icon

Three PCIe 3.0 x8 Slots

Supports three full-height, half-length+ (up to 7.75 inches long), single-width cards, or one double-width card plus one single-width card.

40Gbps Icon

40Gbps Thunderbolt 3 Interface

Offers 2750 MB/s of PCIe bandwidth, doubling the performance capabilities of Thunderbolt 2.

Performance Icon

Pro Performance. Compact Design.

Takes up little space on the desktop, but large enough to support nearly every Thunderbolt-compatible non-GPU PCIe card at full performance.

Thunderbolt 3 Ports Icon

Two Thunderbolt 3 Ports

One port connects to computer; second port supports daisy-chaining of up to five additional Thunderbolt peripheral devices.

Sound Icon

Remarkably Quiet

Temperature-controlled,variable-speed fan automatically and quietly cools the cards.

Energy Saver Icon

Energy Saver Mode

Powers on/off automatically with the computer.

Rugged Icon

Rugged Aluminum Housing

Provides robust and secure protection.

Power Icon

Pro Power

NEW - Auxiliary PCIe power connector for a power-hungry card; daisy chain port provides up to 15W of power to connected peripherals.

Nearly Every Thunderbolt-Compatible, Non-GPU PCIe Card Supported

Smaller than the 3-slot Echo Express III-D (Thunderbolt 3 Edition), the Echo Express SE IIIe is still large enough to support nearly every Thunderbolt 3 compatible card available. With its three x8 slots, the SE IIIe supports PCIe 3.0, PCIe 2.0, and PCIe 1.1 cards up to 7.75 inches long. Do you have a card in mind but aren’t sure it’s compatible? We’ve put together a list in our supporting PCIe Card Thunderbolt Compatibility Chart (PDF). There you’ll find cards identified as conforming to Thunderbolt technology requirements, and organized by fit and power compatibility with specific expansion system.

Three PCIe 3.0 Slots for Demanding Professional Needs

Echo Express SE IIIe’s PCIe 3.0 x8 slots support three half-length+, full-height, single-width PCIe cards, or one single-width card plus one double-width card.

Double-width?

Some specialty cards, such as RME’s HDSPe MADI FX, Blackmagic Design’s DeckLink 4K Extreme, and the Lynx AES16e 50, include a daughter card that mates with and provides additional external connections to the main card.

Power to Spare

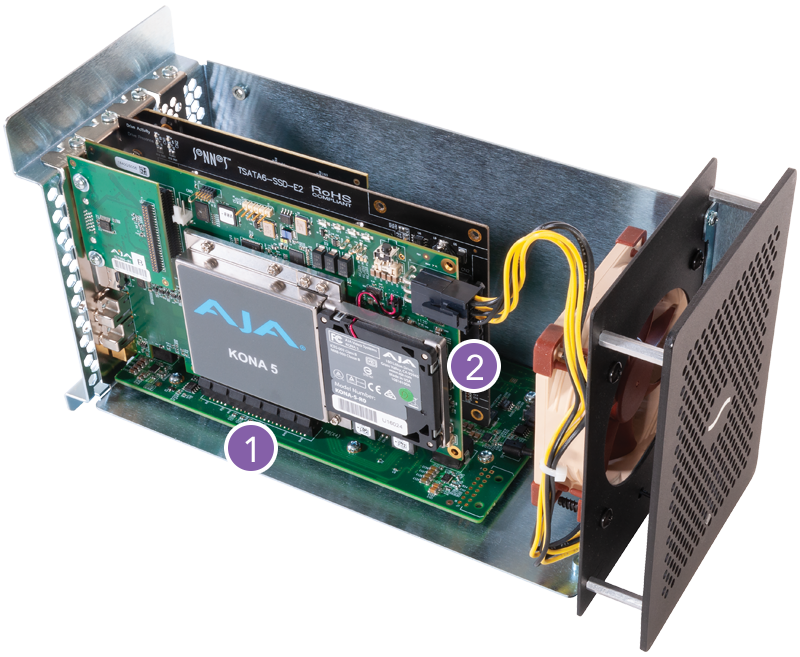

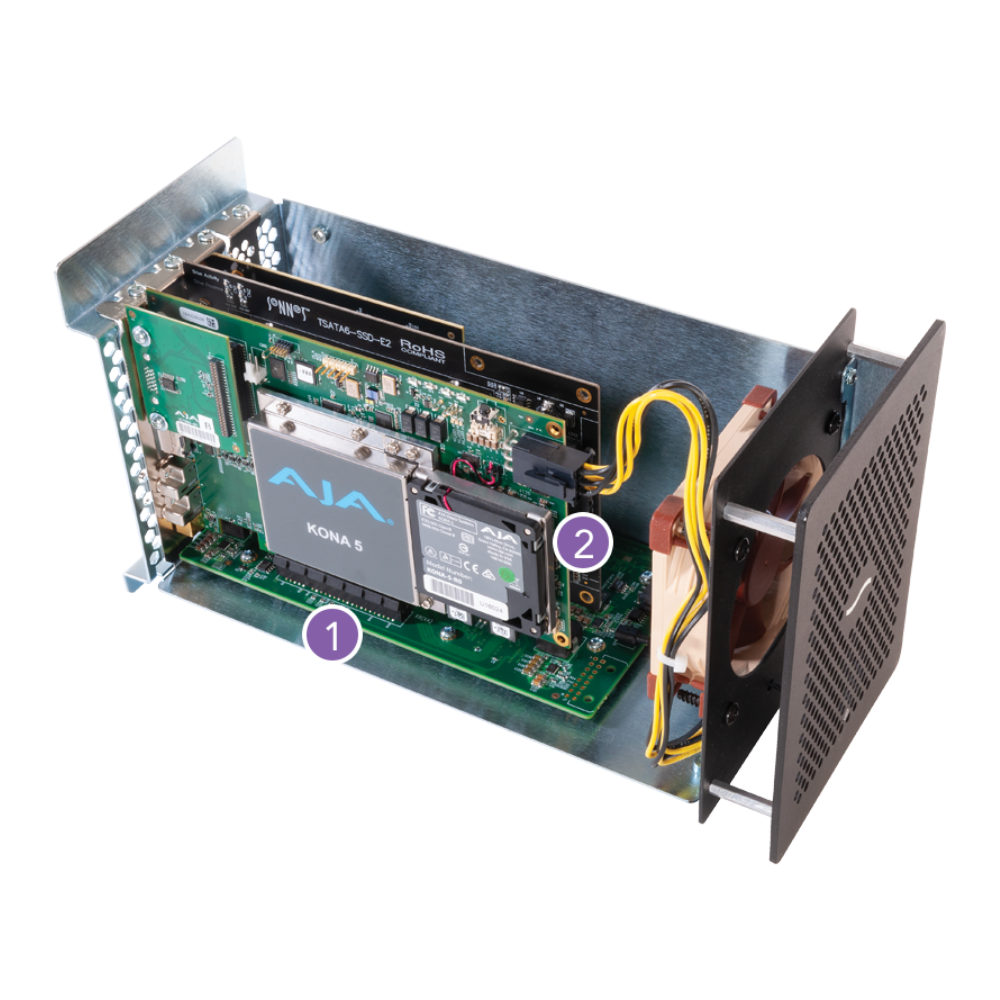

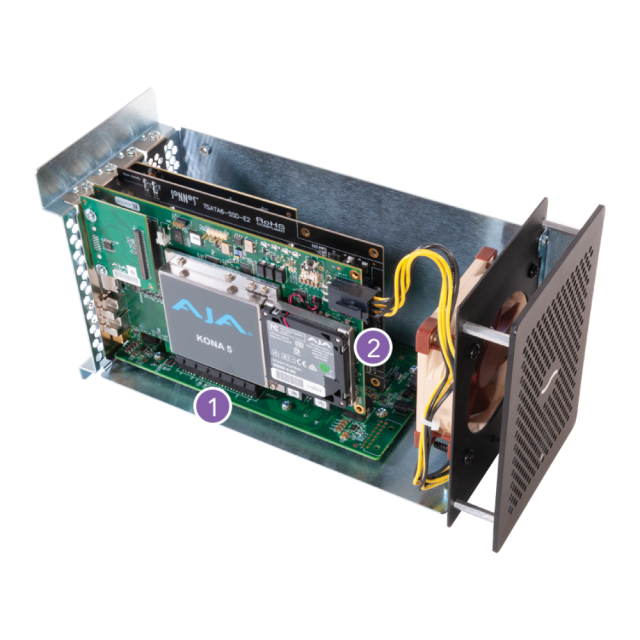

Echo Express SE IIIe includes an auxiliary PCIe power connector, enabling you to install a card requiring extra power, such as the AJA® Kona® 5 or Blackmagic DeckLink 4K Extreme 12G, and Bluefish444’s Epoch and KRONOS SDI cards.

Parametry

Parametry

Výrobce: Sonnet
Kategorie: Příslušenství
