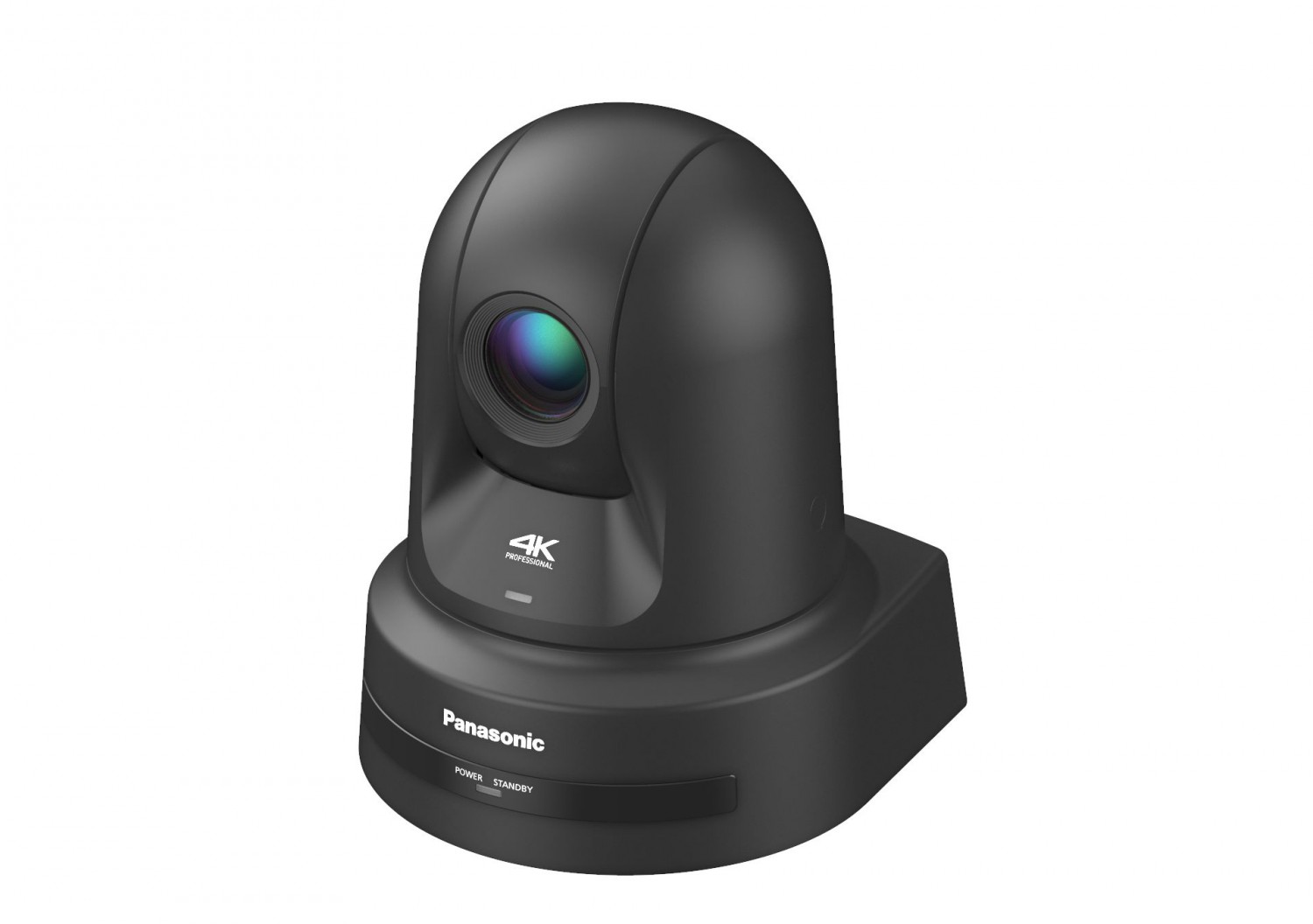

Panasonic AW-UE80K (černá)

Panasonic představil pro první kvartál roku 2022 pět nových modelů instalačních kamer zahrnující 4K modely AW-UE80W/K, AW-UE50W/K, AW-UE40W/K a AW-UE20W/K, a také HD variantu AW-HE20W/K. V prodeji od Q1/2022.

Více informací

148 895 Kč s DPH 123 053 Kč bez DPH
-+
Dostupnost
7-14 dní
Kód zboží:
AW-UE80K
Přidat do porovnání
Popis produktu

Popis produktu

Panasonic představil pro první kvartál roku 2022 pět nových modelů instalačních kamer zahrnující 4K modely AW-UE80W/K, AW-UE50W/K, AW-UE40W/K a AW-UE20W/K, a také HD variantu AW-HE20W/K. V prodeji od Q1/2022.



Novinky jsou vybaveny inovovaným motorkem s přímým pohonem pro tiché (NC25 nebo tišší) a hladké kamerové pohyby ve vertikální i horizontální ose. Varianty AW-UE40, AW-UE50 a AW-UE80 jsou dále vybaveny transfokátorem s 24x zoomem, úhlem záběru 74,1° a optickou stabilizací obrazu. Podporují také PoE napájení pro snadnou instalaci s přenosem A/V signálu, povelů dálkového ovládání i napájení po jediném ethernetovém kabelu; krom IP nechybí ani HDMI rozhraní resp. 3G-SDI (UE80 a UE50). Samozřejmostí je i podpora nejnovějších IP video protokolů vč. NDI|HX 2 (UE80/UE50/UE40) a (v případě AW-UE80) Full NDI s datovým tokem 100 Mb/s. Jsou rovněž podporovány protokoly SRT a RTMP/RTMPS, model AW-UE80 přidává navíc standard FreeD pro integraci kamery do AR a VR systémů.

Základní modely AW-UE20W/K (až 4Kp30) a AW-HE20W/K (HD) jsou určeny primárně pro korporátní sektor, home office a výuku. Jsou vybaveny širokoúhlým objektivem (71°) s 12x zoomem, kompatibilitou s nejnovějšími IP protokoly a SDI, HDMI, USB i IP rozhraními.

Celý ekosystém PTZ kamer Panasonic zahrnuje rovněž software PTZ Control Center, volitelné hardwarové dálkové ovladače, a rovněž volitelný software pro automatické sledování interpretů vč. detekce obličejů.



OBSAH BALENÍ

1  PTZ kamer

SPECIFIKACE



LENS Motorized Optical 24x zoom, F1.8 to F4.0[f=4.12 mm (5/32 inches) to 98.9 mm (3‑29/32 inches);35 mm (1‑3/8 inches) equivalent: 25.0 mm (31/32 inches) to 600.0 mm (23‑5/8 inches)]
General -
MINIMUM ILLUMINATION 3 lx (F1.8, 59.94p, 50IRE, 42 dB, without accumulation)
Zoom • Optical zoom: 24x• i.Zoom UHD 28x, FHD 36x• Digital extender zoom: 1.4x, 2x
Horizontal Resolution 1,500 TV Typ (Center area, UHD mode, wide)1,000 TV Typ (Center area, FHD mode, wide)
Input Connectors DC 12 V IN, G/L IN(BNC)BBS (Black Burst Sync), tri-level sync supported)
Input/Output Connector -
Gain Selection Auto, 0 dB to 36 dB*3 (Super Gain function equipped : 37 dB to 42 dB)
WHITE BALANCE • ATW: 3200 K, 5600 K (ATW Speed 3-stage variables.)• AWB: AWB-A / AWB-B• VAR (selectable between 2000 K and 15000 K by designating a value)
Storage Temperature -20 to 50°C (-4 °F to 122 °F)
VIDEO OUTPUT -
Current consumption 3.0 A (Supplied AC adaptor), 1.0 A (PoE++ power supply)
Power Requirements 12 V DC (10.8 V to 13.2 V) (Supplied AC adapter)
Optical Filter Through, 1/4, 1/16, 1/64, IR through (IR through is used as "night mode")
Output Format -
Color separation optical system 1MOS
Focus Switching between auto and manual
Focus Distance Entire zooming range: 1200 mm (3.9 ft)Wide end: 100 mm (0.33 ft)
Gamma HD / Normal / Cinema1 / Cinema2 / Still Like
Scene File -
Synchronization System Internal/External synchronization (BBS/Tri-level sync)
Pan/Tilt Operation Speed Speed range: 0.08°/s to 60°/s (Normal mode)*8
• 3 speed modes installedNormal:60°/s, Fast1:90°/s, Fast2:180°/s
Quietness NC25 or less
Electronic Shutter Speed -
Tilting Range -30°to 90°*9
Imaging Sensors 1/2.5-type MOS×1
Frame Mix Auto, 0 dB, 6 dB, 12 dB, 18 dB, 24 dB*4
Chroma Amount Variability OFF, -99 % to 99 %
Ambient Operating Humidity 20 % to 90 % (no condensation)
Finish AW-UE80W: WhiteAW-UE80K: Black
Image Resolution 1920×1080, 1280×720, 640×360, 320×180
Panning range ±175°
Camera Unit -
Mass Approx. 2.0 kg (4.41 lbs) (excluding ceiling mounting bracket),Approx. 2.25 kg (4.96 lbs) (including ceiling mounting bracket)
INPUT -
OUTPUT -
INPUT/OUTPUT -
Installation Method Stand-alone (Desktop) or suspended (Hanging)*7
Camera/pan-tilt head control -
Controller Supported AW-RP150GJ, AW-RP60GJ, AW-RM50AG, AK-HRP1000*1, 2, AK-HRP1005*1, 2, AK-HRP1015*2, AK-HRP250*2
Ambient Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
Dimensions (W x H x D) (mm) 170.0 mm x 211.0 mm x 171.0 mm
Dimensions (W x H x D) (inch) 6.693 inches x 8.307 inches x 6.732inches
PoE++ IEEE802.3bt compliant: DC42 to 57 V (Camera Input)(Software authentication (LLDP) is supported)
Conversion Lens Not supported
Angle of View Range Horizontal angle of view: 74.1° (wide) to 3.3° (tele)Vertical angle of view: 46.0° (wide) to 1.9° (tele)Diagonal angle of view: 81.8° (wide) to 3.8° (tele)
Syncro Scan -
Supported operating systems and web browsers -
IP Streaming -
Image Streaming Mode JPEG(MJPEG), H.264, H.265, NDI®|HX version 2*11, 12, 13 (H.264), High Bandwidth NDI®
Image Transmission setting (JPEG) Frame rate: Maximum 30fpsImage quality (Fine / Normal)
Image Transmission Setting (H.264) Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port
Transmission  Priority: Constant bit rate, Frame rate, Best effort
Frame Rate: [60 Hz] 5fps / 15fps / 30fps / 60fps, [50 Hz] 5fps / 12.5fps / 25fps / 50fps
Max Bit Rate: 512kbps / 768kbps / 1024kbps / 1536kbps / 2048kbps / 3072kbps / 4096kbps / 6144kbps / 8192kbps / 10240kbps / 12288kbps / 14336kbps / 16384kbps / 20480kbps / 24576kbps
Image Transmission Setting (H.265) Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port
Transmission  Priority: Constant bit rate, Frame rate, Best effort
Frame Rate: [60 Hz] 30fps / 60fps, [50 Hz] 25fps / 50fps
Max Bit Rate: 512kbps / 768kbps / 1024kbps / 1536kbps / 2048kbps / 3072kbps / 4096kbps / 6144kbps / 8192kbps / 10240kbps / 12288kbps / 14336kbps / 16384kbps / 20480kbps / 24576kbps
Audio Compression Type AAC-LC, 48 kHz, 16 bit, 2 ch
Pan Tilt Head Unit -
Supported protocol -
Note *1:Discontinued Model*2:Will be supported in the future*3:Can be set in 1 dB step increments.*4:Cannot be set when the format is 2160/29.97p, 2160/23.98p, 2160/24p, 2160/25p, 1080/29.97p, 1080/23.98p (59.94i), 1080/29.97PsF, 1080/23.98PsF, 1080/25p, 1080/25PsF.*5:STP (Shielded Twisted Pair) is recommended.*6:Use Category 6 or higher when transmitting 4K video.*7:To ensure safety, the unit must be secured using the mount bracket supplied.*8:Note that the operating noise may be loud in high speed. If the operating noise is disturbing, use the Normal mode.*9:The main unit may appear in the video depending on the pan/tilt position.*10:Supported OS indicated are for browsers current as of August 2020. See “Service and Support / PASS” for the latest information on browser support.*11:NDI® is a new protocol developed by NewTek, Inc. that supports IP video production workflow.*12:NDI® is a registered trademark of NewTek, Inc. in the United States.*13:In this instance, NDI® is used to indicate low latency with high bandwidth NDI®, NDI®|HX is used to indicate high efficiency low bandwidth NDI®|HX. In the NDI®|HX mode, 4K video signals cannot be output. AW-UE80 supports NDI®|HX version 2 and Full HD output.*14:Simultaneous operation with the AW protocol is not possible.*15:Non-synchronous with SDI-OUT
Other Function -
Tally LED display color red / green
NDI Support NDI®|HX version 2: Included as standardHigh Bandwidth NDI®: Included as standard*14
Mic/line input AAC compatibility (compatible with IP only)Φ3.5 mm stereo mini jack• During MIC inputInput level: -40 dBV (0 dB=1 V/Pa, 1 kHz)Supply voltage: 2.5 V±0.5 V (plug-in power compatible)"• Input impedance: Approx. 2 kΩ (when plug-in power is turned ON)Approx. 20 kΩ (when plug-in power is turned OFF)"• During LINE inputInput level: -10 dBVInput impedance: Approx. 3 kΩ• Input volume variable range: -36 dB to 12 dB (3 dB step)• Embedded audio output level: -12 dBFS• Sampling frequency: 48 kHz• Quantization bit rate: 24 bit (SDI, HDMI), 16 bit (IP)
IP connecting cable • If you have a PoE++ ethernet hubLAN cable*5, 6 (category 5e or above, straight cable) Max 100 m (328 ft)• If you don't have a PoE++ ethernet hubLAN cable*5, 6 (category 5e or above, straight cable) Max 100 m (328 ft)
AW protocol connecting cable LAN cable*5 (category 5e or above, straight cable) Max 1000 m (3280 ft)
Image Stabilization OIS 2-axisMENU switching: Select between Off/O.I.S.(STABLE)/O.I.S.(PAN/TILT)
Electronic Shutter Speed | 59.94p/59.94i 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
Electronic Shutter Speed | 29.97p 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
Electronic Shutter Speed | 50p/50i 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
Electronic Shutter Speed | 25p 1/25, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
Input/Output Connector | LAN LAN terminal for IP control (RJ-45)
Input/Output Connector | RS-422 CONTROL IN RS422A(RJ-45)
Windows Windows 10
Windows® Internet Explorer® 11(32 bit / 64 bit)
Microsoft Edge
Google Chrome
Mac Mac OS v11.0.1 / Safari 14.01
Mac OS v11.0.1 / Google Chrome
Mac OS v10.15 / Google Chrome
Mac OS v10.14 / Google Chrome
Video Output | HDMI HDMI 2.0 connector, 4:2:2/10bit• HDCP is not supported.• Viera Link is not supported
Supported protocol | IPv4 TCP/IP, UDP/IP, HTTP, HTTPS, RTSP/RTP, MPEG2-TS, DHCP, DNS, DDNS, NTP, IGMP, ICMP, ARP, RTMP, RTMPS, SRT
Supported protocol | IPv6 TCP/IP, UDP/IP, HTTP, HTTPS, DNS, NTP, DHCPv6, RTSP/RTP, MLD, ICMP, ARP, SRT
Output Formats High Bandwidth NDI®  : 【HD】1080/59.94p, 1080/50p, 1080/29.97p, 1080/25p, 1080/24p, 1080/23.98p, 720/59.94p, 720/50p
New Functions -
Electronic Shutter Speed | 23.98p/24p 1/24, 1/48, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
Synchro Scan | 59.94p/59.94i 60.0 Hz to 7200 Hz
Synchro Scan | 29.97p 30.0 Hz to 7200 Hz
Synchro Scan | 23.98p/24p 24.0 Hz to 7200 Hz
Synchro Scan | 50p/50i 50.0 Hz to 7200 Hz
Synchro Scan | 25p 25.0 Hz to 7200 Hz
Output Format | SDI | HD 1080/59.94p, 50p, 1080/59.94i, 50i, 1080/29.97p (Native), 25p (Native), 23.98p (over59.94i), 1080/29.97psF, 25psF, 23.98psF, 1080/24p (Just), 23.98p (Native), 720/59.94p, 50p
Output Format | HDMI | 4K 2160/59.94p, 2160/50p, 2160/29.97p (Native), 2160/25p (Native), 2160/24p (Just), 2160/23.98p (Native)
Output Format | HDMI | HD 1080/59.94p, 50p, 1080/59.94i, 50i, 1080/29.97p (Native), 25p (Native), 23.98p (over59.94p), 1080/24p (Just), 23.98p (Native), 720/59.94p, 50p
Video Output | 3G-SDI OUT SMPTE292M/424M/ 75 Ω(BNC×1)• Level-A/Level-B supported
Image Resolution | NDI®|HX version 2 1920x1080, 1280x720
Audio Compression Type | High Bandwidth NDI® AAC-LC, 48 kHz, 2 ch
Audio Compression Type | NDI®|HX version 2 AAC-LC, 48 kHz, 16 bit, 2 ch
F-Number Display Displayed on the AW-RP150GJ and AW-RP60GJ sides
Menu Display on IP Video Supported*15
Power LED ON/OFF control
Tripod Screw Penetration Measures Possible
Pan/Tilt Mechanical Method New Direct Drive System
Privacy Mode The lens surface faces backward when standing by (ON/OFF)* Default is OFF
VR Compatibility Supports FreeD protocol
Android Android OS
Google Chrome
iPhone / iPad iOS
Safari
iPadOS
Image Transmission Setting (High Bandwidth NDI®) Transimission Type: TCP/UDP, Unicast/Multicast
Max Bit Rate: 250 Mbps
Image Transmission Setting (NDI®|HX version 2) Transimission Type: TCP/UDP, Unicast/Multicast
Parametry

Parametry

Výrobce: Panasonic
Kategorie: PTZ

Hlavní parametry

Velikost snímače kamery1/2.5"
Rozlišení4K UHD
Zoom24x
Typ bajonetuintegrovaný objektiv
VýstupHDMI
VýstupNDI
Výstup3G SDI
VýstupIP

Ostatní parametry

ProvedeníPTZ
FPS4K 60fps
Min. ohnisková vzdálenost4.1mm
Max. ohnisková vzdálenost98.9mm
Další funkcePTZ
Další funkceStreaming
Další funkcePoE
Další funkceNDI / NDI HX
Další funkceFreeD
Další funkceSRT
Ovládací protokolNDI
Ovládací protokolRS-422
