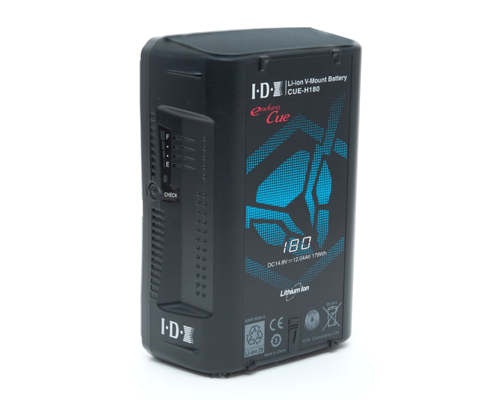

IDX CUE-H180

179Wh Li-ion V-Mount Battery with D-Tap output

The CUE-H180 V-Mount battery answers to the power demands of digital cinematography and broadcast cameras where high current loads of 12A/155W are standard. The CUE-H180 provides a robust 179Wh capacity with the ability to comfortably handle 12A/155W loads, as well as a single built-in D-Tap output capable of taking a 80W load for powering accessories.

TECHNICAL SPECIFICATION

• Battery Capacity: 14.8V, 12.04Ah, 179Wh*
• Max. Output Voltage: 16.8V DC
• Nominal Voltage: 14.8V DC
• Maximum Discharge Current: 12A / 155W
• D-Tap: 80W each
• End Voltage: 11.2V
• Battery Protection:
• Over charge (reset)
• Over discharge (reset)
• Over current (reset)
• Ambient Temperature:
• To charge: 0°C ~ 40°C (10°C ~ 30°C recommended)
• To discharge: -20°C ~ 45°C (10°C ~ 40°C recommended)
• To store: -20°C ~ 50°C (-20°C ~ 20°C recommended)
• Dimensions: 97(W) x 146(H) x 59(D) mm
• Weight: 1050g approx.
• *IDX measures capacity of lithium ion batteries as a minimum capacity
