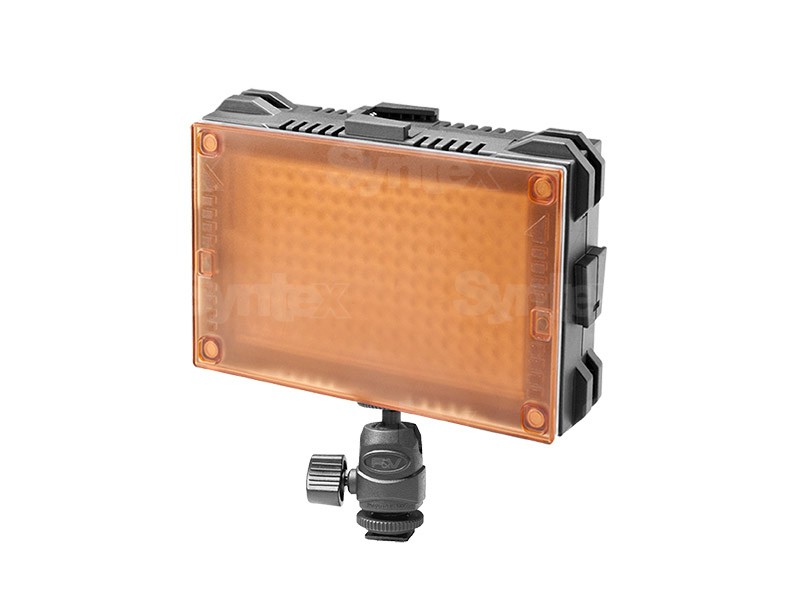

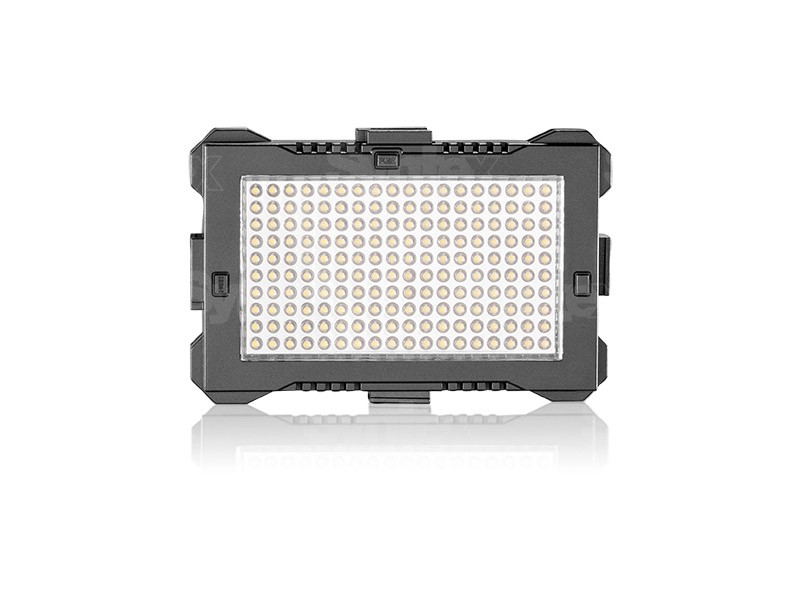

The Z180S Bi-color LED Light Panel features 90 daylight-balanced LEDS and 90 tungsten-balanced LEDs that deliver a bright yet soft beam of light. This light comes with two (2) magnetic filters: one (1) tungsten filter and one (1) diffusion filter.
The F&V Z180S has both a designated intensity dimmer knob and a designated CCT knob. Control the color temperature of this light by turning the CCT knob to the left or right. The color temperature of the light will transition smoothly from tungsten to daylight balanced light. The intensity dimmer knob controls the intensity of the light from 0-100%.

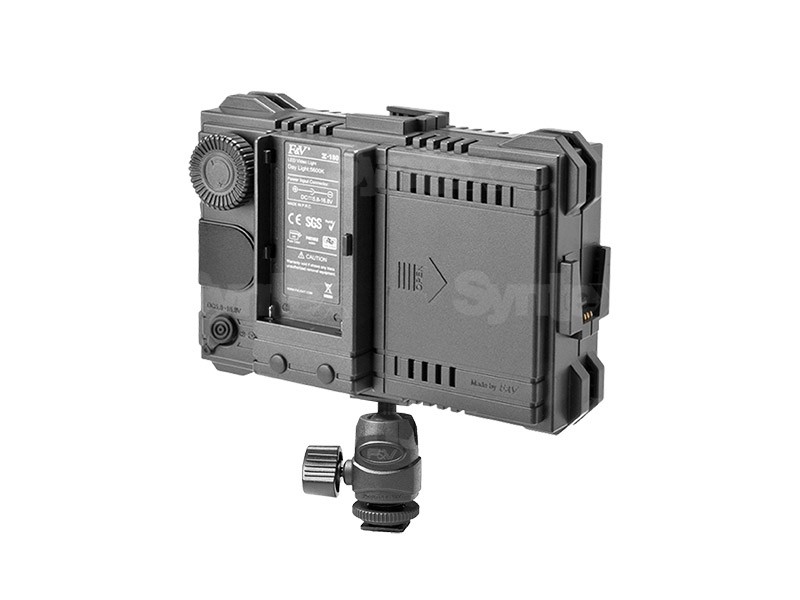

This light has several powering options. It can be powered by its built-in Sony NP-F battery plate, by its built in battery compartment with six (6) AA-batteries, or by an external power source via its DCΦ2.5 jack.

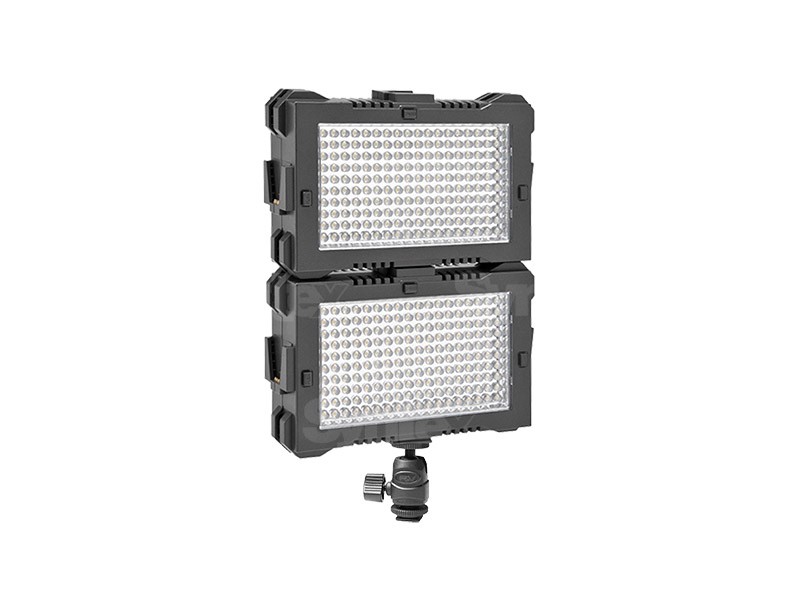

Multiple Z180S units can be linked together via its Expandable Link System, a mortis and tenon attachment system. The lights can mount both horizontally and vertically to one another. This linking system makes it easier to transport your lights and is a perfect solution for projects on-location, where carrying large sized lights becomes impractical. When the lights are linked together, the SmartSync Control Circuit allows you to control the intensity of all lights with only one of the light’s dimmer knobs. When the knob of the parent-light is adjusted, all connected lights match the intensity of the parent-light. The SmartSync Control Circuit also works with the color temperature of the light. Link multiple bi-color units together, and the parent-light will control color temperature of all lights.
The versatility of this light will make it a necessity to have in your lighting kit. This light is compact in size allowing for it to fit into small areas, yet with its Expandable Link System, this light can be both big and small.
Bulb: Power LED
LED Count: 180
Light Beam Angle: 65°
Illuminance: 1380 lx
Power Variation: 0-100%
Color Rending Index (Ra): ≥ 85%
Correlated Color Temperature (CCT): Variable CCT. Blend from 3200K to 5600K
Operating Voltage: DC 5.8-16.8V
Power Options: Built-in Sony NP-F Battery Plate, 6x AA Batteries, or DCΦ2.5 jack.
Lasting Time: 60mins with NP-F550, 37mins with AA Battery
Mounting: ¼"-20 Female Thread; Kai Arm included in kit
Nominal Weight: 1 lb 1 oz / 482 g (without filters)
Nominal Dimensions: 17.3 cm x 11.3 cm x 5 cm

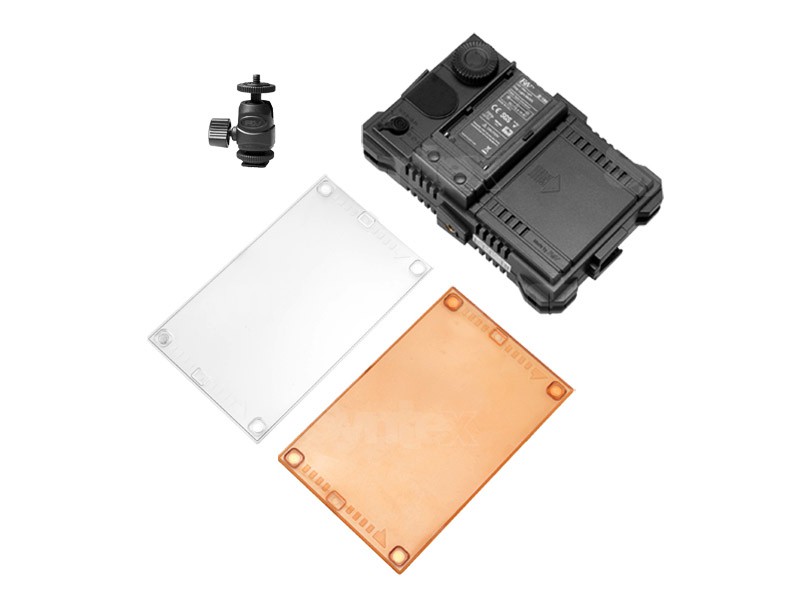

1 x Z180S Bi-Color LED Light Panel
1 x Kai Arm - 10209007
1 x Z180 Magnetic Tungsten Filter - 33212621
1 x Z180 Magnetic Diffusion Filter - 33212622
1 x Operation Manual
1 x Warranty Card
