Decimator Design MD-QUAD v3

(3G/HD/SD)-SDI Quad rozdeľovač s (3G/HD/SD)-SDI a HDMI výstupmi

Více informací

40 656 Kč 38 623 Kč s DPH 31 920 Kč bez DPH
-+
Dostupnost
Praha 1 ks, Bratislava skladem do 2 dnů
Výrobce
Doprava zdarma při nákupu tohoto produktu
Kód zboží:
DD-MD-QUAD
Přidat do porovnání
Popis produktu

Popis produktu

(3G/HD/SD)-SDI Quad rozdeľovač s (3G/HD/SD)-SDI a HDMI výstupmi

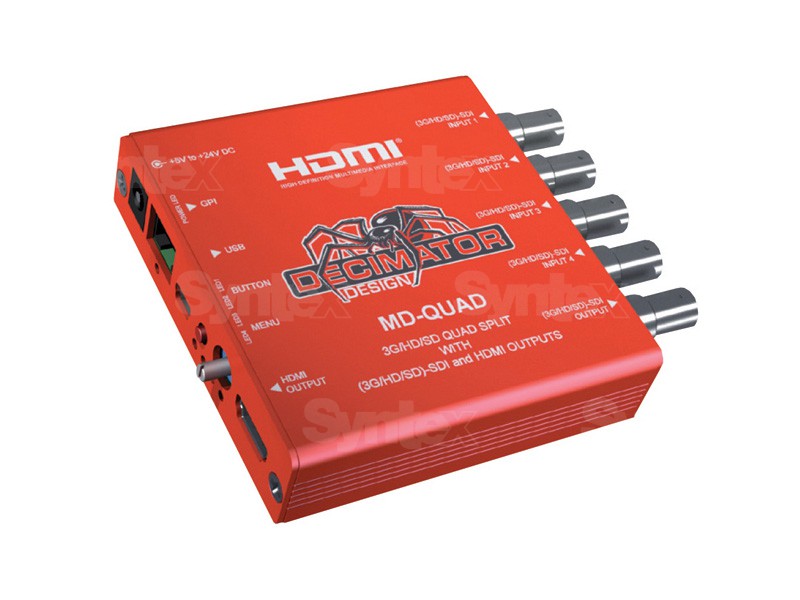

The MD-QUAD v3 from Decimator Design is a low cost, miniature 3G/HD/SD-SDI 4 to 1 Quad Splitter or 4 to 1 input multiplexer, featuring linked (3G/HD/SD)-SDI and HDMI Outputs.



  • Low cost miniature (3G/HD/SD)-SDI 4 to 1 Quad Split or 4 to 1 input multiplexer
  • Selectable output format in Quad-Split mode
  • Low latency buffering for each input allowing non-synchronous inputs
  • Linked (3G/HD/SD)-SDI and HDMI outputs
  • 4 x (3G/HD/SD)-SDI inputs with auto detection (26 Formats supported in total)
  • 8-Channel Audio metering for each quadrant with:
    • The first two audio groups individually selectable
    • Vertical or Horizontal Bars
    • AES, VU, Extended VU, BBC, EBU, DIN and NORDIC Scales
    • Bar & Float, Bar only or Float only
    • Transparency adjustment
    • Separate Bar and Float Ballistics control
    • Adjustable Reference level
    • Red, Yellow and Green Range adjustment
    • Bar thickness adjustment
    • Margin adjustment
  • Each quadrant is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously
  • Variable aspect ratios per quadrant
  • All 4 inputs can be displayed simultaneously on a single output
  • Pass-Through mode allowing any of the 4 inputs to be selected for output
  • In Pass-Through mode the selected input is passed through to both the (3G/HD/SD)-SDI and HDMI outputs
  • On-Screen 16 character IDs (UMDs) for each input
  • A single tallies for each input is available from the GPI
  • NEW! In Quad-Split mode the first 8-channels of audio from any input can now be passed to both the HDMI and SDI output
  • NEW! On-screen audio id pop-up when selection audio source in Quad-Split mode
  • NEW! On-screen display pop-up when using the rotary to allow for use when without a PC
  • NEW! Professional 3G/HD/SD Test Pattern Generator featuring 54 Test Patterns including Luma and Chroma Zone-plates
  • NEW! Audio Tone Generator
  • An extensive selection of user controllable functions via an easy to use rotary encoder for menu selection. LEDs and a push button can then be used for status and control
  • USB port for control and updates
  • GPI on RJ-45 for remote switching
  • Locking DC Power Socket
  • The following is included with the unit: Power Supply, HDMI Cable, USB Cable and Mounting Bracket
