Decimator Design MC-DMON-9S

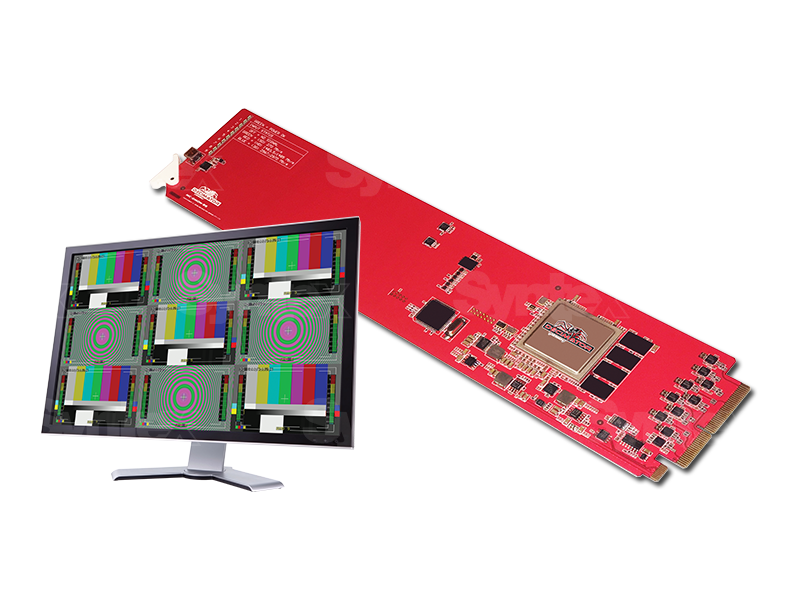

Decimator Design MC-DMON-9S - 1 to 9 Channel (3G/HD/SD)-SDI MultiViewer with Custom Layouts

Více informací

31 508 Kč 29 933 Kč s DPH 24 738 Kč bez DPH
-+
Dostupnost
na telefon
Výrobce
Doprava zdarma při nákupu tohoto produktu
Kód zboží:
DD-MC-9S
Přidat do porovnání
Popis produktu

Popis produktu

Decimator Design MC-DMON-9S - 1 to 9 Channel (3G/HD/SD)-SDI MultiViewer with Custom Layouts

Decimator Design MC-DMON-9S - 1 to 9 Channel (3G/HD/SD)-SDI MultiViewer with Custom Layouts

  • Support both 3G level A and B on the input and output. Allowing conversion between 3G level A and B.
  • Low cost miniature (3G/HD/SD)-SDI 1 to 9 channel Multi-Viewer or 9 to 1 input multiplexer
  • Custom Layouts with various standard layouts
  • 16 Character UMD overlay per window with individual enables, custom positioning and size
  • 16 Channel Audio Metering overlay per window with individual enables, custom positioning and size
  • Format Status overlay per window with individual enables, custom positioning and size
  • Safe Action and Safe Title overlay per window with individual enables and adjustment
  • Centre Cross overlay per window with individual enable
  • Audio ID overlay
  • Load and restore Custom Layouts
  • Fast switching between inputs using Full-Screen scaling
  • Selectable output format in both Full-Screen and Multi-Viewer mode
  • Low latency buffering for each input allowing non-synchronous inputs
  • 9 x (3G/HD/SD)-SDI inputs with auto detection (26 Formats supported in total)
  • 1 x (3G/HD/SD)-SDI output
  • Each window is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously
  • Variable aspect ratios per window
  • Pass-Through mode allowing any of the 9 inputs to be selected and routed to the (3G/HD/SD)-SDI output
  • USB port for control and firmware updates
  • openGear DashBoard for control
Parametry

Parametry

Výrobce: Decimator Design
Kategorie: Multiviewer

Hlavní parametry

RozlišeníHD
RozlišeníSD
Počet vstupů9
