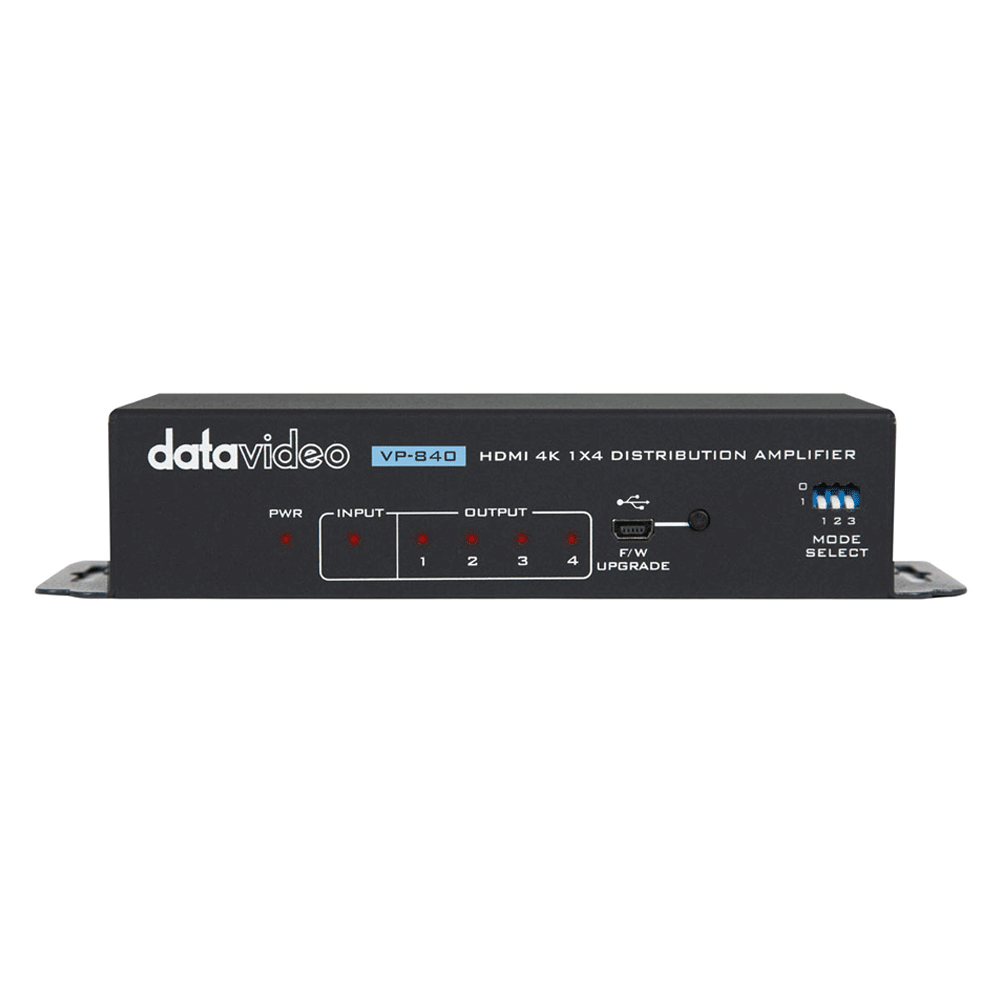

Distribučný zosilňovač / splitter 1x4 4K HDMI signálu od Datavidea
Distribučný zosilňovač / splitter 1x4 4K HDMI signálu od Datavidea
The Datavideo VP-840 is an HDMI 1x4 Distribution Amplifier featuring the capability to repeat HDMI source to 4 displays simultaneously. The VP-840 supports data rate up to 18 Gpbs and resolutions of 4K2K@60Hz, and is compliant with HDMI 2.0 and HDCP 2.2. The VP-840 features EDID management with auto downscale function, thus providing multiple EDID options for various output resolutions between all devices and ensuring that the HDMI source content is displayed correctly on the monitors.
Features
Supports 4K2K@60 4:4:4 8bits
Supports High Dynamic Range (HDR), which is 4K2K@60 4:2:0 10bits
Video bandwidth: 18 Gbps
Wide frequency range: 25MHz – 600MHz
HDMI 2.0a compliant, HDCP 2.2 and 1.4 compliant
Supports Deep Color & 3D
Supports Dolby Digital, DTS-HD and Dolby TrueHD audio
Supports default EDID and EDID learning from display
Auto downscale function
Front panel LED indicators

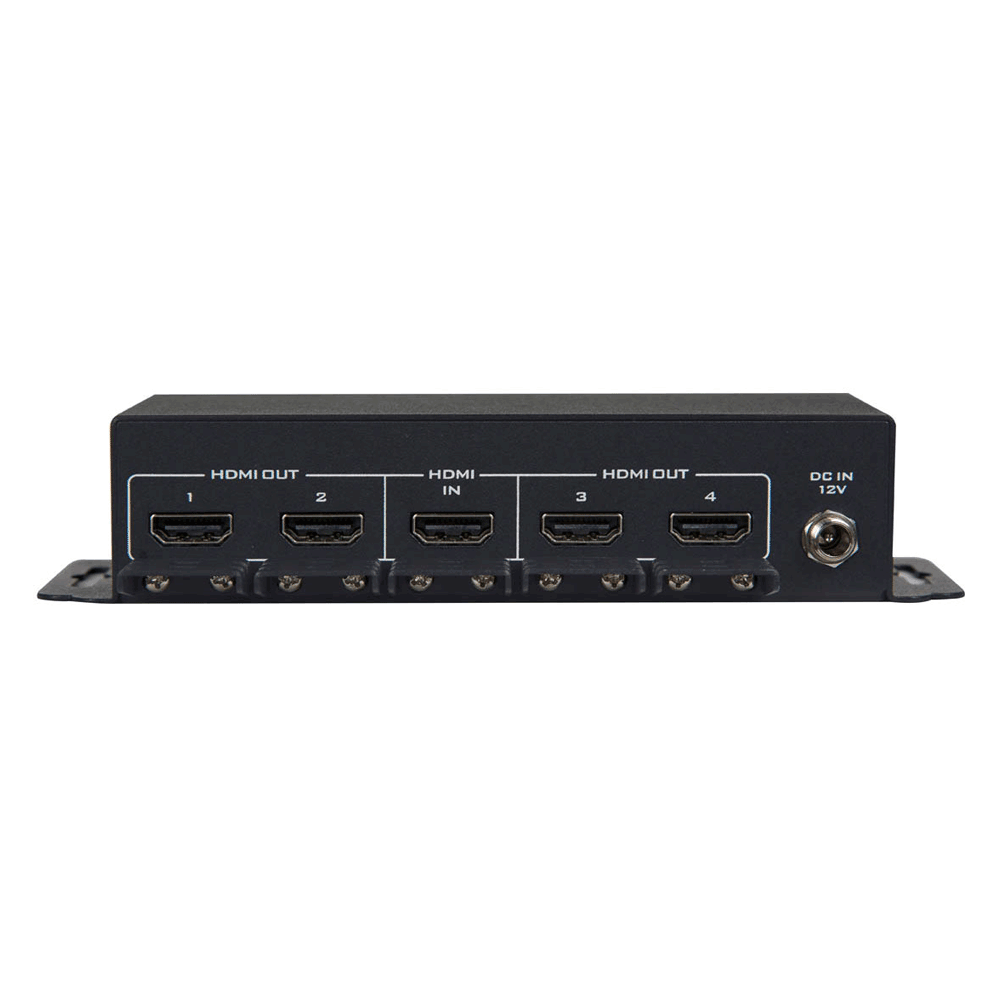

Video Input/Output |
Input: 1 x HDMI |
Video Format |
HDMI Supported Resolutions PC Supported Resolutions |
Video Processing |
HDR 4K2K@60 4:2:0 10bits |
Video bandwidth |
Single-link 600MHz (18Gbps) |
Audio Format |
DTS-HD Master Audio, Dolby TrueHD, Dolby Digital, DTS, DVD-Audio, LPCM, SACD, MPCM |
Power |
12V / 6W |
Dimension (LxWxH) |
174 x 63 x 35 mm |
Weight |
0.35 kg |
Operating Temp. Range |
0~40 °C |
What's in the Box |
1 x VP-840 product |
