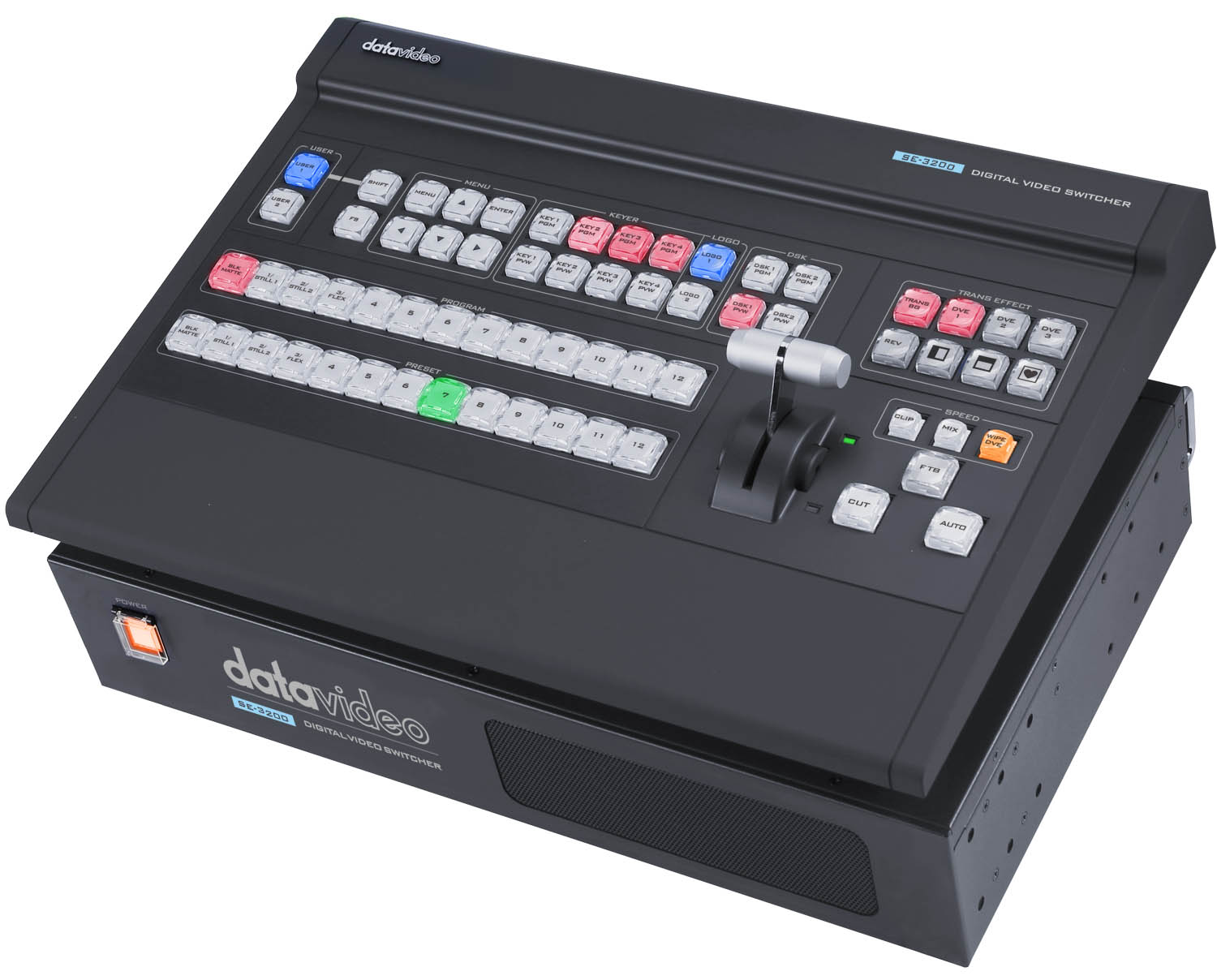

Datavideo SE-3200

KEY FEATURES

• Supports full 1080P (3G)
• 4 Upstream Keys for chromakey, linear and luma keys as well as picture-in-picture
• 2 Downstream Keys for generating different effects
• 4 Broadcast Quality keyers with 50 built-in virtual sets
• 9 built-in Stinger transition effects

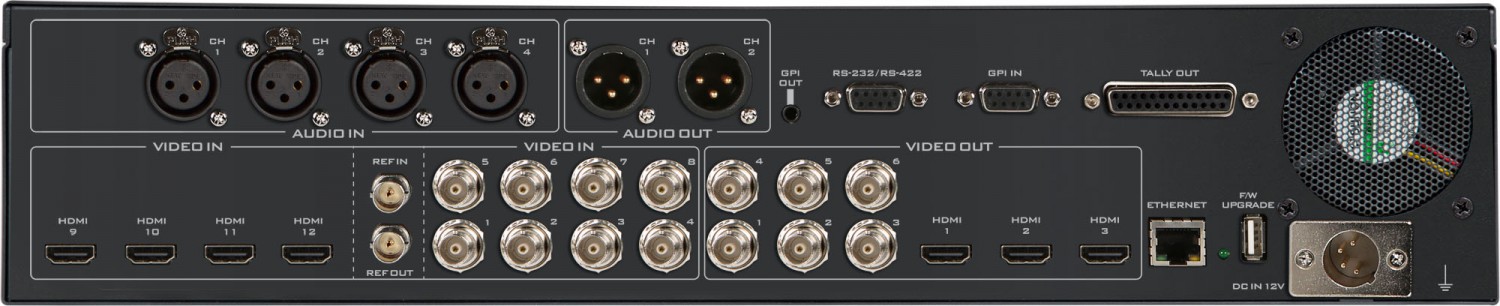

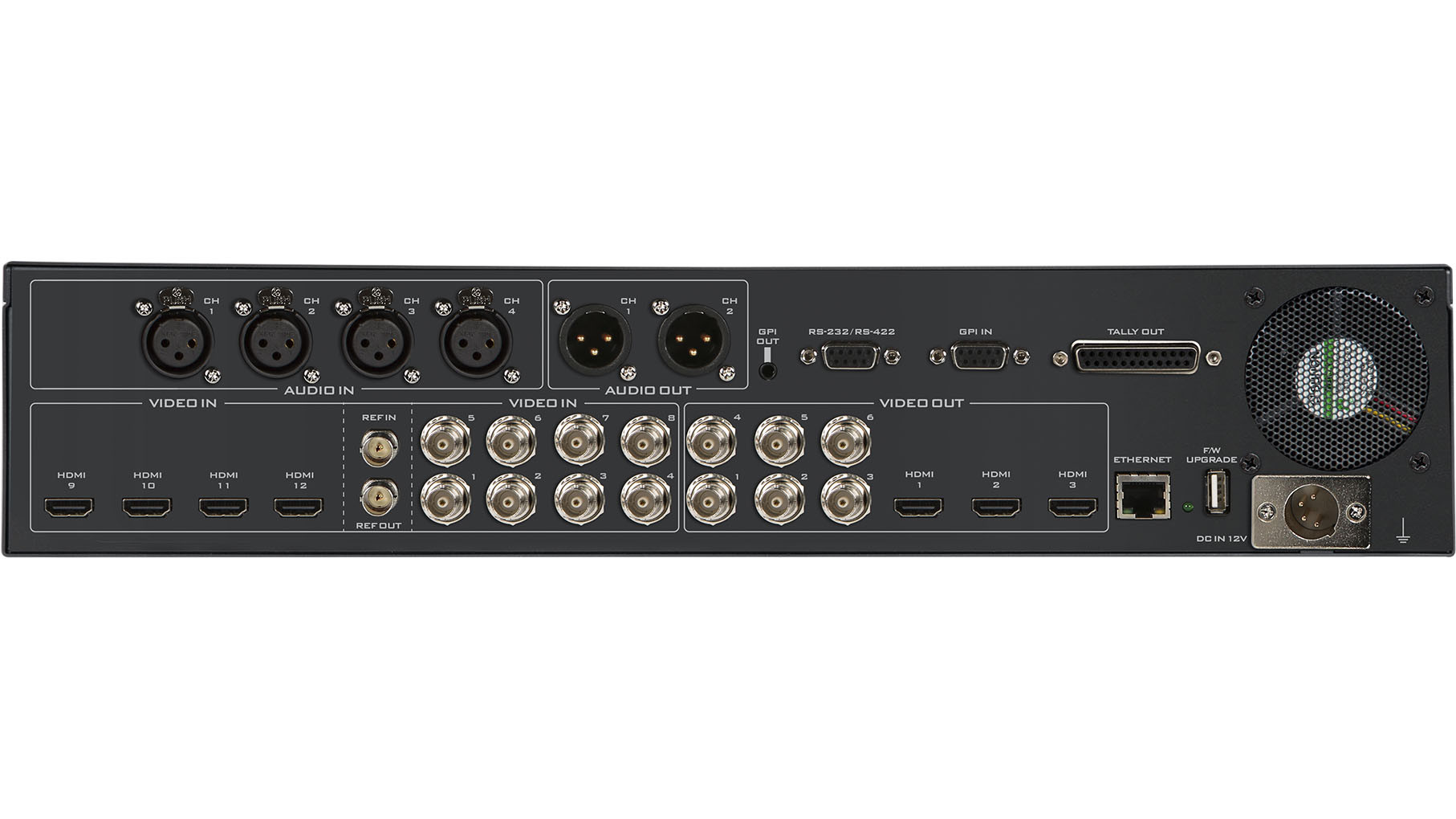

• 12 Video Input Channels: 8 x SDI and 4 x HDMI
• 9 Video Output Channels: 6 x SDI and 3 x HDMI
• 4 Upstream Keys for chromakey, linear and luma keys as well as picture-in-picture

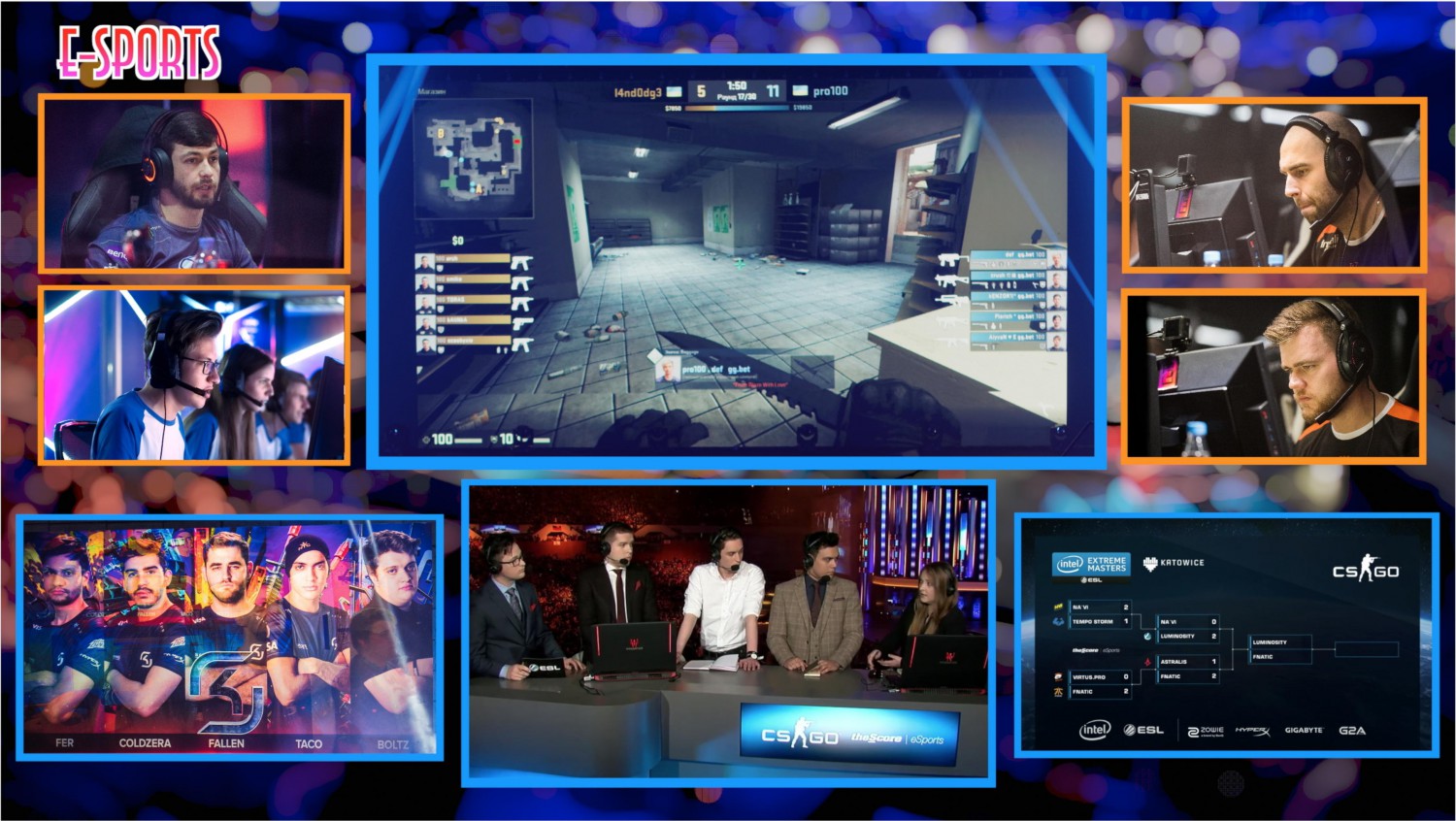

• 8 Picture-in-Picture (4 flex source included), with configurable ratio, position and size
• 2 Downstream Keyers for linear and luma keys
• 2 static or animated logos with configurable position and size
• WIPE, MIX, DVE and CUT transitions
• 32 WIPE patterns such as circle and heart with adjustable border width and color softness
• Supports stinger transition for live sports broadcast
• Any input (1-12) can be used as a frame store
• Supports XPT (Cross Point Assignment)
• 4 XLR analogue audio input channels with each channel carrying four audio tracks
• 2 XLR de-embedded analogue audio output channels
• Dual color (red/green) tally outputs
• Supports Tri-Level and Black Burst sync reference
• 2 readily available user memory presets
