Datavideo KMU-200

Datavideo KMU-200 je all-In-one (všetko v jednom) video réžia s funkciou streamingu, audio mixera a nájdete tu aj funkciu na ovládanie kamery. Ide o zariadenie do ktorého je možné pripojiť jednu 4K HDMI kameru a jeden ďalší HDMI video vstup (napr. notebook). Zo 4K video signálu je potom možné urobiť až 4 HD zábery (kamery). Nastavenie jednotlivých…

Více informací

114 390 Kč s DPH 94 537 Kč bez DPH
-+
Dostupnost
7-14 dní

Ukázat všechno příslušenství

Popis produktu SPECIFIKACE OBSAH BALENÍ

Popis produktu

Datavideo KMU-200 je all-In-one (všetko v jednom) video réžia s funkciou streamingu, audio mixera a nájdete tu aj funkciu na ovládanie kamery. Ide o zariadenie do ktorého je možné pripojiť jednu 4K HDMI kameru a jeden ďalší HDMI video vstup (napr. notebook). Zo 4K video signálu je potom možné urobiť až 4 HD zábery (kamery). Nastavenie jednotlivých výrezov (záberov) sa dá nastaviť prostredníctvom LCD touch displeja alebo cez ďalšie ovládacie prvky ktoré KMU-200 ponúka.

The KMU-200 is an innovative new switcher design based on the award winning KMU-100.  Datavideo is transforming this new market category with the KMU-200 4K Multi-Channel Touch Screen switcher.  The KMU-200 is now an all in one device similar to our Hand Carried Studio line of switchers, it brings switching, audio mixing, recording and streaming into a portable all in one device.

Another great feature of the new KMU-200 is the ability to work as both a horizontal video switcher and  as a vertical video switcher.  Horizontal video is the current norm, but vertical video content is growing in popularity due to smart phones where most content is consumed in portrait mode.  The KMU-200 will allow you to push your vertical video productions to new limits.

Supports 4K UHD Resolution Input

4K cameras are widely available and content online doesn’t require the full 4K resolution for streamed content.  A single 4K camera can be utilized to obtain 4 cut outs or regions of interest. The KMU-200 is perfect for interview application with small panels or smaller houses of worship.  With Social distancing becoming commonplace, the KMU-200 reduces the amount of cameras needed to get your production streamed live.

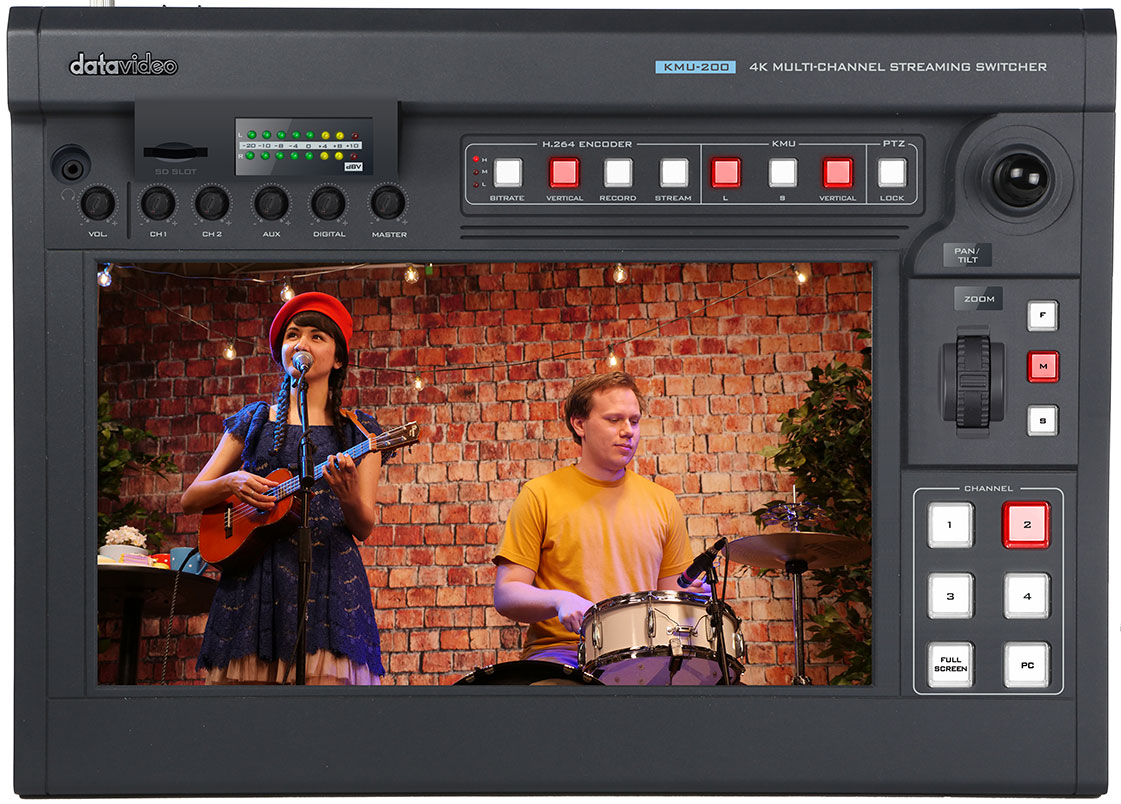

Easy Touch-Screen Operation

Touch Screen operation for simplified tasks and tactile buttons are provide for switching.  The 14-inch touch screen allows gesture control over the live content.  The joystick and backlit buttons allow for more traditional control over the KMU-200’s screen selections.

6 Channels for Live switching

The six channel buttons incorporated into the lower right corner allow easy access to each region of interest, including two allocated for full screen mode and computer output.

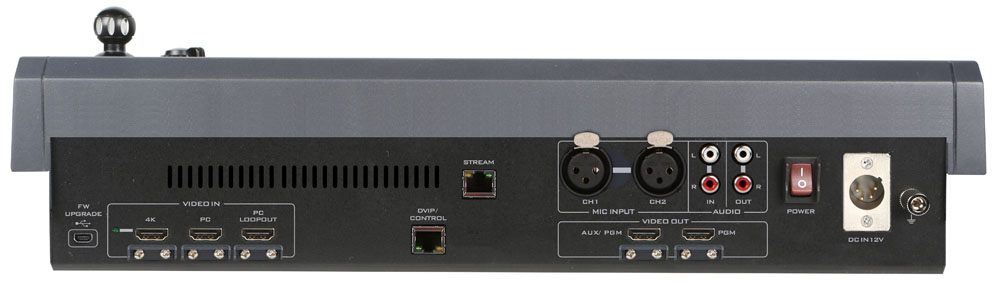

<h2">Additional HDMI Input with Loop Out

The additional HDMI input allows the option to show an additional camera angle or to connect a computer's display-output to the KMU-200 for presentation software.

The HDMI loop out allows for production directors to have direct monitoring of the presentation input. All HDMI inputs have built-in strain relief bars to make sure nothing is left to chance during your production, by reducing the chances of cables becoming unplugged

XLR, TRS, and RCA Combination Inputs

The internal audio mixer supports four audio channels and embedded audio sources

Stream Directly to YouTube or Facebook

The built-in H.264 encoder can instantly stream live to get your content online.

Live-Streaming Vertical or Horizontal Video

The KMU-200 has a built-in encoder enabling it to stream to any compatible CDN in traditional 16x9 format or 9x16 portrait mode.

OBSAH BALENÍ

1x KMU-200 Main Unit
1x AD Switch DC 12V with AC Cord
1x Thank You Card

SPECIFIKACE

KMU-200 4K Multi-channel Streaming Switcher
Video Standard

UHD & HD

Video Format

Input:
 3840x2160p 23.98/24/25/29.97/30/50/59.94/60
 1080p 50/59.94/60
Output:
 1080p 50/59.94/60
 720p 50/59.94/60

Video Processing

4:4:4 / 4:2:2 / 4:2:0

Video Input

1x HDMI 2.0
1x HDMI 1.4 with Loop through

Video Output

2x HDMI 1.4

Support Video Output Resolution

1920 x 1080p 50/59.94/60
1280 x 720p 50/59.94/60

Multiview Out

N/A

Multiview Mode

N/A

Streaming Encode

H.264/AVC, Main/High Profile

Streaming Video Bitrate

Record Only: Up to 16Mbps (1080p50/60)
Stream Only: Up to 10Mbps (1080p50/60), dual stream
Record+Stream: 36Mbps (1080p50/60)

Streaming Video Rate Mode

CBR

Streaming Audio Mode

Stereo/Mono

Streaming Audio Bitrate

Stereo: 64~384Kbps
Mono: 32~192Kbps

Streaming Protocols

TS over TCP/UDP (unicast & multicast)
RTSP over HTTP/TCP/UDP (RTSP Elementary Streaming)
RTMP/RTMPS (Publish)
HLS
SRT

Network Interface

1x RJ45 (10/100Mbps Ethernet)

Recording Storage Medium

SD Card

Recording Storage File System

MP4

Built-in Audio Mixer

Yes, 4 channels

Audio Input

2x XLR(Mic)
2x RCA

Audio Output

2x Unbalanced RCA

Audio Sampling

N/A

Reference Input

N/A

Control Interface

N/A

Preview Display

14” Capacitive Touch LCD

Controller

N/A

Dimension (LxWxH)

438 x 331 x 114 mm

Weight

4.3 kg

Power Supply

DC 12V, 52W

Operating Temp. Range

0~40 °C

What's in the box

1 x KMU-200 Main Unit
1 x AD Switch DC 12V with AC Cord
1 x Thank You Card

Parametry

Parametry

Výrobce: Datavideo
Kategorie: Režie

Hlavní parametry

Počet vstupů režie2
Vstupy režieHDMI
Výstupy režieHDMI
Rozlišení režieHD
Rozlišení režie4K
Funkce režieStreaming
Funkce režieZáznam
Funkce režieAUX
Funkce režieAudio Mixer
Ovládací panelAno
