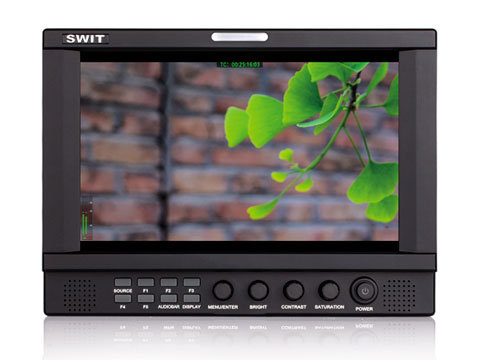

SWIT S-1093H 9" HD LCD monitor

SWIT S-1093H je 9” IPS LCD monitor s rozlíšením 1920×1200, pozorovacím uhlom 170° a 2x SDI, HDMI a kompozitným vstupom a loop výstupom na každom vstupe.

Více informací

34 757 Kč s DPH 28 725 Kč bez DPH
-+
Dostupnost
3-5 dnů
Výrobce
Doprava zdarma při nákupu tohoto produktu
Kód zboží:
S-1093H
Přidat do porovnání
Popis produktu

Popis produktu

SWIT S-1093H je 9” IPS LCD monitor s rozlíšením 1920×1200, pozorovacím uhlom 170° a 2x SDI, HDMI a kompozitným vstupom a loop výstupom na každom vstupe.

S-1093H

9-inch Full HD LCD Monitor

  • 9” IPS LCD, 1920×1200, H/V 170°viewing
  • Build-in LCD protective glass
  • 2K/3G/HD/SD-SDI, HDMI, CVBS monitoring
  • 2-ch Embedded audio meters with alert
  • AFD, H/V delay, R/G/B/Mono, False color
  • TSL UMD and text TALLY display
  • Zebra stripes, Peaking focus assist
  • SDI timecode display
  • Marker 4:3, 13:9, 14:9, 15:9, 1.85:1, 2.35:1
  • Front / Rear TALLY light and GPI control
  • V-mount, Gold mount or snap-on DV mount
  • USB firmware upgrade

9-inch Full HD LCD

IPS panel with LED backlight
 The S-1093H adopts a 9-inch IPS (In-Plane Switching) LCD panel, with Full HD 1920×1200 resolution and LED backlight, 800:1 contrast. The viewing angle is Horizontal: 170° / Vertical: 170°

LCD Protective Glass

The LCD of S-1093H is overlaid with a glass, protects the screen against scratch or broken.

Input/Output Interfaces

SDI / HDMI / CVBS / Analog Audio

S-1093H monitor supports:
2K/3G/HD/SD-SDI input × 2
2K/3G/HD/SD-SDI loop output × 2
HDMI input × 1
HDMI loop output × 1
CVBS input × 1
CVBS loop outputt × 1
3.5mm analog audio input × 1
3.5mm analog audio output × 1

Embedded audio monitoring

2-ch meters with alert

S-1093H supports SDI-2ch / HDMI-2ch embedded audio meters and Analog 2-ch audio meters display, with marks and audio abnormal alert info. The audio meter pattern position can be selected from one of four corners, and the scale markers, alert info, and translucent of the audio meter pattern are selectable.

UMD and Text-Tally Display

TSL 3.1 / 4.0 Protocol

S-1093H supports UMD and Text-Tally display of TSL 3.1/4.0 protocol, with 1-126 TSL address selection, and Max 8 letters displayed. The UMD/TALLY signal inputs via RJ45(RS485) port on the rear panel of the monitor.

USB Firmware Upgrade

The monitor provides a standard USB port on the rear panel, for firmware upgrade. Users can download the latest firmware file to a USB stick, and directly insert into S-1093H monitor to upgrade, without PC connection.

Multiple Power Sources

AC adaptor / V-mount / Gold mount / Snap-on DV mount

The monitor provides a 4-pin XLR socket of DC 6.5-24V power input, and can be fixed on V-mount, Gold mount or DV battery plate.
Various types of DV battery plates are provided for optional, with snap-on designed, quick released and interchangeable with each other. There’re following DV plates for selection:

Model of Plates Compatible batteries
S-7004F SONY NP-F970/770, SWIT S-8972, S-8970
S-7004U SONY BP-U60/U30, SWIT S-8U63,S-8U93
S-7004D Panasonic D54/D28,VW-VBD58;SWIT S-8D62, S-8D58
S-7004B Panasonic VW-VBG6, SWIT S-8BG6
S-7004V JVC BN-VF823, SWIT S-8823
S-7004i SSL-JVC50, SWIT S-8i50
S-7004C Canon BP-945/970G, SWIT S-8845, S-8945
S-7004E Canon LP-E6, SWIT S-8PE6


3-color TALLY Light

RJ45(RS485) input signal

There are front and rear TALLY lights of Red, Green and Yellow colors, and users can define the pins of RJ45 port to control the TALLY lights.

Sun Hood

For outdoor using, you can apply a sun hood on the monitor. The sun hood can be easily installed via the left and right screw threads, or directly by Velcro tapes.
The sun hood is provided in the monitor package.

Parametry

Parametry

Výrobce: Swit
Kategorie: Studiové monitory
OBSAH BALENÍ

Simple package includes:

  • 1x Battery plate (V-mount or Gold mount or snap-on DV mount optional)
  • 1x Cold shoe / Screw Articulating Arm trestle
  • 1x Sun hood
  • 1x 4-pin XLR power adaptor

SPECIFIKACE

Input Video Formats

S-1093H support the following input video formats:

Input Supported formats
CVBS PAL / NTSC
HDMI 480i/ 576i / 480p / 576p
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080psf (30 / 29.97 / 25 / 24 / 23.98)
SDI SMPTE 2048-2 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
2048×1080i (60 / 59.94 / 50)
SMPTE-425M 1080P (60 / 59.94 / 50)
SMPTE-274M 1080i (60 / 59.94 / 50)
1080p (30 / 29.97 / 25 / 24 / 23.98)
SMPTE-RP211 1080psf (30 / 29.97 / 25 / 24 / 23.98)
SMPTE-296M 720p (60 / 59.94 / 50)
SMPTE-125M 480i (59.94)
ITU-R BT.656 576i (50)
