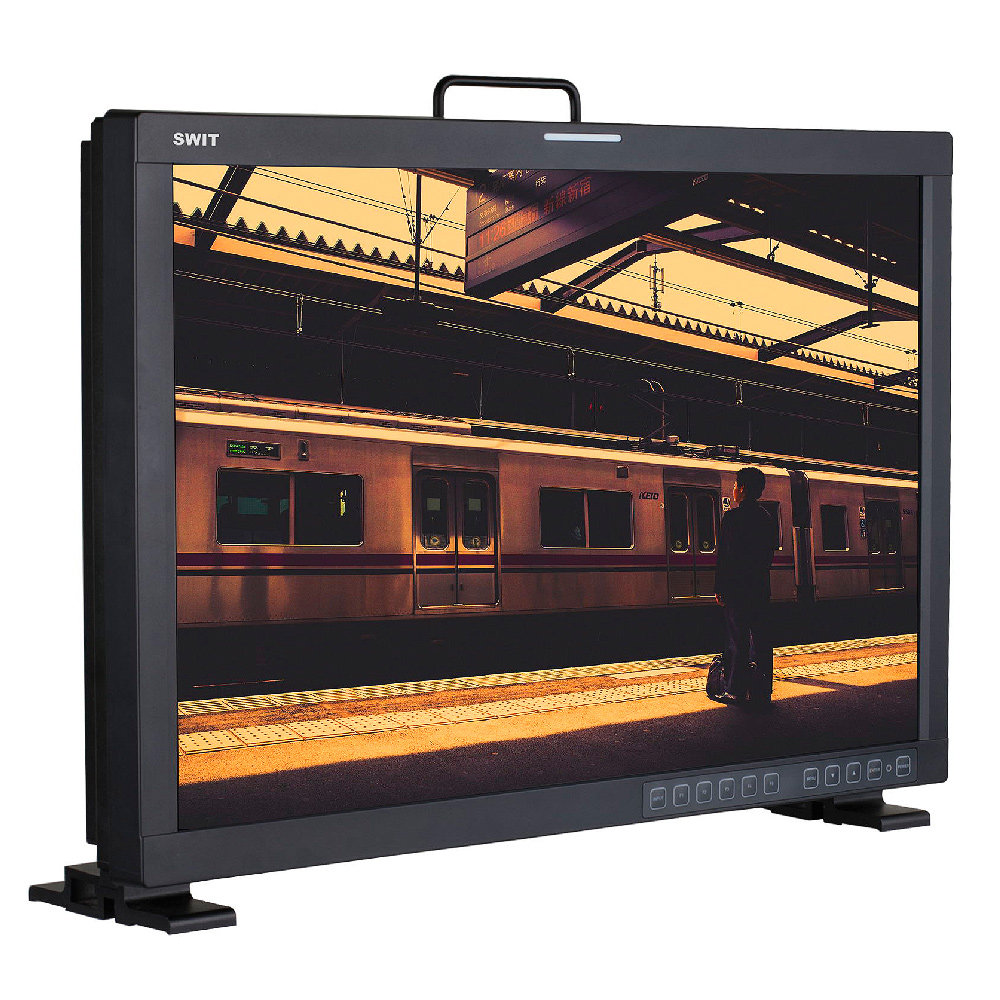

SWIT FM-24DCI monitor

SWIT FM-24DCI je 24” DCI-P produkčný monitor s 10-bit LCD panelom s rozlíšením 1920x1200 pixelov, interným 12-bit spracovaním a 100% pokrytím DCI-P3. Monitor obsahuje 3G/HD/SD-SDI a HDMI vstup a množstvo ďalších funkcií (Waveform, Vektoroskop, Histogram, 16-kanálový audio moniotring, zobrazenie časového kódu a pod.).

Více informací

78 620 Kč s DPH 64 975 Kč bez DPH
-+
Dostupnost
3-5 dnů
Výrobce
Doprava zdarma při nákupu tohoto produktu
Kód zboží:
FM-24DCI
Přidat do porovnání
Popis produktu

Popis produktu

SWIT FM-24DCI je 24” DCI-P produkčný monitor s 10-bit LCD panelom s rozlíšením 1920x1200 pixelov, interným 12-bit spracovaním a 100% pokrytím DCI-P3. Monitor obsahuje 3G/HD/SD-SDI a HDMI vstup a množstvo ďalších funkcií (Waveform, Vektoroskop, Histogram, 16-kanálový audio moniotring, zobrazenie časového kódu a pod.).

SWIT FM-24DCI je 24” DCI-P produkčný monitor s 10-bit LCD panelom s rozlíšením 1920x1200 pixelov, interným 12-bit spracovaním a 100% pokrytím DCI-P3. Monitor obsahuje 3G/HD/SD-SDI a HDMI vstup a množstvo ďalších funkcií (Waveform, Vektoroskop, Histogram, 16-kanálový audio moniotring, zobrazenie časového kódu a pod.).

Základné vlastnosti DCI monitora SWIT FM-24DCI:

  • 24-inch, 1920×1200, 10-bit LCD, 12-bit process, 100% DCI-P3
  • 3G/HD/SD-SDI, HDMI monitoring
  • Built-in multi cameras De-log LUTs and DIT LUTs upload by USB
  • SDI 1/2 Pic-in-Pic and Pic-by-Pic display
  • Waveform / Vector / Histogram / 16-ch Audio meters / Timecode
  • Peaking / Focus assist / Exposure assist / Zebra / Blue only
  • Anamorphic de-squeeze / Multiple markers

Input/Output Interfaces

  • 3G-SDI, HDMI
  • FM-24DCI monitor supports:
  • 3G/HD/SD-SDI input × 2
  • 3G/HD/SD-SDI loop output × 2
  • HDMI 1.3 input × 1
  • Ethernet RJ45 × 1
  • USB-A LUT/Firmware input × 2

SDI 1/2 PIP and PBP

FM-24DCI supports 2x SDI Pic-in-Pic or Pic-by-Pic display mode.
Under Pic-in-Pic mode, the sub input window can be set to bottom-left or bottom-right, and size adjustable.

Built-in De-log 3DLUTs

  • DIT user 3DLUT cube upload
  • FM-24DCI provides multiple De-log 3DLUTs to convert log mode to REC709 for all major cameras, includes.
  • ARRI LOG R709
  • RED RLF RG3
  • SONY SL2 LC709A
  • SONY SL3C L709A
  • Pana V-Log V709
  • Canon CinCL1 WDR
  • Canon CinCL2 WDR
  • BMD CC FILM V
  • BMD PC FILM V2
  • And supports 4x user 3DLUT cubes or calibrated 3DLUT cube uploaded by USB stick.

Closed Caption

  • FM-24DCI supports closed caption of 608(708), 608(ANC) and 608(VBI) standards.
  • 2 AUTO modes are provided for easy setup:
  • Auto1: Set to 608(VBI) for SD-SDI and 608(708) for HD-SDI;
  • Auto2: Set to 608(ANC) for SD-SDI and 608(708) for HD-SDI

Webserver IP Remote Control

FM-24DCI supports webserver remote control by Ethernet LAN connection. Use computer web browser to open the monitor control panel, and select input sources, adjust picture parameters, set up video / audio functions and assign function keys, etc, without install any APP.

Waveform / Vector scope

FM-24DCI supports Waveform (LUMA) and Vector scope (75% or 100%) display. The patterns can be switched on/off individually, display position (Left/Right) selectable.

Embedded audio monitoring

  • Up to 16-ch meters
  • The monitor can display 16-ch embedded audio meters.
  • The display mode can be:
  • 1. CH1-2
  • 2. CH1-16
  • 3. CH1-4 and CH5-8
  • 4. CH1-4 and CH9-12
  • 5. CH1-4 and CH13-16
  • 6. CH5-8 and CH9-12
  • 7. CH5-8 and CH13-16
  • 8. CH9-12 and CH13-16

Function Keys Assign

5 User Presets of Function Keys restore. There’re 5 F-keys to assign different functions, to quickly switch on/off the functions.

The available functions are:

Native Mute
Anamorphic Pic-by-Pic
Blue only Closed Caption
Mono Freeze
Marker Focus assist
Audio meter Zebra
Fast mode H Flip
Time code False color

Anamorphic de-squeeze

  • Enables de-squeeze the image from a camera utilizing anamorphic lens, Aspect Formats:
  • 16x9,
  • 4x3,
  • x1.3 Anamorphic De-Squeeze
  • x2.0 Anamorphic De-Squeeze
  • x2.0 MAG Anamorphic De-Squeeze

Power Input and Output

FM-24DCI provides a V-mount battery plate, and supports 12-17V 4-pin XLR input and 100-240V AC input.
FM-24DCI also provide 2x USB 5V/1A output and 1x 2-pin LEMO socket to output battery power.


Parametry

Parametry

Výrobce: Swit
Kategorie: Studiové monitory
OBSAH BALENÍ

Standard package includes:
1x Foldable sun hood
1x LCD protective glass
1x V-mount plate

Optional purchase:
Accessories hanger (TA-M10)

SPECIFIKACE

LCD Performance
Size 24 inches
Display area 518.4×324mm
Resolution 1920×1080
Aspect ratio 16:10
Brightness 250cd/m2
Contrast 1000:1
Color 1.073G colors, 10 bit
Viewing Angle Horizontal: 178°; Vertical: 178°
Input
BNC ×2 3G/HD/SD-SDI input
HDMI ×1 HDMI 1.3 input
RJ45 ×1 10M/100M Ethernet input
Output
BNC ×2 3G/HD/SD-SDI loop output
USB ×2 5V / 1A power output
2-pin LEMO ×1 Battery power output
Video Format
SDI SMPTE-425M 1080p (60 / 59.94 / 50)
SMPTE-274M 1080i (60 / 59.94 / 50)
1080p (30 / 29.97 / 25 / 24 / 23.98)
SMPTE-260M 1035i (60 / 59.94)
SMPTE-RP211 1080psf (30 / 29.97 / 25 / 24 / 23.98)
SMPTE-296M 720p (60 / 59.94 / 50)
SMPTE-125M 480i (59.94)
ITU-R BT.656 576i (50)
HDMI 480i/ 576i / 480p / 576p
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
General
Input voltage DC 12V-17V 5A, AC 100-240V, 50/60Hz
Power consumption 100W
Working temperature 0°C~+50°C
Working humidity 10%~90%
Storage temperature -15°C~+60°C
Storage humidity 10%~90%
Dimensions 569.9×380.7×90.5mm
Net weight (main body) 9.05kg
