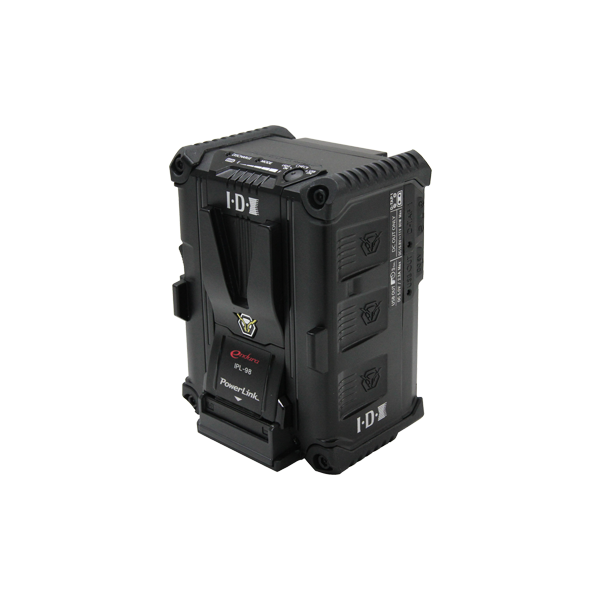

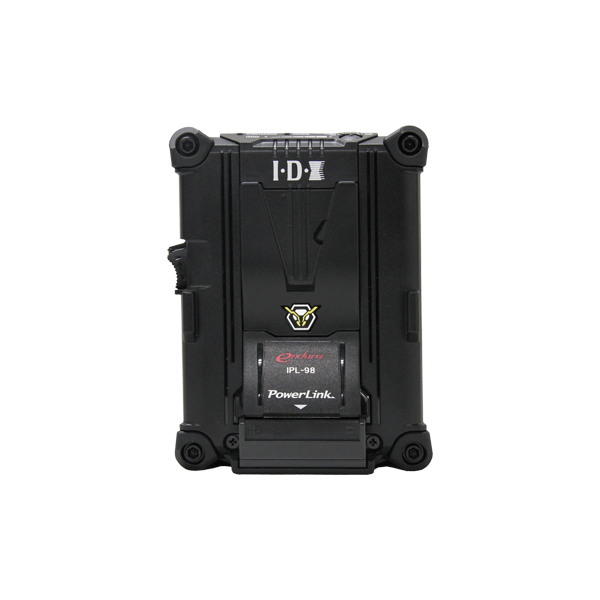

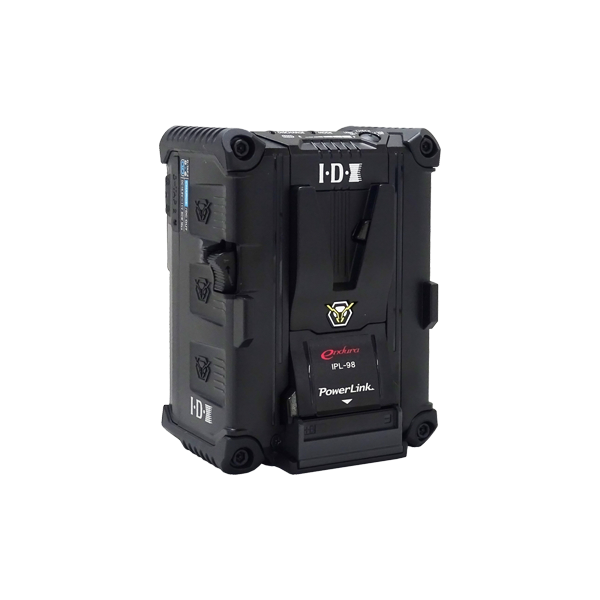

IDX IPL-98 stohovateľná V-Mount batéria

IDX IPL-98 je stohovateľná batéria pre kamery s uchytením v-mount. PowerLink technológia umožňuje spojiť až štyri batérie. Batérie IDX IPL disponujú dvomi 80W D-Tap a jedným USB výstupom.

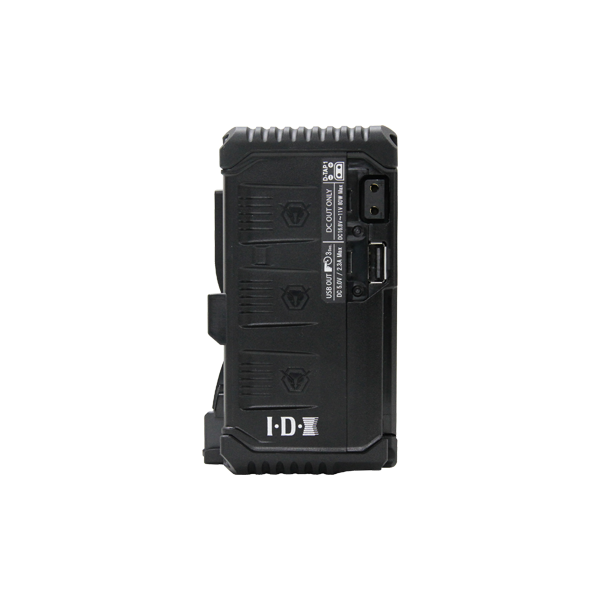

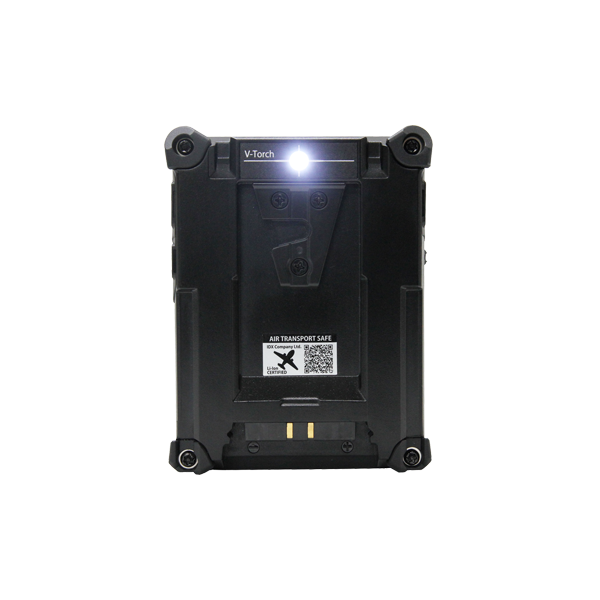

The IPL Series PowerLink batteries are the newest stackable v-mount solutions for digital cinema cameras where infinite runtimes are required. Up to four can be linked together with hot swap capability. With 96Wh & 143Wh capacities, the IPL-98 & IPL-150 are both high-load batteries that meet the passenger aircraft carry-on limit. The IPL Series also includes two 80W D-Taps and one USB output to power additional items. Equipped with a V-Torch LED light, this standard feature makes the IPL batteries easy to mount in dark environments. Accurate power levels are displayed in 10% increments via a 5 LED power indicator.

POWERLINK

Like the popular E-HL9, the IPL Series batteries can be linked and used as a larger capacity battery. PowerLink allows up to four IPL-98/ IPL-150 batteries to be linked via V-Mount. This feature also allows the last battery linked to be another IDX brand V-Mount battery, which is convenient for those who already own our products.

CAPACITY

With the ability to mount multiple batteries, users can create a customizable capacity fitted to their needs. With the right battery combination, it is possible to get up to 715Wh! Power is drawn from the last battery mounted allowing for 24-hour filming through convenient hot swapping.

CHARGING

The PowerLink technology also allows up to four IDX batteries to be stacked and will charge two batteries simultaneously with the VL-2000S dual charger. Charging will commence with the furthest battery from each port.

• IDX IPL-98 batéria
• Warranty Card

• Kapacita batérie: 96Wh (14.4V/ 6.6Ah)
• Max. výstupné napätie: 16.8V DC
• Menovité napätie: 14.4V DC
• Maximálny vybíjací prúd: 10.5A (14A keď sú spojené dve a viac batérií)‡
• D-Tap: 80W
• USB: DC 5.0V / 2.3A
• Minimálne napätie: 11V
• Ochrany batérie: Prebitie, nadmerné vybitie, nadprúdová ochrana, tepelná ochrana
• Teplota okolia - nabíjanie: 0°C ~ 40°C (10°C ~ 30°C odporúčané)
• Teplota okolia - vybíjanie: -20°C ~ 45°C (10°C ~ 40°C odporúčané)
• Teplota okolia - skladovanie: -20°C ~ 50°C (menej než 1 mesiac)
• Rozmery: 89(šírka) x 119(výška) x 70(hĺbka)mm
• Hmotnosť: 745g
