Acme Video Solutions GO 4/4 Portable Live Production Solution is a complete portable live production studio with built-in 17.3" LCD. Mix HD video sources including mixed resolutions and framerates, along with embedded and separate analog audio. Stream output live to the Web in RTMP, WMA, Flash, and other widely supported formats.
Built-In Display
A built-in display allows for a compact, portable rig on-site with the ability to add one or two additional LCD displays via DVI, HDMI, or DisplayPort for Multiviewer and other application access.
I/O Cards

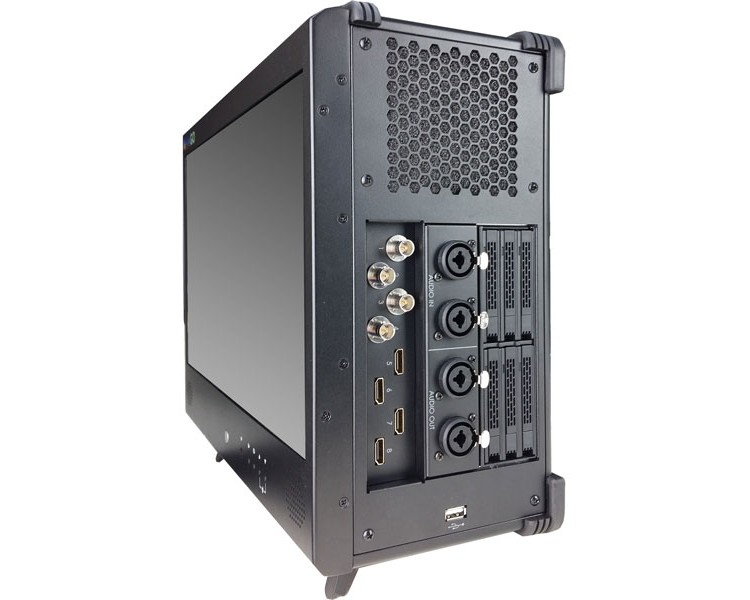

The Acme GO 4/4K is equipped with four HD-SDI inputs (up to two of which can be used as outputs instead) on an AJA capture card and a single 4K-capable HDMI input on a Magewell capture card allowing up to five live sources. In addition to the 4K capabilities of the HDMI input, you can also group four SDI inputs together to provide another 4K input. Using two of the SDI ports as outputs, producers can send multiple high-resolution feeds. For example, a "dirty" version complete with overlays for broadcast, and a "clean" version for recording and reuse later. Alternatively, one output can be dedicated to connect a broadcast-grade preview monitor to supplement the GO's built-in screen.
Removable SSD Slots for ISO Recording
No heavy platter-based drives here; the GO 4/4K gives you four removable SSD storage slots enabling ISO recording of all inputs when fully populated—SSD drives are available separately. When you are finished, simply unplug the drives and easily move your footage to another machine for post-production or archiving.
Balanced XLR/TRS Audio I/O
A pair of balanced XLR/TRS combo jack inputs allow the switcher to bring in additional audio from professional sources, on top of up to 16 channels of embedded SDI audio. These inputs are accompanied by two XLR outputs for local monitoring. There is also an unbalanced 3.5mm audio input, and you can add external USB audio interfaces to increase the total number and type of available inputs.
CPU | Intel i7 7700K |
GPU | Model: Nvidia GTX 1060 RAM: 6 GB |
Memory | 16 GB DDR4 |
System Drive | Primary: 250 GB SSD |
Media Storage | Not Included |
Size | 17.3" |
Brightness | 300 cd/m² |
Contrast Ratio | 400:1 |
Response Time | 8 ms |
Inputs | Video: 4 x HD-SDI on BNC with embedded audio 4 x HDMI with embedded audio Audio: 2 x balanced XLR/TRS combo jack 1 x 3.5 mm unbalanced stereo |
Outputs | Video: 2 x HD-SDI on BNC with up to 16-channel embedded audio GPU: 1 x HDMI 1 x DisplayPort Audio: 2 x XLR jack 1 x 3.5 mm unbalanced stereo |
Supported Resolutions | 4096 x 2160p: 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B 3840 x 2160p: 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B 1080p: 23.98, 24, 25, 29.97, 30 1080PsF: 23.98, 24, 25, 29.97, 30 1080i: 25, 29.97, 30 720p: 50, 50.94, 60 525i: 29.97 / 625i 25 |
Dimensions | 14.1 x 16.5 x 7" / 35.8 x 41.9 x 17.8 cm |
Weight | 22 lb / 10 kg |
